Altronix AL1024ULXB2 Power Supply

Your Price: $307.43

Retail Price:$428.10

Your Savings:$120.67(28%)

Power Supply Board, 24VAC, 40VA from UL Listed Class 2 Transformer, Single Output, 24VDC at 8A or 10A

Part Number : ALT_AL1024ULXB2

Availability: 192 In Stock

Quantity

Description

Altronix AL1024ULXB2 Power Supply

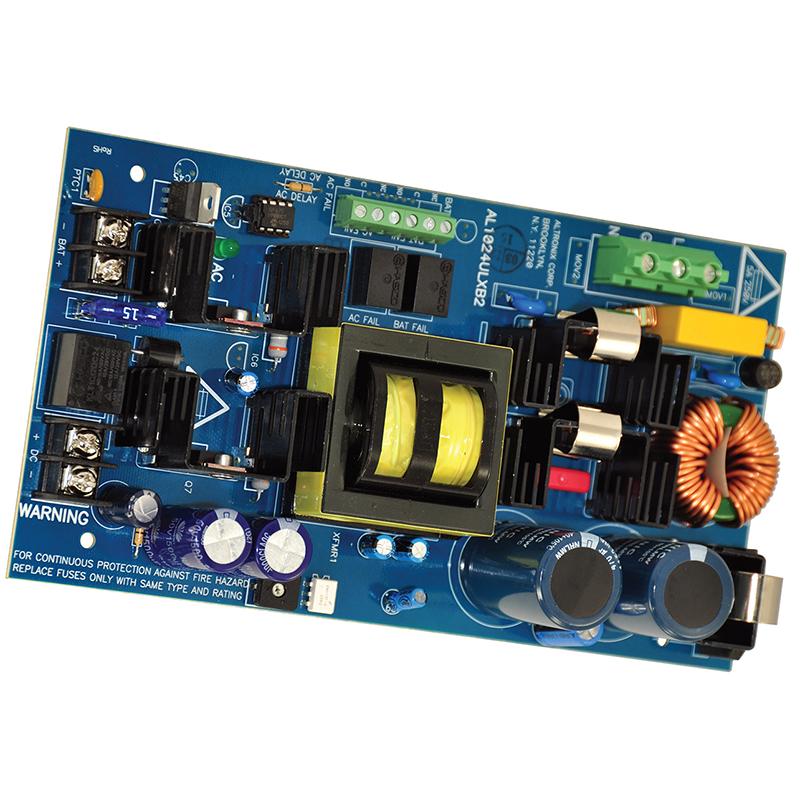

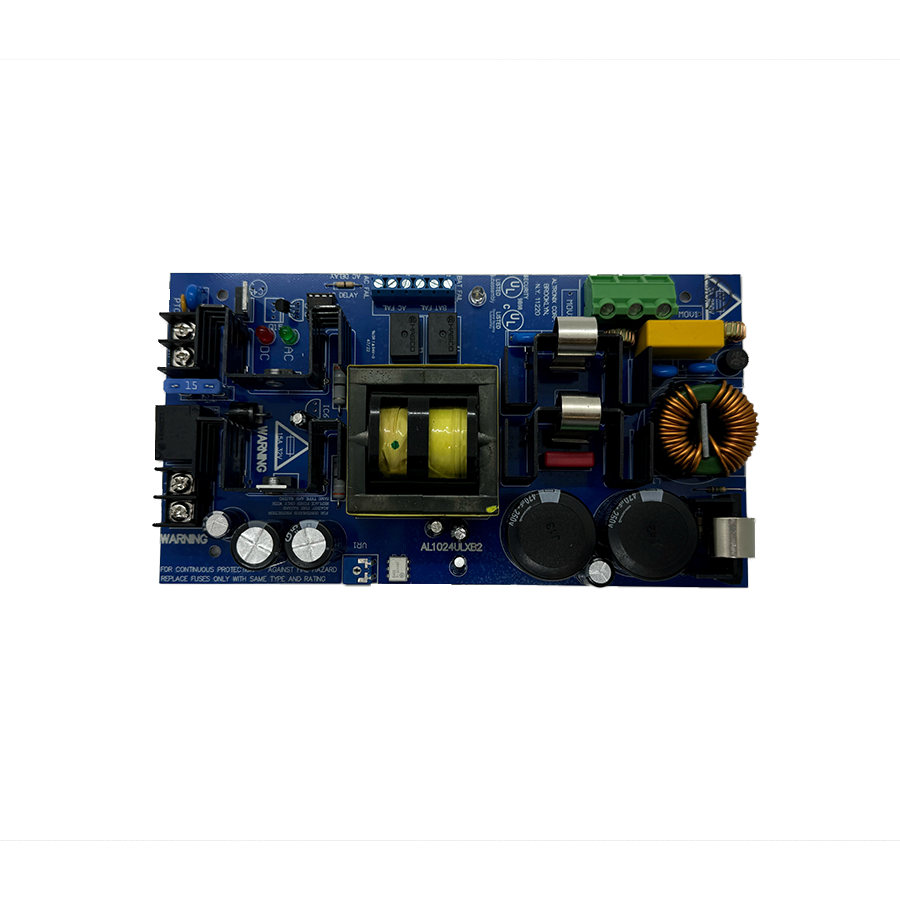

Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Features

Supervision:
Input: Input 115VAC / 60Hz, 4.2A.
Short circuit and thermal overload protection.
Low battery and battery presence supervision (form "C" contacts).
Relative Humidity 85% +/- 5%.
AC fail supervision (form "C" contacts).
24VDC output (UL 1481).
Battery Backup:
Filtered and electronically regulated output.
Maximum charge current 3.6A.
Operating: 0° C to 49° C (32° F to 120° F).
24VDC @ 10A (UL 294).
Automatic switch over to stand-by battery when AC fails.
Visual Indicators: AC input and DC output LED indicators.
Additional Features: Short circuit and thermal overload protection.
BTU/Hr (approx.): 123 BTU/Hr.
Zero voltage drop when switched over to battery backup.
Output:
8A continuous supply current with 10A supply current during alarm (UL 1481).
Maximum Ripple: 250mV P/P.
Electrical Temperature:
Storage: - 20° C to 70° C ( - 4° F to 158° F).
System AC input VA requirement: 483VA.
Built-in charger for sealed lead acid or gel type batteries.

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: AL1024ULXB2

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 10/8 AMPS

Output Volts: 24VDC

Pack Qty: 1

Purpose: General

Series: Altronix Power Supplies

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each
