Altronix AL168300CB Power Supply

Images may not represent actual product and finish

Your Price: $382.33

Retail Price:$509.78

Your Savings:$127.45(25%)

Power Supply, Input 115VAC 50/60Hz at 2.7A, 8 PTC Outputs, 16VAC at 18A, 18VAC at 16A,

Part Number

: ALT_AL168300CB

Availability: 4 In stock

Quantity

Description

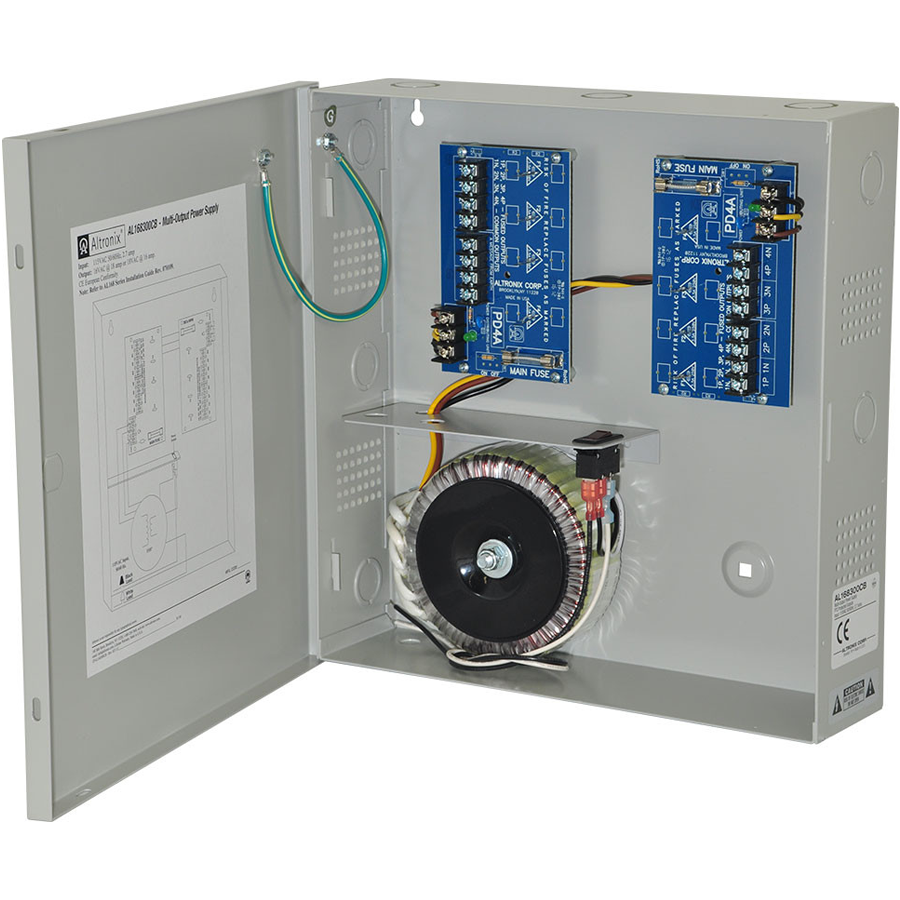

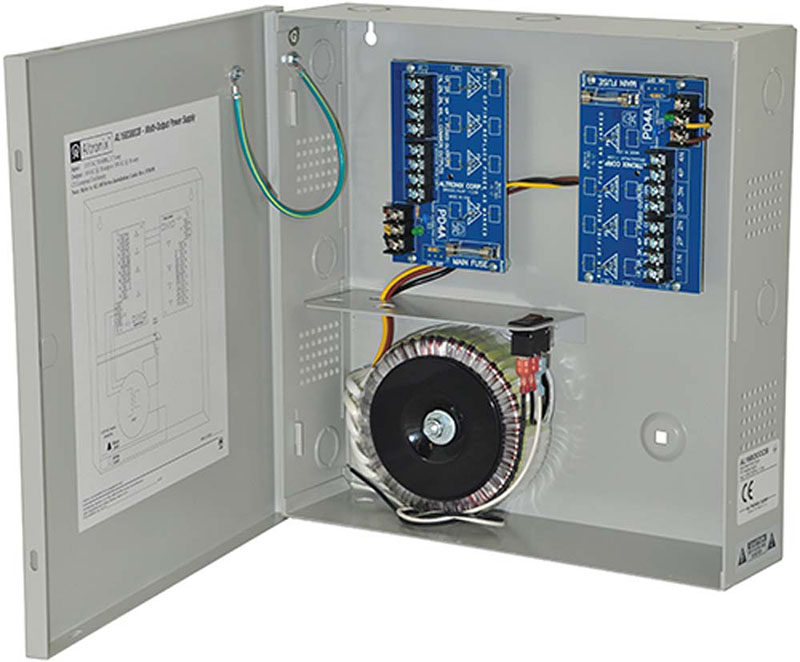

Altronix AL168300CB Power Supply

AL168300CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.

Features

Main fuse rated @ 15A/32V.
Relative Humidity 85% +/- 5%.
16VAC @ 18A (300VA) supply current (2.25A per device, 2.5A max.) or 18VAC @ 16A (300VA) supply current (2A per device, 2.5A max.).
Enclosure: Wall mount enclosure for indoor use. Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.
Outputs are rated @ 2.5A.
Operating: 0° C to 49° C (32° F to 120° F).
System AC input VA requirement: 310.5VA.
16VAC or 18VAC output.
Temperature:
Output:
Input: Input 115VAC, 50/60Hz, 2.7A.
Eight (8) auto-resettable PTC protected outputs.
BTU/Hr. (approx.): 147 BTU/Hr.
Weights (approximate): Product Weight: 16.9 Lbs. (7.665 kg)
Features: Illuminated master power disconnect circuit breaker with manual reset.
Visual Indicators: AC power LED indicators.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Surge suppression.

Attributes

Ship via: Can Ship UPS

Alternate Codes: AL168300CB

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Output Amps: 18/16 AMPS

Output Volts: 16/18VAC

Purpose: General

Series: Altronix Power Supplies

Subtype: Power Supply

Type: Wire-In Transformer

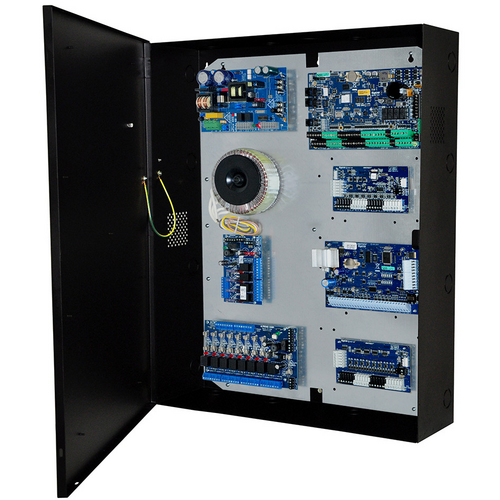

Altronix TROVE2KH2 Trove 2 Enclosure, 21.75"W x 27.25"H x 6.5"D, Cam Lock, Tamper Switch, 16 Gauge

$647.70

1 In stock

Buy

Securitron AQD2B Board Only 12/24vdc 2a Power Supply

$151.05

7 In stock

Buy

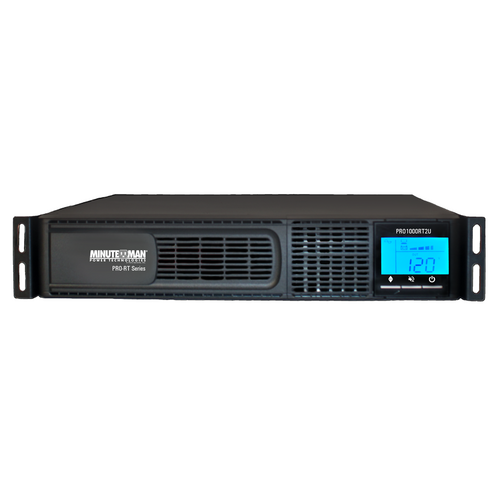

Minuteman PRO1000RT2U 1000/700VA/Watts Power Supply

$505.38

3 In stock

Buy

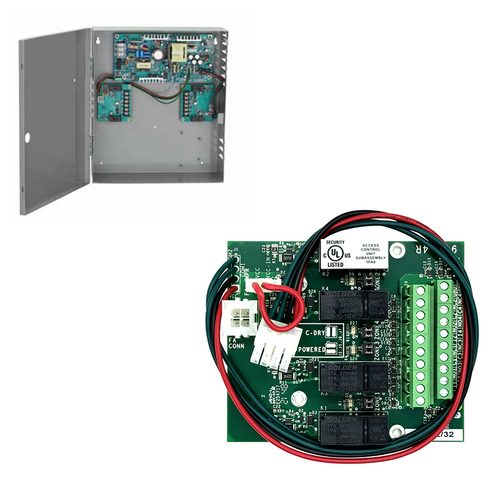

Von Duprin PS914-4R 4 Amp Power Supply High Inrush with 4R Controlled Relay
