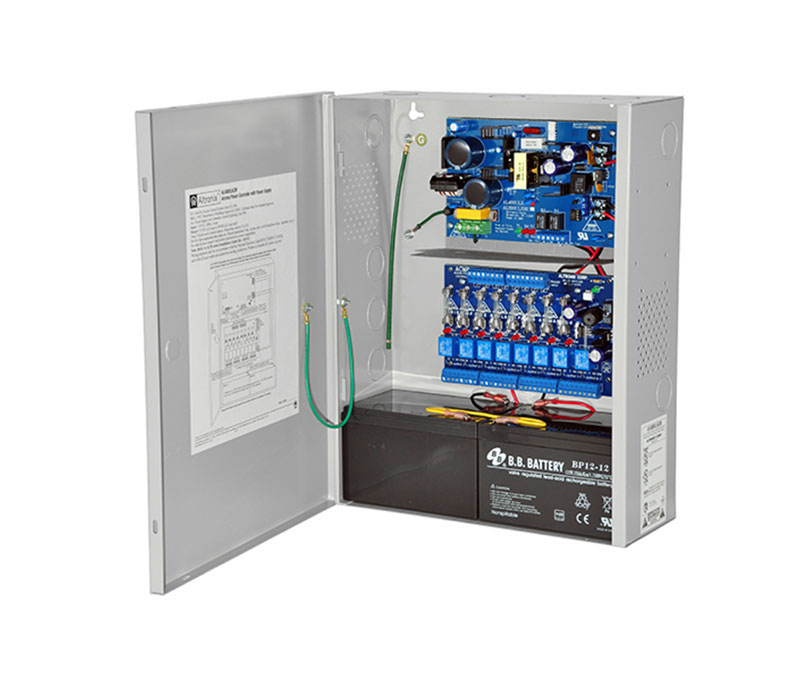

Altronix AL400ACM220 Power Supply Charger

Altronix AL400ACM220 Power Supply / Charger offers a robust solution for powering various access control hardware devices. Designed to convert a nominal 220VAC 50/60Hz input into eight independently controlled outputs, this unit delivers either 12VDC at 4A or 24VDC at 3A, ensuring reliable performance for your security systems. Equipped with fail-safe and fail-secure modes, it can easily support mag locks, electric strikes, and magnetic door holders. The AL400ACM220 features outputs that can be activated through an open collector sink or a normally open (NO) dry trigger input, making it versatile for integration with access control systems, card readers, keypads, and more. This power supply can be powered by either a single common power source or two independent sources, providing flexibility for various installation scenarios. Additionally, the unit includes a Fire Alarm Control Panel (FACP) interface for emergency egress and alarm monitoring, along with a fire alarm disconnect feature that can be individually selected for each output. Ideal for general use, CCTV, fire alarm systems, and POIP applications, the Altronix AL400ACM220 is a reliable choice for commercial installations, enhancing overall system performance and efficiency.

Power Supply / Charger

Power Supply/Access Power Controller, Input 220VAC 50/60Hz at 0.8A, 8 Fused Outputs, 12VDC at 4A or 24VDC at 3A

AL400ACM220 converts a nominal 220VAC 50/60Hz input into eight independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A. @ 12VDC or 3A. @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
