Altronix AL400ULACMCB Power Supply

Your Price: $407.61

Retail Price:$567.61

Your Savings:$160.000(28%)

Power Supply/Access Power Controller, Input 115VAC 60Hz at 3.5A, 8 PTC Outputs, 12VDC at 4A or 24VDC at 3AGrey Enclosure

Part Number : ALT_AL400ULACMCB

Availability: 209 In Stock

Quantity

Description

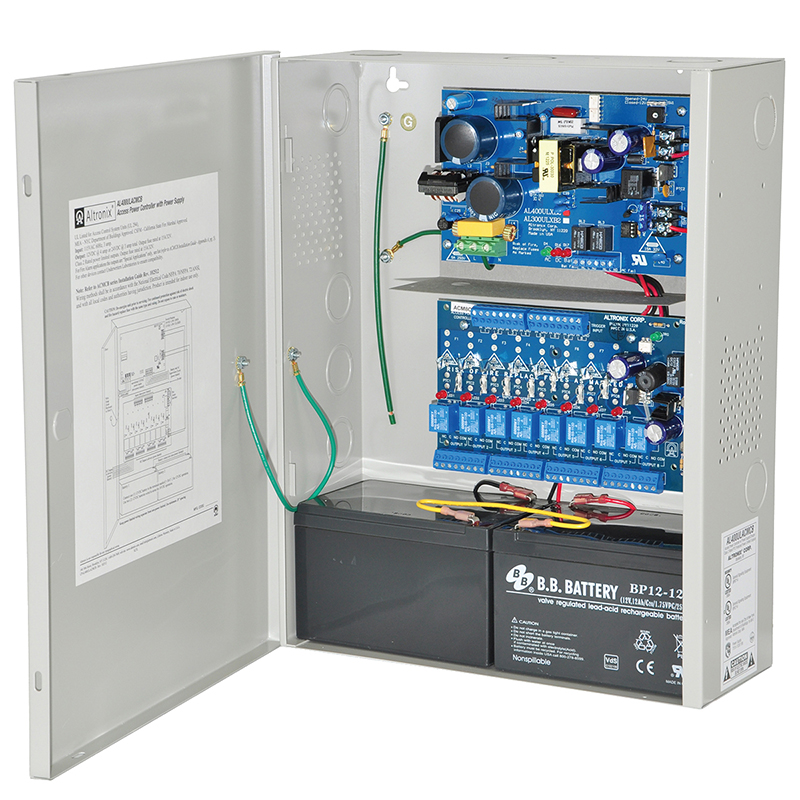

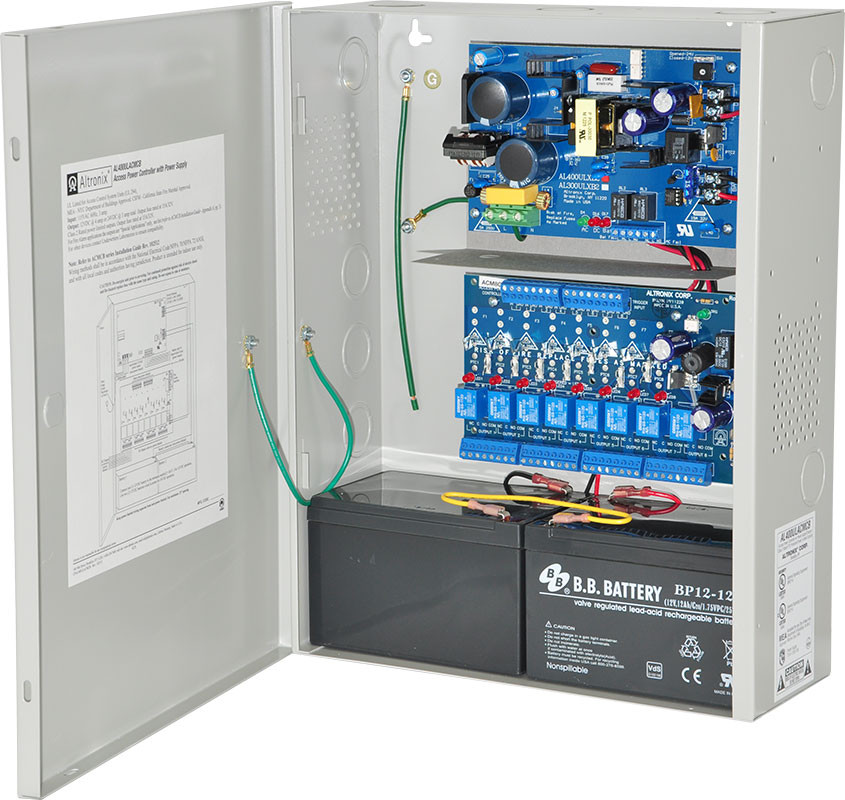

Altronix AL400ULACMCB Power Supply

Altronix AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A. @ 12VDC or 3A. @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both FailSafe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Attributes

Alternate Codes: AL400ULACMCB

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 4/3AMPS

Output Volts: 12/24 VDC

Pack Qty: 1

Purpose: Access Control

Series: Altronix Power Supplies

Ship Weight: 11.5 lbs.

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each
