Altronix AL400ULM Power Supply

Your Price: $328.11

Retail Price:$440.30

Your Savings:$112.19(25%)

Power Supply with Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12VDC at 4A or 24VDC at 3AGrey Enclosure

Part Number : ALT_AL400ULM

Availability: 122 In Stock

Quantity

Description

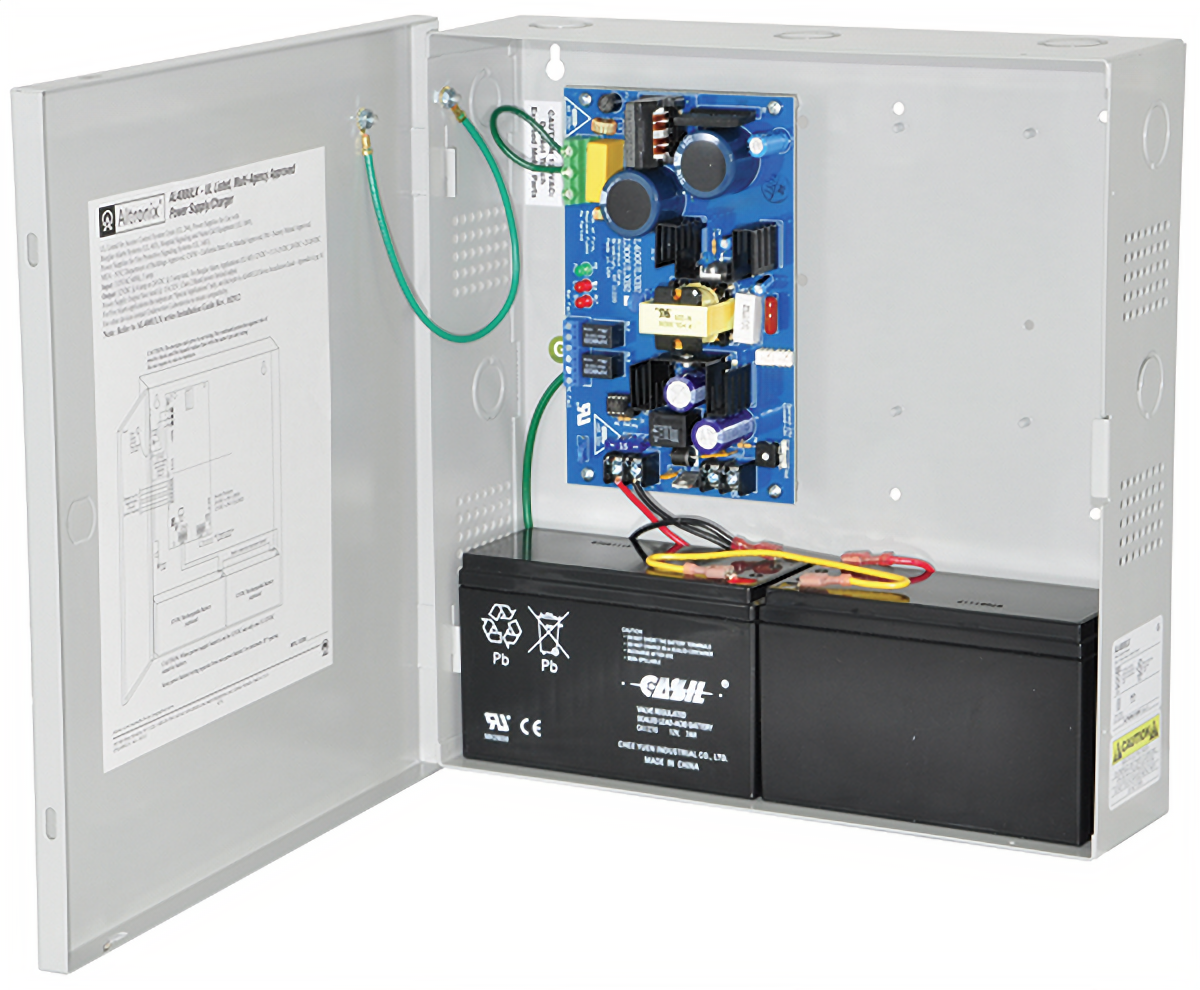

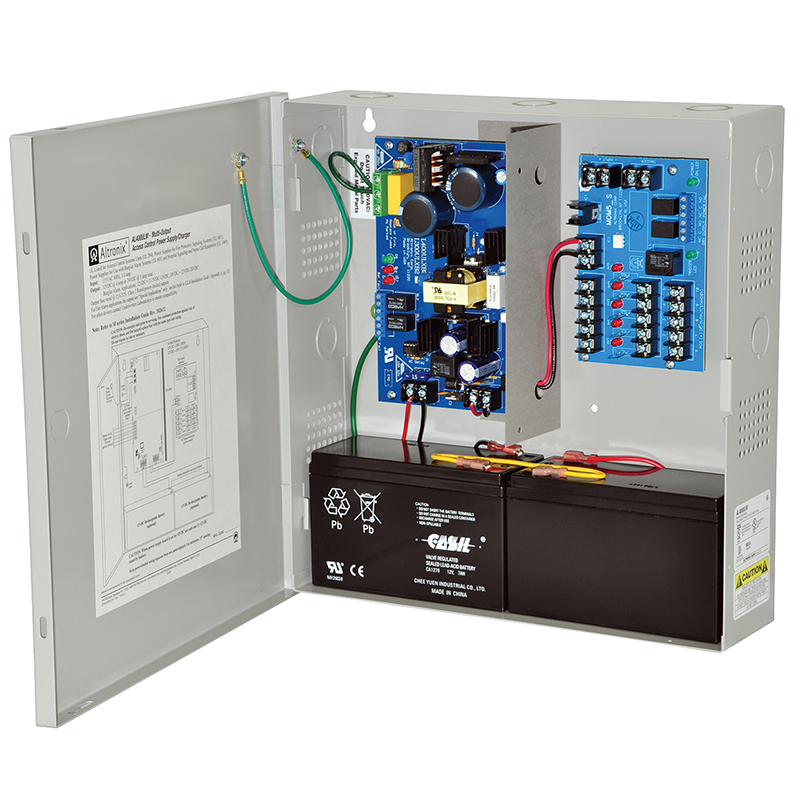

Altronix AL400ULM Power Supply

AL400ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC / 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.)supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

Fire Alarm Panel or Access Control System trigger inputs. [NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP).
[NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP).
Five (5) individual power-limited Class 2 outputs (auto-resettable).
Filtered and electronically regulated outputs.
Thermal and short circuit protection with auto reset.
Overload protection.
Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
Supervision:
AC Fail
Battery Fail and Battery Presence
Built-in charger for sealed lead acid or gel type batteries
Instantaneous transfer to stand-by batteries
Power and input trigger LEDs.
DC output LED indicator.
LEDs indicate condition of power outputs.
UL Listed in the U.S. and Canada.
CSFM Approved.
Lifetime Warranty / Made in the U.S.A.
All units are available in grey or red enclosure.

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: AL400ULM

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 4/3AMPS

Output Volts: 12/24 VDC

Pack Qty: 1

Purpose: Fire Alarm

Series: Altronix Power Supplies

Ship Weight: 9.3 lbs.

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each
