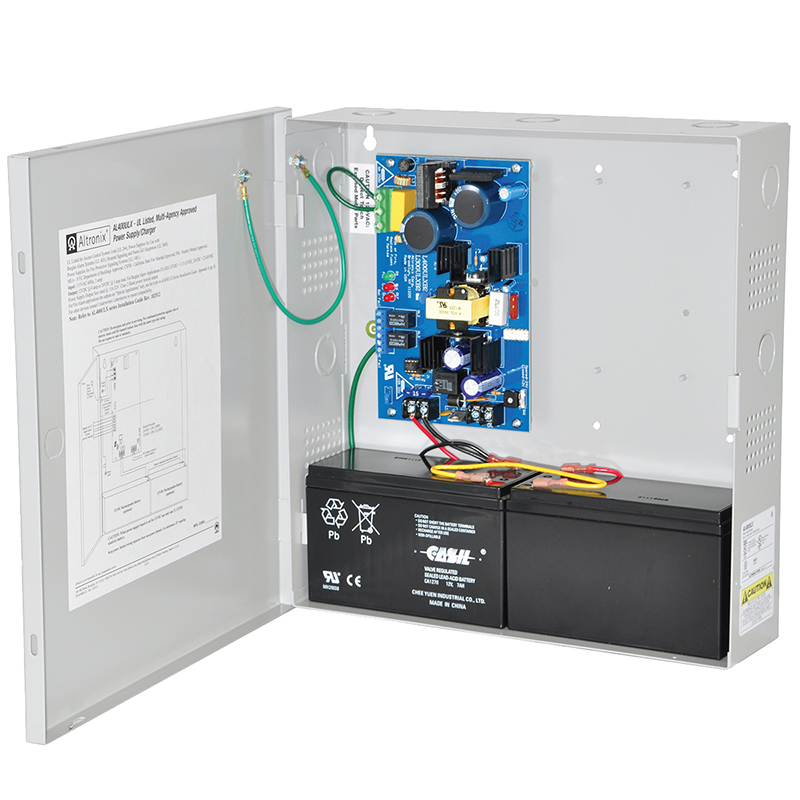

Altronix AL400ULX Power Supply
Images may not represent actual product and finish

Altronix AL400ULX Power Supply

Your Price: $290.25
Retail Price:$377.94
Your Savings:$87.69(23%)
Power Supply/Charger, Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure
Part Number : ALT_AL400ULX
Availability: 214 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Altronix AL400ULX Power Supply

12VDC 4A or 24VDC 3A supply current. Filtered and electronically regulated output(s). AC fail, low battery and battery presence monitoring.
  • Input:
  • Input 115VAC, 60Hz, 3.5 amp.
  • Input fuse rated @ 3.5 amp/250V.
  • Output:
  • 12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603):
  • 12VDC = 11.5VDC-13VDC.
  • 24VDC = 23VDC-26VDC.
  • 12VDC @ 4 amp or 24VDC @ 3 amp supply current.
  • Class 2 Rated power-limited output.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
  • Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Maximum charge current 0.7 amp.
  • Supervision:
  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).
  • Visual Indicators:
  • AC input and DC output LED indicators.
  • Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • BTU/Hr. :
  • 12VDC: 14.71 - 16.63 BTU/Hr.
  • 24VDC: 29.43 - 32.41 BTU/Hr.
  • System AC input VA requirement: 402.5VA.
  • Mechanical:
  • Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
  • Accommodates up to two (2) 12VDC/7AH batteries.
  • Product weight (approx.): 7.15 lbs. (3.24 kg).
  • Shipping weight (approx.): 8.05 lbs. (3.65 kg).

Features

  • Supervision:
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • 12VDC @ 4 amp or 24VDC @ 3 amp supply current.
  • Input:
  • 24VDC = 23VDC-26VDC.
  • BTU/Hr. :
  • Battery Backup:
  • System AC input VA requirement: 402.5VA.
  • Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
  • Battery presence supervision (form "C" contacts).
  • Visual Indicators:
  • 24VDC: 29.43 - 32.41 BTU/Hr.
  • Electrical:
  • Mechanical:
  • 12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603):
  • 12VDC = 11.5VDC-13VDC.
  • Product weight (approx.): 7.15 lbs. (3.24 kg).
  • Short circuit and thermal overload protection.
  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).
  • AC input and DC output LED indicators.
  • Accommodates up to two (2) 12VDC/7AH batteries.
  • 12VDC: 14.71 - 16.63 BTU/Hr.
  • Filtered and electronically regulated output.
  • Input 115VAC, 60Hz, 3.5 amp.
  • Automatic switch over to stand-by battery when AC fails.
  • Output:
  • Class 2 Rated power-limited output.
  • Shipping weight (approx.): 8.05 lbs. (3.65 kg).
  • Input fuse rated @ 3.5 amp/250V.
  • Operating temperature: 0° C to 49° C ambient.
  • Maximum charge current 0.7 amp.
  • Built-in charger for sealed lead acid or gel type batteries.

Attributes

Access Type: Power Supply

Alternate Codes: 125068, AL400ULX, PIB1240ULX

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 4/3AMPS

Output Volts: 12/24 VDC

Pack Qty: 1

Purpose: General

Series: Altronix Power Supplies

Ship Weight: 8.4 lbs.

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each

Voltage/ Amp Rating: 12 - 24V DC
