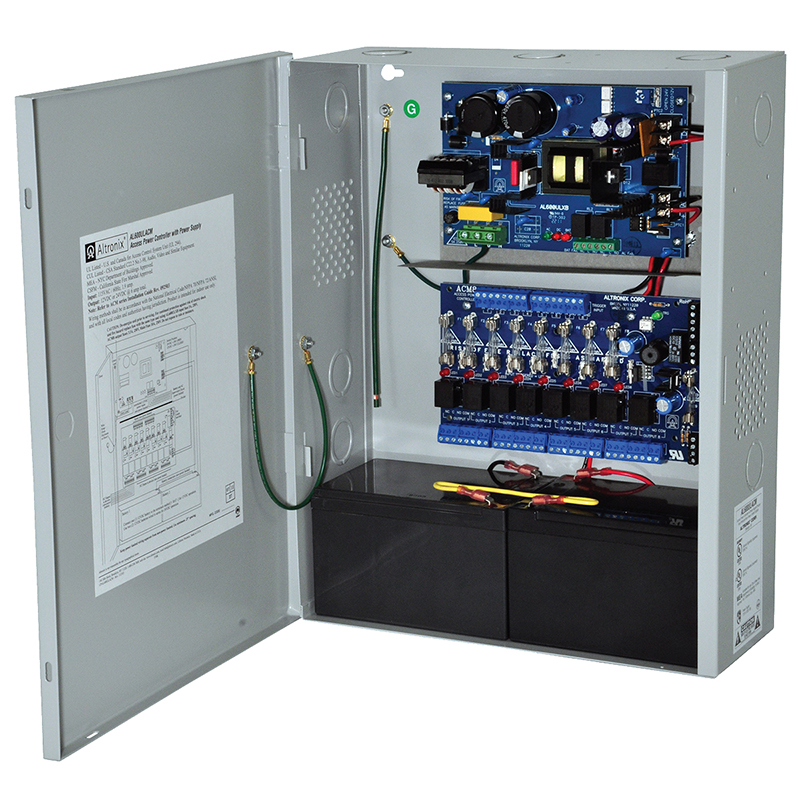

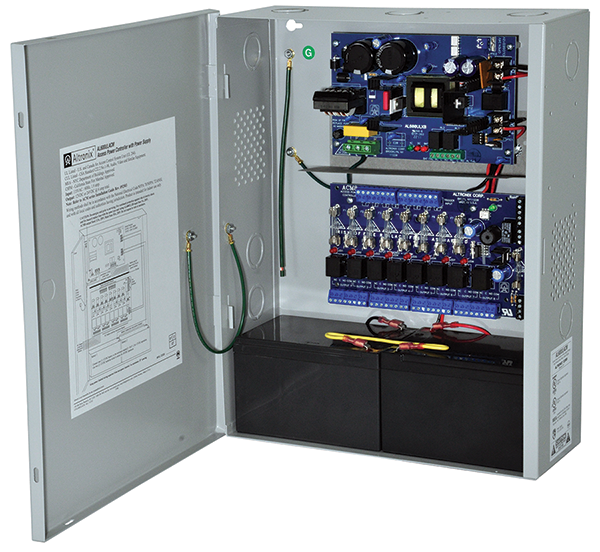

Altronix AL600ULACM Power Supply

• Input:
• Input 115VAC 60Hz rated@ 3.5 amp.
• Power supply input options:
• a) One (1) common power input for ACM8 and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10 amp total.
• Eight (8) Access Control System trigger inputs.
• Input options:
• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.
• Output:
• 12VDC or 24VDC @ 6 amp supply current.
• Eight (8) independently controlled outputs.
• Output options:
• a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
• b) Eight (8) form "C" 5 amp rated relay outputs
• Eight (8) auxiliary power outputs (unswitched)
• Output ratings:
• Fuses are rated @ 3.5 amp.
• Filtered and electronically regulated output (built-in power supply).
• Supervision:
• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contact).
• Features:
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1 amp 28VDC).
• Short circuit and thermal overload protection.
• Visual Indicators:
• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.
• Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Power Supply Board maximum charge current 0.7 amp.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
• Electrical:
• Operating temperature: 0° C to 49° C ambient.
• ACM8 board main fuse is rated at 10 amp.
• BTU/Hr.: 12VDC: 36.85 BTU/Hr. 24VDC: 73.70 BTU/Hr.
• 12VDC: 36.85 BTU/Hr.
• 24VDC: 73.70 BTU/Hr.
• Mechanical:
• Enclosure Dimensions (L x W x H approx.): 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm).
• Enclosure accommodates up to two (2) 12AH batteries.
• Product weight (approx.): 10.3 lbs. (4.67 kg).
• Shipping weight (approx.): 11.6 lbs. (5.26 kg).

Features

• Eight (8) form "C" 5 amp rated relay outputs
• Input:
• Battery Backup:
• Input 115VAC 60Hz rated@ 3.5 amp.
• Normally open (NO) or normally closed (NC) dry contact input.
• Fire Alarm disconnect input options:
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1 amp 28VDC).
• 12VDC or 24VDC @ 6 amp supply current.
• Eight (8) Fail-Safe and/or Fail-Secure power outputs.
• Visual Indicators:
• Eight (8) independently controlled outputs.
• Electrical:
• Fuses are rated @ 3.5 amp.
• Features:
• Eight (8) Access Control System trigger inputs.
• Power Supply Board maximum charge current 0.7 amp.
• AC input and DC output LED indicators.
• 24VDC: 73.70 BTU/Hr.
• Enclosure Dimensions (L x W x H approx.): 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm).
• Automatic switch over to stand-by battery when AC fails.
• Polarity reversal input from FACP signaling circuit.
• BTU/Hr.: 12VDC: 36.85 BTU/Hr. 24VDC: 73.70 BTU/Hr.
• Eight (8) normally open (NO) inputs.
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Output options:
• Eight (8) open collector inputs.
• ACM8 board main fuse is rated at 10 amp.
• Enclosure accommodates up to two (2) 12AH batteries.
• Eight (8) auxiliary power outputs (unswitched)
• Built-in charger for sealed lead acid or gel type batteries.
• Supervision:
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• 12VDC: 36.85 BTU/Hr.
• One (1) common power input for ACM8 and lock power (factory installed).
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
• Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10 amp total.
• Shipping weight (approx.): 11.6 lbs. (5.26 kg).
• Low battery and battery presence supervision (form "C" contact).
• Product weight (approx.): 10.3 lbs. (4.67 kg).
• Output ratings:
• Mechanical:
• Any combination of the above.
• Short circuit and thermal overload protection.
• AC fail supervision (form "C" contacts).
• Power supply input options:
• Red LEDs indicate outputs are triggered ACP disconnect is triggered.
• Filtered and electronically regulated output (built-in power supply).
• Output:
• Input options:
• Operating temperature: 0° C to 49° C ambient.
