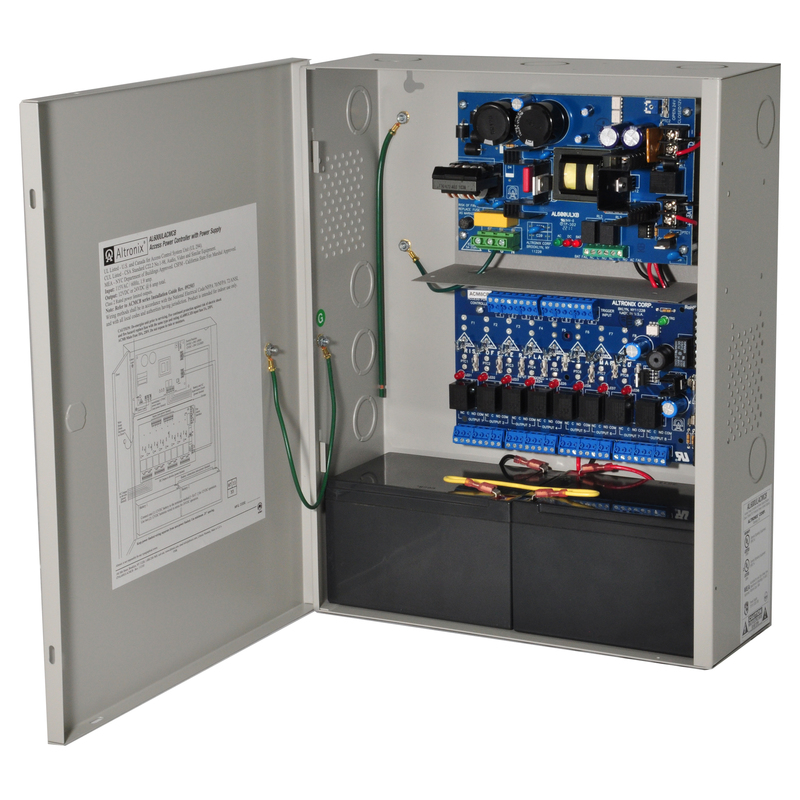

Altronix AL600ULACMCB Power Supply

Your Price: $484.17

Retail Price:$674.22

Your Savings:$190.05(28%)

Power Supply/Access Power Controller, Input 115VAC 60Hz at 3.5A, 8 PTC Outputs, 12/24VDC at 6A, Grey Enclosure

Part Number : ALT_AL600ULACMCB

Availability: 224 In Stock

Quantity

Description

Altronix AL600ULACMCB Power Supply

Altronix AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6A. continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs.
Eight (8) auxiliary power outputs (unswitched).
Output PTCs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Supervision:
AC Fail
Battery Fail and Battery Presence.
Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
Alarm output relay indicates that FACP input is triggered.
Fire Alarm disconnect input options:
Normally open (NO) or normally closed (NC) dry contact input
Polarity reversal input from FACP signaling circuit.
Built-in charger for sealed lead acid or gel type batteries.
Instantaneous transfer to stand-by batteries.
UL Listed in the U.S. and Canada.
Lifetime Warranty / Made in the U.S.A

Attributes

Manufacturer surcharge: $ 0.0

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 6 AMPS

Output Volts: 12/24 VDC

Pack Qty: 1

Purpose: Access Control

Series: Altronix Power Supplies

Ship Weight: 11 lbs.

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each
