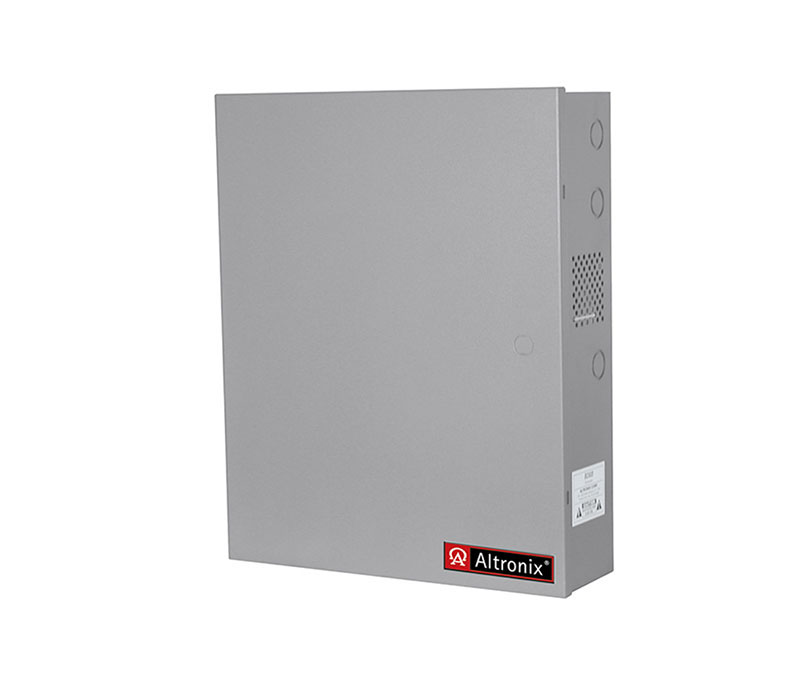

Altronix AL600ULACMCBJ Power Supply Charger Guide

Altronix AL600ULACMCBJ Power Supply / Charger delivers reliable and efficient power management for various access control applications. With a robust input of 115VAC at 60Hz and 3.5A, this power supply converts to eight independently controlled outputs, offering either 12VDC or 24VDC at a total of 6A continuous supply current. This flexibility ensures compatibility with a range of devices, including Mag Locks, Electric Strikes, and Magnetic Door Holders. Designed for versatility, the AL600ULACMCBJ allows outputs to operate in both Fail-Safe and Fail-Secure modes, catering to diverse security needs. Each output can be activated via an open collector sink or normally open (NO) dry trigger input from various devices, such as card readers and keypads. Additionally, the unit features a fire alarm disconnect option that can be individually selected for each output, ensuring safety and compliance during emergencies. Ideal for applications like CCTV, Fire Alarm systems, and Power Over Internet Protocol (POIP), this power supply is a cornerstone for any commercial security setup. With its capacity to support both board operation and locking devices from a single power source, or two independent sources, the Altronix AL600ULACMCBJ is engineered for top performance and efficiency in security management.

Power Supply / Charger

Power Supply/Access Power Controller, Input 115VAC 60Hz at 3.5A, 8 PTC Outputs, 12/24VDC at 6A,

Altronix AL600ULACMCBJ converts a 115VAC 60Hz input Into eight independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6A. continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock/accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
