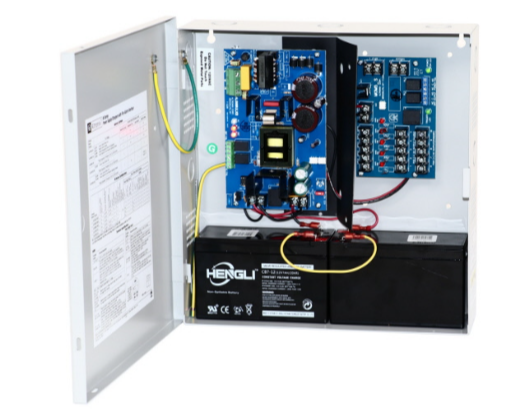

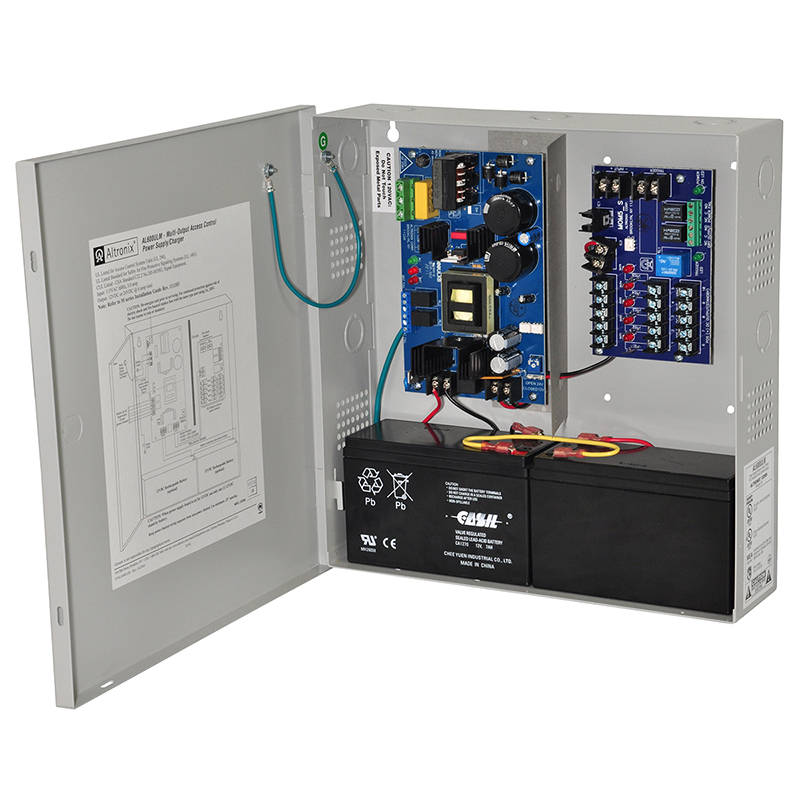

Altronix AL600ULM Power Supply Charger

Altronix AL600ULM Power Supply / Charger offers a reliable solution for access control systems and accessories. Designed to convert a 115VAC, 60Hz input into five individually protected Class 2 Rated power limited outputs, this power supply provides 12VDC or 24VDC at 6A, ensuring compatibility with a variety of devices, including Mag Locks, Electric Strikes, and Magnetic Door Holders. The AL600ULM features both Fail-Safe and Fail-Secure modes, allowing for versatile operation depending on your security needs. Its controlled trigger input can be managed through normally open (N.O.) or normally closed (N.C.) supervised inputs, or via polarity reversal from a Fire Alarm Control Panel (FACP). Additionally, a form "C" dry output relay facilitates HVAC shutdown, elevator recall, or triggering of auxiliary devices. This power supply is perfect for multiple applications, including CCTV, Fire Alarm systems, and POIP. Housed in a grey enclosure, it weighs 9.2 lbs and is suitable for commercial installations. Choose Altronix for innovative power solutions that maximize performance and efficiency across security systems.

Power Supply / Charger

Power Supply With Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12/24VDC at 6A, Grey Enclosure

AL600ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC, 60Hz input into five (5)individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
