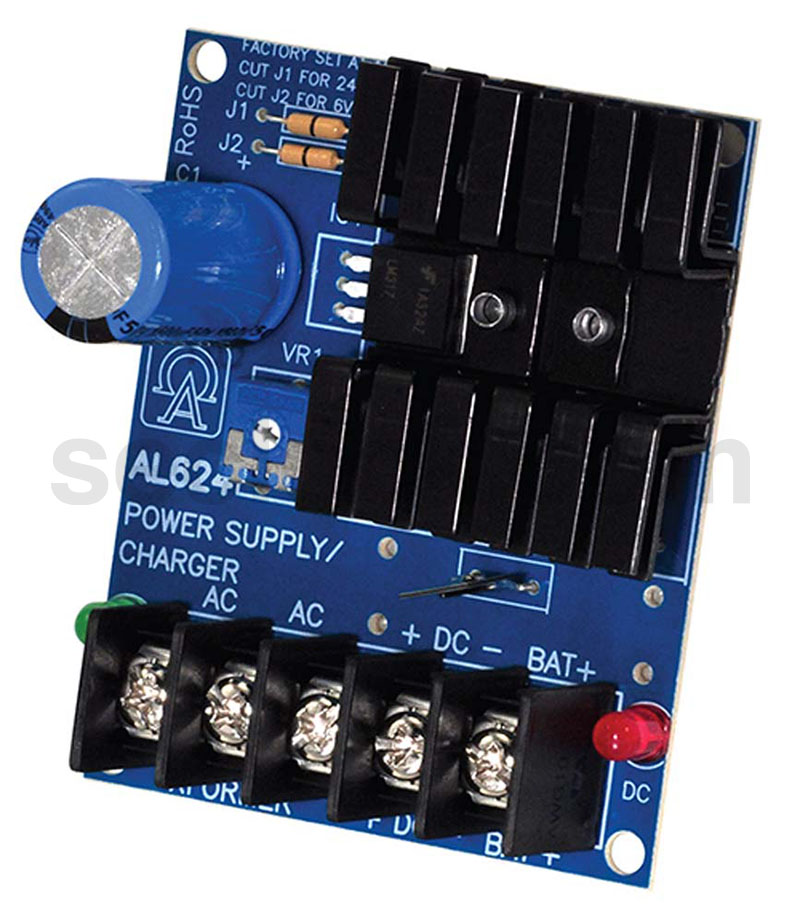

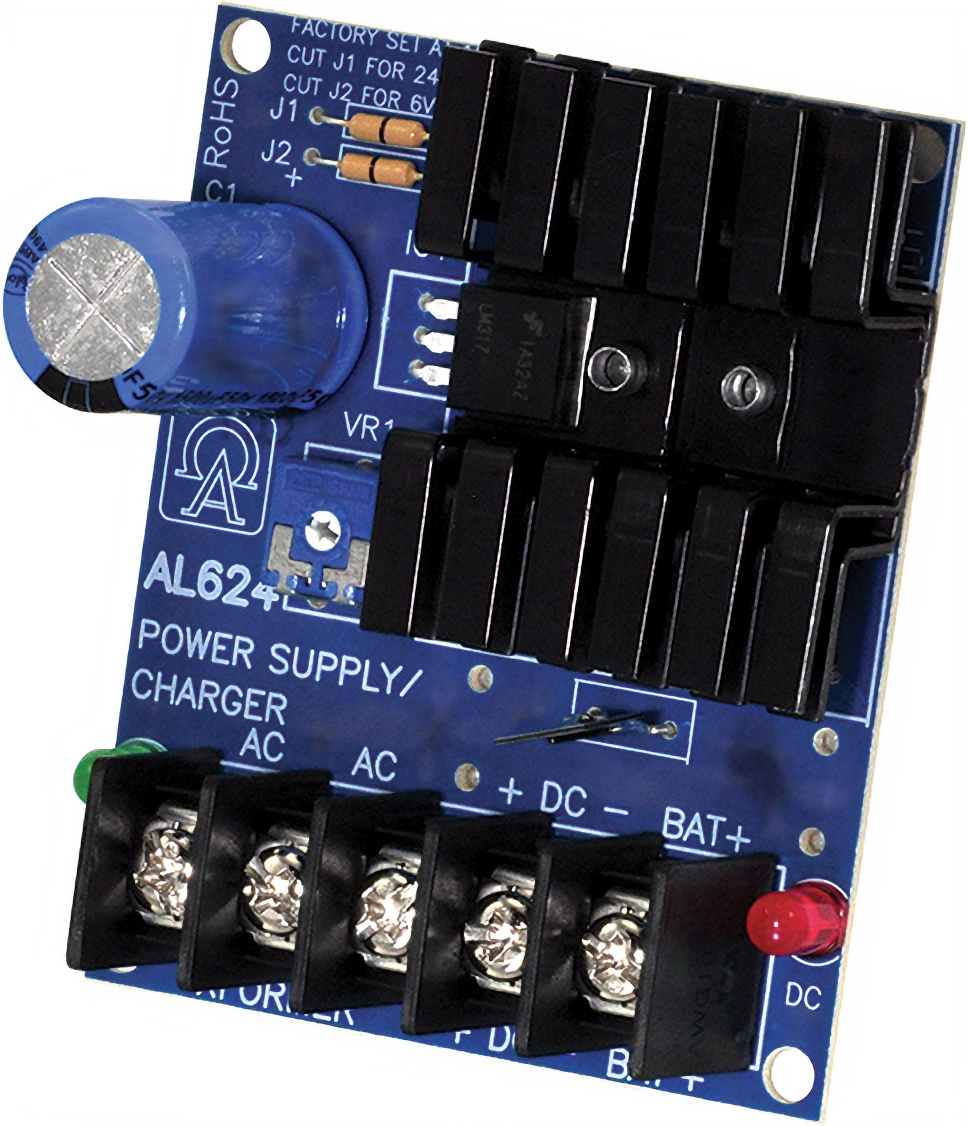

Altronix AL624 Power Supply

Your Price: $29.52

Retail Price:$38.44

Your Savings:$8.92(23%)

Linear Power Supply Board, Input 16VAC to 24VAC, 20VA to 40VA, Single Selectable Output, 6/12VDC at 1.2A or 24VDC at 0.75A

Part Number : ALT_AL624

Availability: 19 In Stock

Quantity

Description

Altronix AL624 Power Supply

Model AL624 power supply/charger converts a low voltage AC input to a 1.2A of continuous supply current 6VDC or 12VDC or .75A of continuous supply current 24VDC. Model DPS1 is a DIN Rail Mount version of this product.

Input: 16VAC to 24VAC, 20VA to 40VA (Transformer Selection Table).
16VAC to 24VAC, 20VA to 40VA (Transformer Selection Table).
Output: Switch selectable 6VDC-12VDC-24VDC. 6VDC or 12VDC @ 1.2 amp supply current or 24VDC @ 0.75 amp supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.
Switch selectable 6VDC-12VDC-24VDC.
6VDC or 12VDC @ 1.2 amp supply current or 24VDC @ 0.75 amp supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current 0.3 amp. PTC battery protection.
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current 0.3 amp.
PTC battery protection.
Visual Indicators: AC input and DC output LED indicators.
AC input and DC output LED indicators.

Attributes

Access Type: Power Supply

Alternate Codes: AL624

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Output Amps: 1.2/0.75 AMPS

Output Volts: 12/24 VDC

Purpose: General

Series: Altronix Power Supplies

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Linear

Voltage/ Amp Rating: 12 - 24V DC
