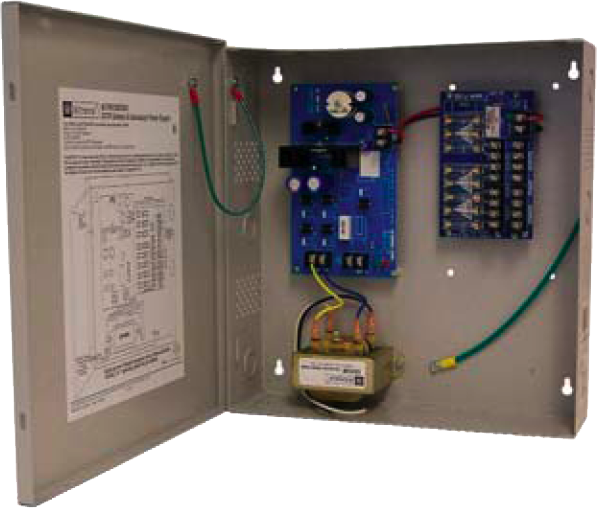

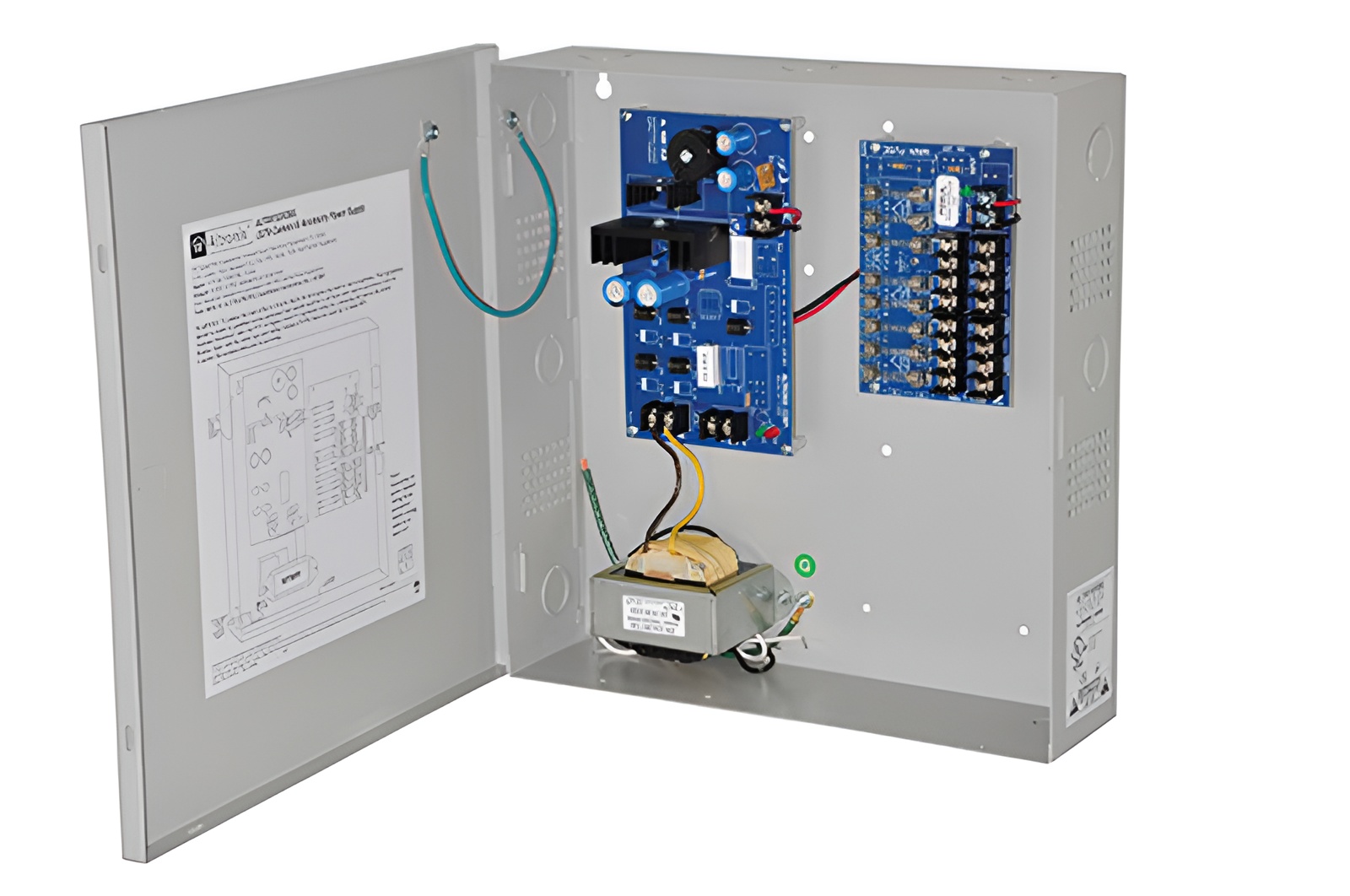

Altronix ALTV615DC8UL Power Supply

Your Price: $317.66

Retail Price:$413.61

Your Savings:$95.95(23%)

CCTV Power Supply, Input 115VAC 50/60Hz at 0.9A, 8 Class 2 PTC Protected Outputs, 6/15VDC at 4A, Grey Enclosure

Part Number : ALT_ALTV615DC8UL

Availability: 0 Ship time varies. We email you if your order is delayed.

Quantity

Description

Altronix ALTV615DC8UL Power Supply

6-15VDC 4A supply current. Eight (8) Class 2 Rated fuse protected power limited outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Input:
Input 115VAC, 50/60 Hz, 0.9 amp.
Output:
Eight (8) Class 2 Rated fuse protected power limited outputs.
6VDC to 15VDC field adjustable.
4 amp total continuous supply current (0.50 amp per device, 3.5 amp max.).
Output fuses are rated @ 3.5 amp/250VAC.
Filtered and electronically regulated outputs.
Electrical:
Operating temperature: 0° C to 49° C ambient.
12.28-30.71 BTU/Hr.
System AC input VA requirement: 103.5VA.
Features:
AC input and DC output LED indicators.
Power ON/OFF switch.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Mechanical:
NEMA1 enclosure.
Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
Product weight (approx.): 11.5 lbs. (5.22 kg).
Shipping weight (approx.): 12.0 lbs. (5.44 kg).

Features

6VDC to 15VDC field adjustable.
Shipping weight (approx.): 12.0 lbs. (5.44 kg).
Eight (8) Class 2 Rated fuse protected power limited outputs.
Input:
NEMA1 enclosure.
AC input and DC output LED indicators.
Ease of installation saves time and eliminates costly labor.
4 amp total continuous supply current (0.50 amp per device, 3.5 amp max.).
Product weight (approx.): 11.5 lbs. (5.22 kg).
Input 115VAC, 50/60 Hz, 0.9 amp.
Unit maintains camera synchronization.
Filtered and electronically regulated outputs.
Output fuses are rated @ 3.5 amp/250VAC.
12.28-30.71 BTU/Hr.
Spare fuse(s) provided.
Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
Output:
Electrical:
Power ON/OFF switch.
Mechanical:
Operating temperature: 0° C to 49° C ambient.
System AC input VA requirement: 103.5VA.
Features:

Attributes

Access Type: Power Supply

Alternate Codes: 137434, ALTV129DC, ALTV615DC8UL

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Power Supplies, CCTV Products, Power Supplies, Wire & Power Supplies

Output Amps: 4 AMPS

Output Volts: 6/15VDC

Purpose: CCTV

Series: Altronix Power Supplies

Subtype: Power Supply

Type: Wire-In Transformer

Voltage/ Amp Rating: 6 - 15V DC
