Altronix EBRIDGE100RMT Ethernet over Coax Adapter

Altronix EBRIDGE100RMT Ethernet Over Coax Adapter is designed to enhance your network capabilities by seamlessly transmitting full duplex data at speeds of up to 100 Mbps. This versatile adapter supports power over coax (PoE) over distances of 304 meters, or extends connectivity through CAT5e cable up to an impressive 500 meters without the need for repeaters. The EBRIDGE100RMT kit includes an eBridge100RM receiver and an eBridge100TM transceiver, providing a reliable solution for connecting IP cameras or edge devices to your network. This adapter kit is powered by virtually any midspan or endspan, making it highly adaptable for various commercial applications. When paired with an Altronix NetWay8M/16M Midspan, users can take advantage of remote management functions, allowing for edge device resets, real-time current draw monitoring, and port status checks. Compatible with a range of camera resolutions-including Megapixel, HD720, HD1080, and VGA-this adapter ensures that your surveillance system operates efficiently and effectively. The EBRIDGE100RMT is an essential component for any commercial installation, providing both power and data transmission in one robust solution.

Ethernet Over Coax Adapter

Ethernet over Coax/Cat5e Adapters kit, Powered by Midspan or Endspan, Throughput is Rated to Pass 100mbps of Data

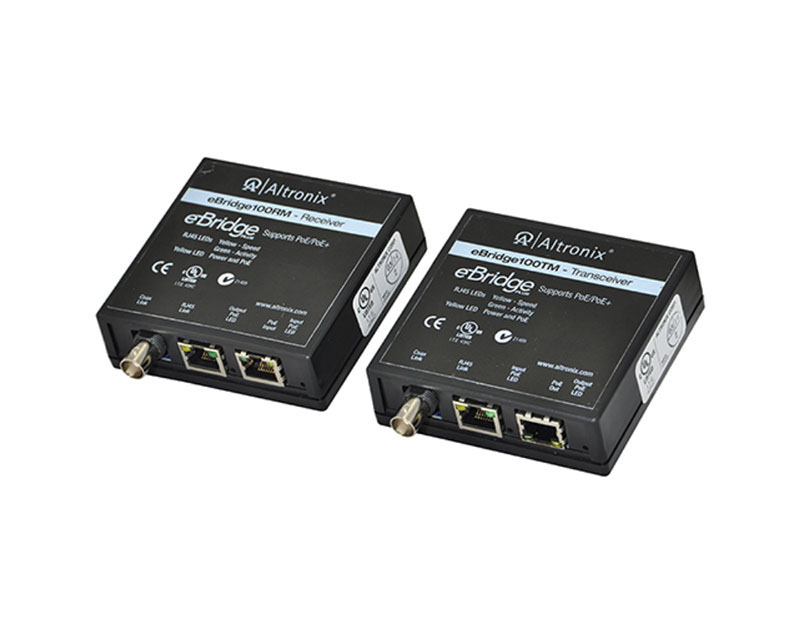

eBridge100RMT Ethernet over Coax/CAT5e Adapter Kits transmit full duplex data at 100mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, is powered by virtually any midspan or endspan. Remote management functions such as edge device reset, monitoring real-time current draw and port status are possible when coupled with an Altronix NetWay8M/16M Midspan. eBridge100RMT is compatible with Megapixel, HD720, HD1080 and VGA cameras.
