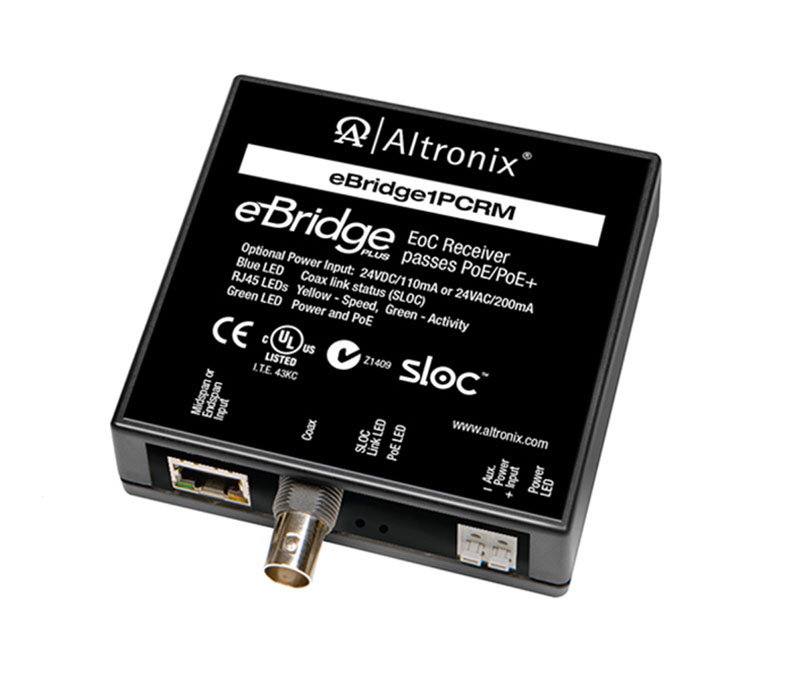

Altronix EBRIDGE1PCRM Ethernet over Coax Adapter

Altronix EBRIDGE1PCRM Ethernet Over Coax Adapter offers a seamless solution for transmitting IP and PoE+ over coax cable, ensuring that your network upgrades are both efficient and cost-effective. This single port EoC Receiver can handle inputs of 24VDC/110mA or 24VAC/200mA, allowing for versatile installation options. Designed to facilitate the transition from analog to IP systems, the eBridge1PCRM eliminates the need for new network cabling by utilizing existing legacy coax. It efficiently passes PoE/PoE+ power to compatible transceivers, such as the eBridge1PCT, eBridge1PCTX, or eBridge1ST, which then deliver the necessary power to edge devices or cameras. Notably, this adapter supports data transmission over coax up to an impressive distance of 500 meters, compared to the 100 meters typically associated with standard Ethernet (CAT5e). With a maximum range of 657 meters from the head end to the edge device, factoring in structured cable runs, the eBridge1PCRM is a robust choice for commercial applications. This plug-and-play unit simplifies installation while ensuring reliable power and data delivery, making it an essential component for any modern security or networking setup.

Ethernet Over Coax Adapter

IP and PoE+ over Coax Receiver, Input 24VDC/110mA or 24VAC/200mA, Distance: Up to 100m

eBridge1PCRM is a single port EoC Receiver which transmits data and passes power over coax cable. eBridge1PCRM passes PoE/PoE+ up the coax to an eBridge1PCT, eBridge1PCTX or eBridge1ST transceiver. The transceiver, in turn, delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from head end to the edge device/camera is 657m taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.
