Altronix EBRIDGE1PCRT Ethernet over Coax Adapter

Altronix EBRIDGE1PCRT Ethernet Over Coax Adapter provides a robust solution for transmitting IP and PoE signals over existing coaxial cabling. This kit includes the eBridge1PCR receiver and the eBridge1PCT hardened transceiver, allowing for efficient data and power delivery to PoE-enabled devices. With a range of up to 100 meters, the eBridge1PCR sends power through coax lines, ensuring seamless connectivity for your IP cameras or devices. Designed for easy implementation, these plug-and-play units facilitate the transition from analog to digital systems using legacy coax, significantly reducing installation costs and labor associated with new cabling. The eBridge1PCR is engineered to protect against damage by not supplying power to non-PoE compliant devices, ensuring your equipment remains safe. In addition to its impressive reach, the system supports data transmission and power over coax up to 457 meters, far exceeding traditional Ethernet limits. Considering a maximum distance of 610 meters to PoE devices, this solution is ideal for commercial installations looking to enhance their security infrastructure without extensive rewiring. The Altronix EBRIDGE1PCRT is a vital component for any upgrade to modern surveillance systems, combining performance with convenience.

Ethernet Over Coax Adapter

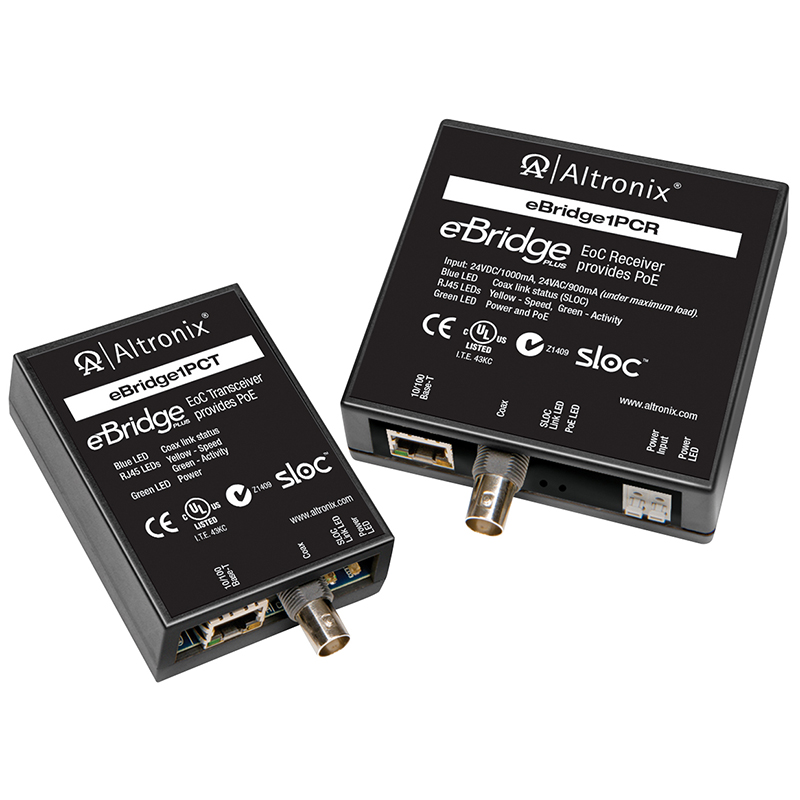

IP and PoE over Coax Solution eBridge1PCR Receiver and eBridge1PCT Hardened Transceiver Kit, 24VDC Class 2 power supply or 24VAC Class 2 plug-in transformer, Distance: Up to 100m

eBridge1PCR and eBridge1PCT are CAT5 to Coax cable Ethernet adapters that deliver data and power over the coax cable in a PoE compliant format. The paired set enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable. An eBridge1PCR receiver sends power over the coax to the eBridge1PCT transmitter under PoE protocol. The eBridge1PCT in turn delivers that PoE compliant power to a PoE enabled camera or IP device. eBridge1PCR will not deliver power to non-compliant devices, thus avoiding damage to improperly connected analog cameras. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 457m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 3). A maximum range from headend to the PoE camera/device is 610m, taking into consideration that up to 100m of structured cable may be deployed at each end.
