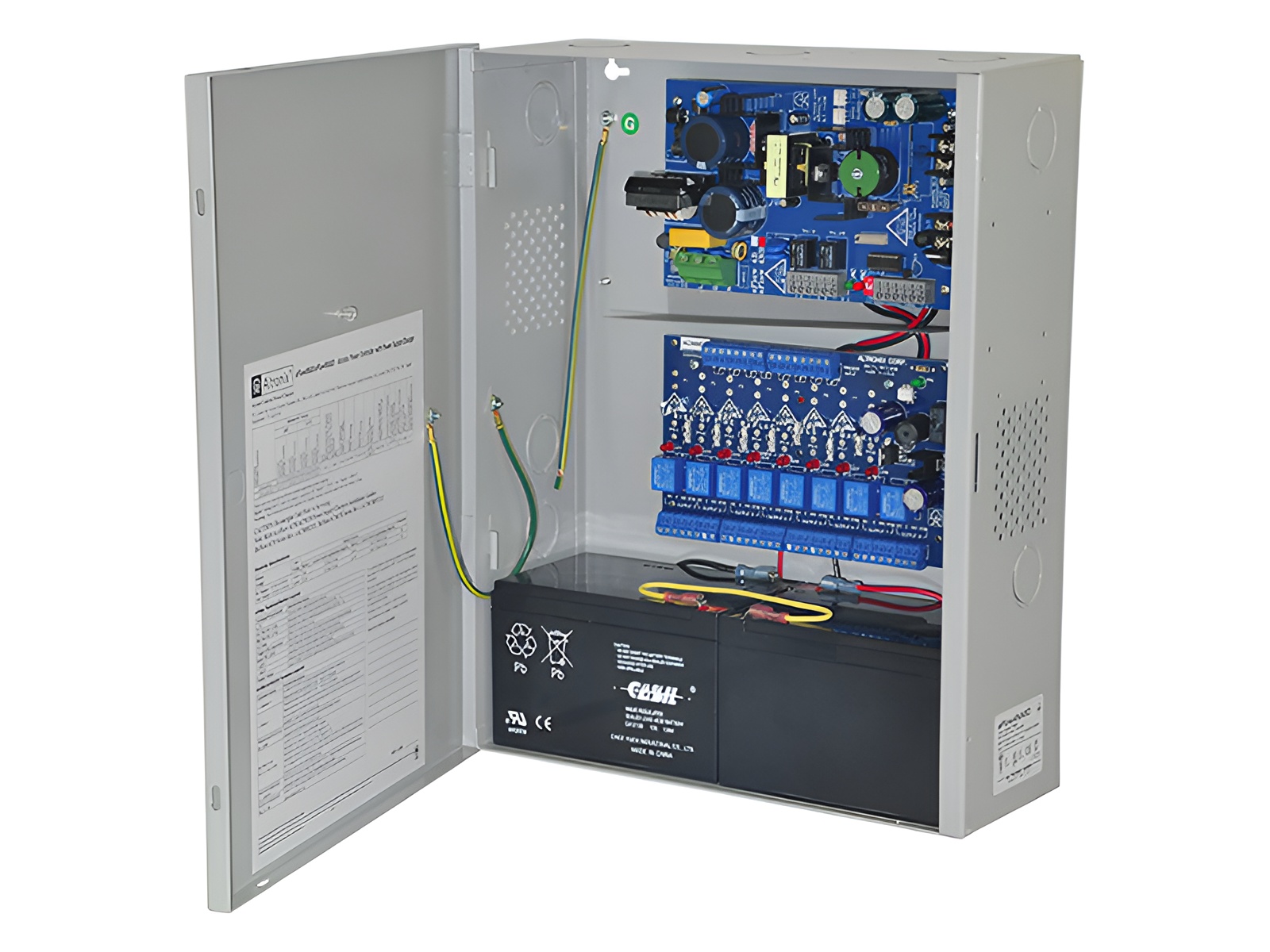

Altronix EFLow4NA8D Power Supply Charger

Altronix EFLow4NA8D Power Supply/Charger is a versatile power controller designed for efficient distribution and switching of power to access control systems and accessories. This unit converts a 120VAC 60Hz input into eight independently controlled outputs, offering both 12VDC and 24VDC options, all protected by PTC circuitry. The EFLow4NA8D supports a wide range of access control hardware, including magnetic locks, electric strikes, and magnetic door holders. Its outputs can operate in both Fail-Safe and Fail-Secure modes, ensuring flexibility for various security applications. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs, which allows for enhanced emergency egress and alarm monitoring capabilities. Moreover, this power supply is ideal for general use, CCTV systems, fire alarms, and POIP applications, making it a reliable choice for commercial installations. With a transformer output of up to 5 amps, the hardwired design ensures robust performance in demanding environments. The product is UL294 listed, ensuring compliance with industry standards. Altronix continues to lead the way in power and transmission technologies, delivering innovative solutions that enhance security system performance and efficiency.

Power Supply/Charger

Power Controller With Power Supply and Charger, Converts 120VAC 60Hz Input to 8 12/24VDC PTC Outputs

eFlow4NA8D distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight independently controlled 12VDC or 24VDC PTC protected outputs. These power outputs can be converted to dry form C contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
