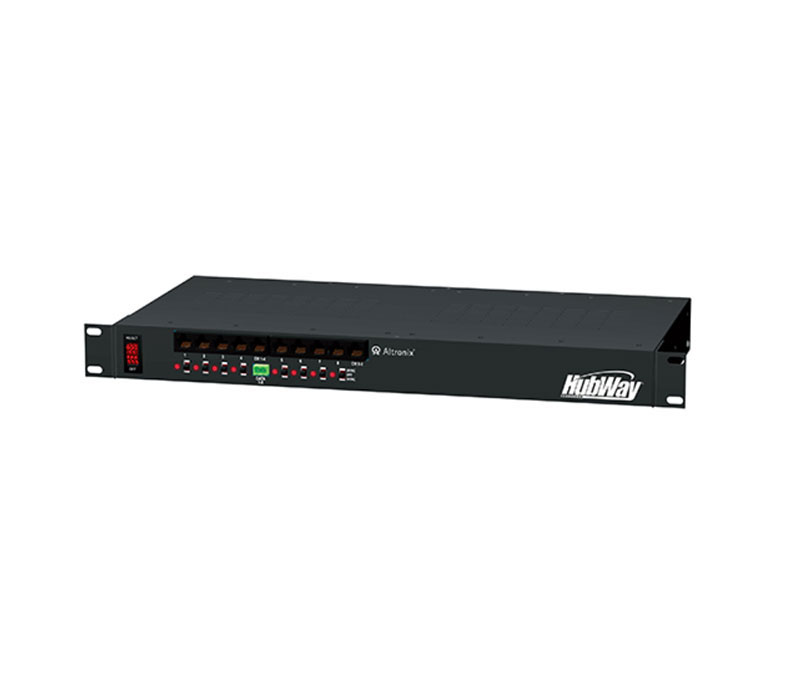

Altronix HUBWAY8DI Passive Transceiver Hub

Altronix HUBWAY8DI Passive Transceiver Hub delivers exceptional performance for video and power transmission, integrating seamlessly with your security systems. This compact, 1U EIA 19" rack mount chassis allows for versatile installation options, including rack, wall, or shelf mounting, catering to various professional settings. With the capability to transmit UTP video, RS422/RS485 data, and power over a single CAT-5 or higher structured cable, it supports up to eight camera channels, making it ideal for CCTV, fire alarm, and Power Over IP (POIP) applications. The HUBWAY8DI operates on a 115VAC 60Hz at 2.5A input or 230VAC 50Hz at 1.5A, supplying eight PTC isolated Class 2 power-limited outputs of 24/28VAC at up to 1A each. Each video output can transmit signals over a distance of up to 750 feet, ensuring reliable performance across extensive installations. The unit features individually selectable fuse-protected outputs with surge suppression, enhancing safety and functionality. For added flexibility, the optional HubSat4D accessory module can transmit video from up to four additional cameras, minimizing voltage drop risks associated with extended cable runs. Altronix continues to lead in innovative solutions that enhance security system efficiency and performance.

Passive Transceiver Hub

Passive UTP Transceiver Hub With Integral Isolated Camera Power, 115VAC 60Hz at 2.5A Input, or 230VAC 50Hz at 1.5A, 8 PTC Isolated Class 2 Power-Limited Outputs 24/28VAC Up to 1A each, Video Outputs at 75 ohm Up to 750'

HubWay8Di Passive UTP Transceiver Hub with Integral Isolated Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/ Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Isolated Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay8Di. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. This model replaces HubWay82Di, HubWay83Di

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
