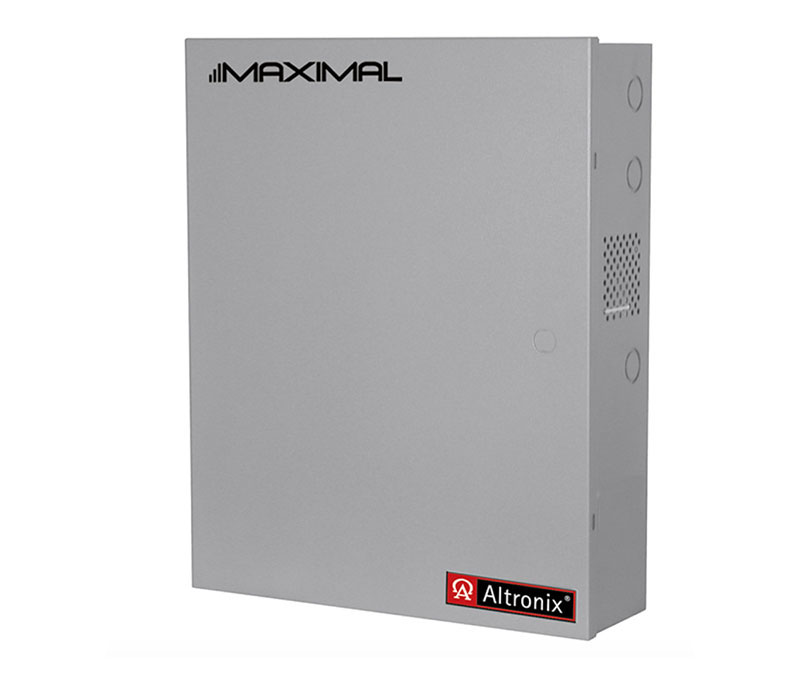

Altronix MAXIMAL33D Dual Power Supply/Charger

Altronix MAXIMAL33D 2 Power Supply/Charger is an advanced solution for distributing and managing power to access control systems and accessories. It features a robust 115VAC 60Hz input with a 7A capacity, converting it into sixteen independently controlled outputs, rated at 12VDC or 24VDC. Each output is Class 2 Rated and PTC protected, providing a maximum output of 5.7A. This power supply is designed for versatility, seamlessly routing power to a variety of access control devices such as Mag Locks, Electric Strikes, and Magnetic Door Holders. The outputs can operate in both Fail-Safe and Fail-Secure modes, allowing for customizable setups based on security preferences. Additionally, the FACP Interface facilitates Emergency Egress and Alarm Monitoring, with individually selectable fire alarm disconnect features for any or all outputs. Ideal for commercial applications, the MAXIMAL33D is perfect for use in CCTV, Fire Alarm systems, and POIP solutions. Altronix, a leading global provider of innovative power solutions, ensures that their products integrate seamlessly into existing infrastructures, maximizing performance and efficiency. Whether for general use or specialized applications, the Altronix MAXIMAL33D delivers reliable power management tailored to meet the demands of modern security systems.

2 Power Supply/Charger

Access Power Controller, 115VAC 60Hz at 7A Input, Two AL600ULXB, 16 PTC Protected Outputs 12/24VDC at 5.7A Max

Maximal33D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC Class 2 Rated PTC protected power limited outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
