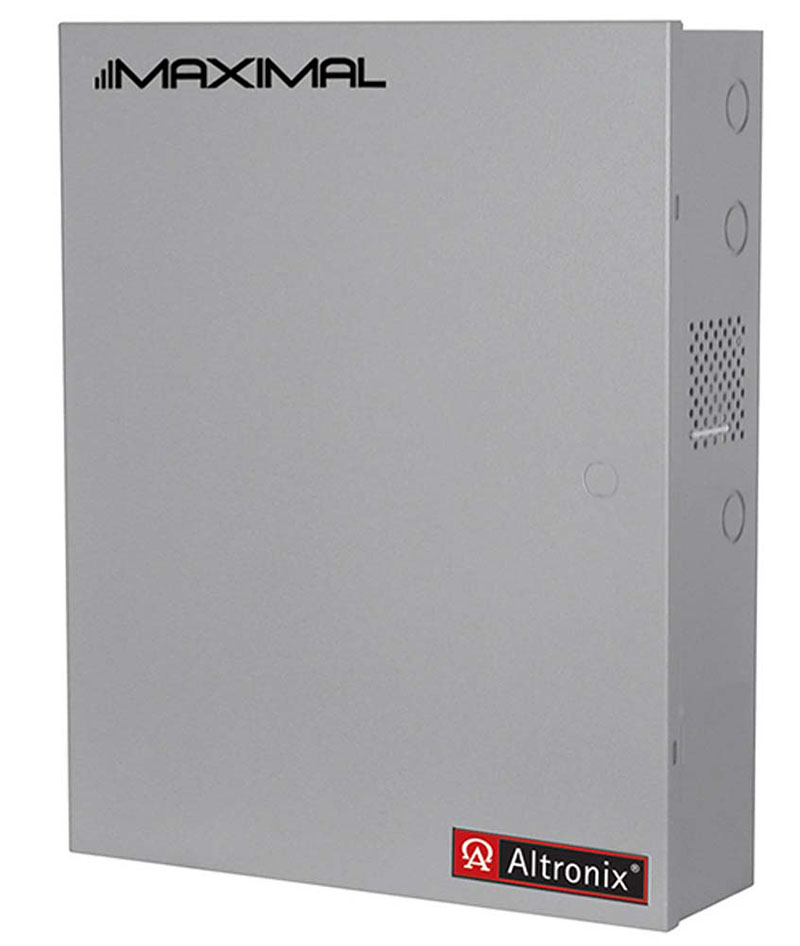

Altronix MAXIMAL55D Power Supply Charger

Altronix MAXIMAL55D Power Supply/Charger is a robust access power controller designed to facilitate the efficient distribution and switching of power to access control systems and accessories. Operating on a 115VAC 60Hz input with 5.2A, this unit generates sixteen (16) independently controlled 12VDC outputs, each rated for 9.5A and protected by PTC technology. The MAXIMAL55D is versatile, supporting a variety of access control hardware devices including magnetic locks, electric strikes, and magnetic door holders. Its outputs can function in both fail-safe and fail-secure modes, ensuring flexibility in security applications. Additionally, the fire alarm control panel (FACP) interface supports emergency egress, alarm monitoring, and can trigger auxiliary devices, with the ability to select fire alarm disconnects for any or all outputs. This power supply is ideal for multiple applications, including general use, CCTV, fire alarm systems, and POIP. Altronix, a leading global provider of power solutions, is known for creating innovative technologies that enhance the performance and efficiency of professional security systems. With its hardwired design and capability to ship via UPS, the MAXIMAL55D is an essential choice for commercial installations.

Power Supply/Charger

Access Power Controller, 115VAC 60Hz at 5.2A Input, Two AL1012ULXB, 16 PTC Protected Outputs 12VDC at 9.5A

Maximal55D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC Class 2 Rated PTC protected power-limited outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
