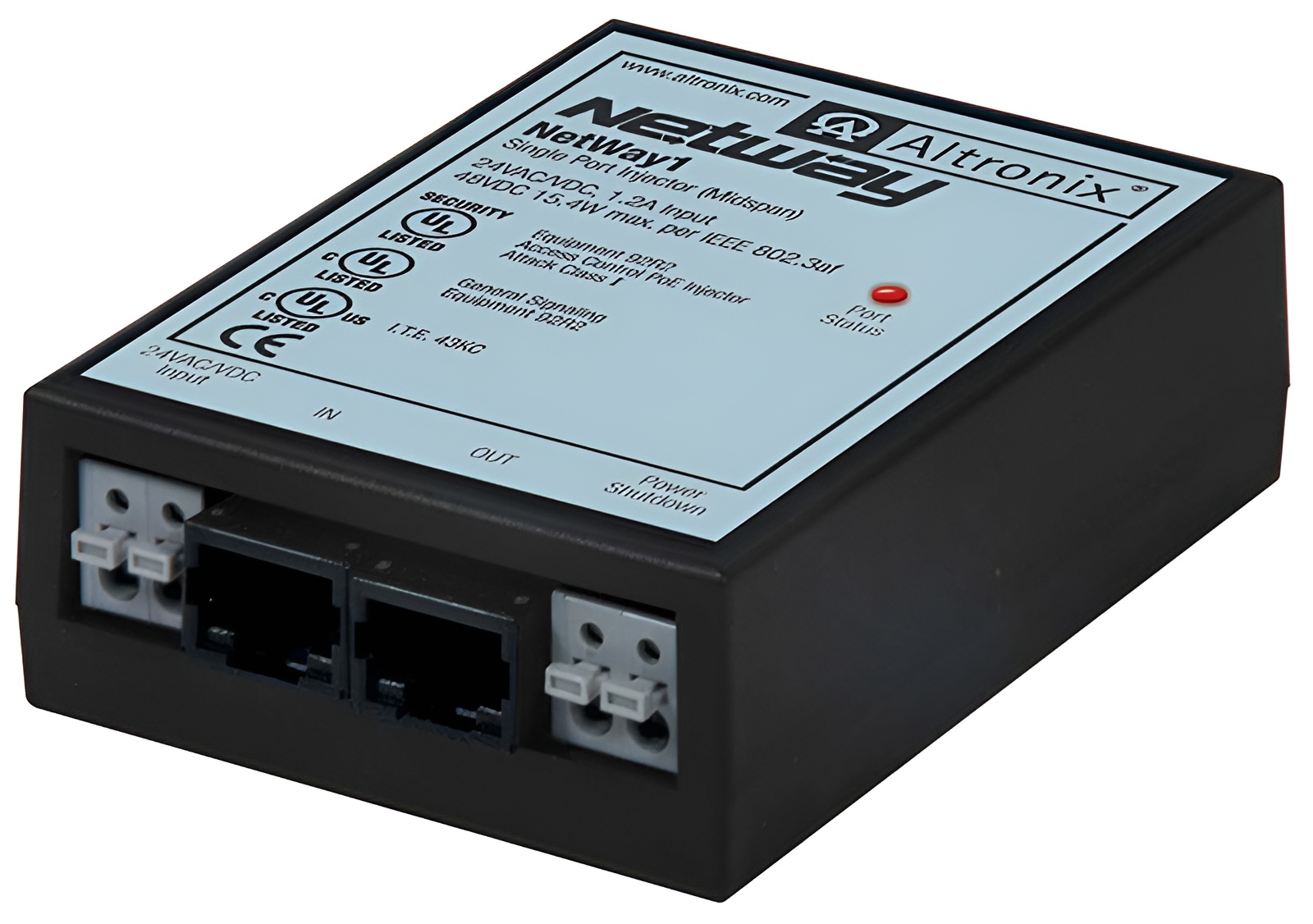

Altronix NetWay1 Single Port Midspan Injector

Altronix NetWay1 Single Port Midspan Injector is an efficient solution for powering PoE-compliant devices while simultaneously passing data, making it ideal for various commercial installations. With a robust input of 24VAC/DC at 1.2A, the NetWay1 delivers a maximum output of 15.4W, ensuring reliable performance for your connected devices. Designed for versatility, this single port injector allows devices to be placed up to 100 meters away. For projects requiring extended reach, you can utilize a NetWayXT repeater module to double the distance to 200 meters, with the potential to reach a maximum range of 600 meters when employing multiple repeaters. This feature is particularly beneficial for installations involving non-PoE compliant fixed IP cameras, which can be supported using the NetWay1512 adapter. The NetWay1 is part of Altronix's Accessories and Components series, specifically under the Power Over Ethernet (PoE) Adaptors subtype. Each unit ships via UPS, ensuring timely delivery to your job site. Whether you’re a building professional or a knowledgeable homeowner, the Altronix NetWay1 Single Port Midspan Injector is a reliable choice for straightforward and effective power management in your networked environments.

Single Port Midspan Injector

Single Port Injector, Midspan, 24VAC/DC at 1.2A Input, Ouput Port Provides Up to 15.4W Max

NetWay1 is a single port midspan PoE compliant power injector which provides power and passes data(e.g. video) for PoE compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance an additional100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
