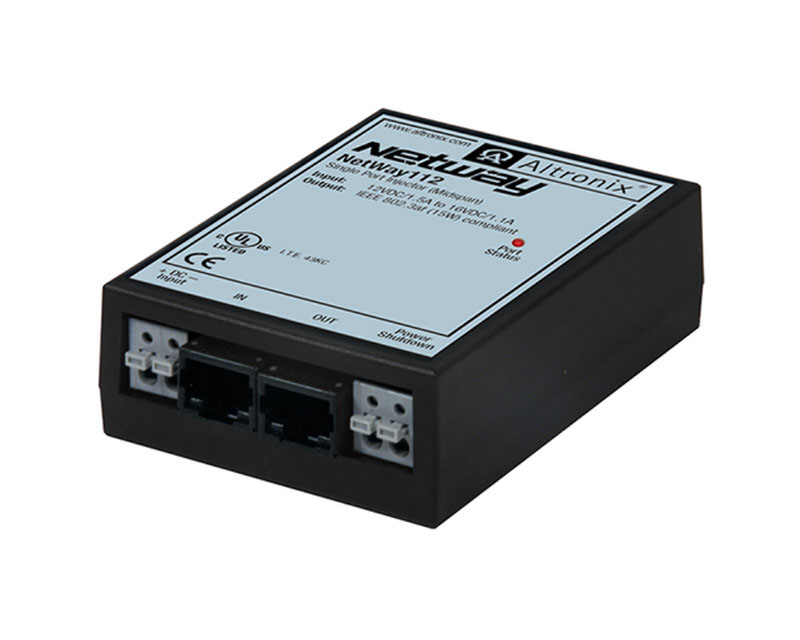

Altronix Netway112 Single Port Midspan Injector

Altronix Netway112 Single Port Midspan Injector is a robust solution designed for standard network infrastructures, delivering reliable Power over Ethernet (PoE) capabilities. This injector provides a versatile input range of 12VDC at 1.5A to 16VDC at 1.1A, ensuring optimal performance while powering devices located up to 100 meters away. With a maximum output of 15.4W, the Netway112 effectively supports PoE compliant devices, making it ideal for integrating video and data transmission seamlessly. For extended installations, the NetWayXT repeater module can be added, allowing for an impressive total range of 200 meters. Furthermore, by utilizing multiple repeaters, an extensive distance of up to 600 meters can be achieved, accommodating various device port requirements. The Netway112 is also compatible with non-PoE compliant fixed IP cameras when paired with the NetWay1512 adapter, enhancing its versatility. Designed for commercial use, this single port injector is a vital component in any professional setting. Packaged individually, it is easy to install and can ship via UPS for added convenience. With Altronix's commitment to quality and innovation, the Netway112 is a dependable choice for powering your network devices efficiently.

Single Port Midspan Injector

Single Port PoE Injector for Standard Network Infrastructure, 12VDC at 1.5A to 16VDC at 1.1A Input, Ouput Port Provides Up to 15.4W Max

NetWay112 is a single port midspan PoE compliant power injector that provides power and passes data (e.g. video) for PoE compliant devices. Devices may be located up to 100m from NetWay112. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device portrequirement. NetWay112 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
