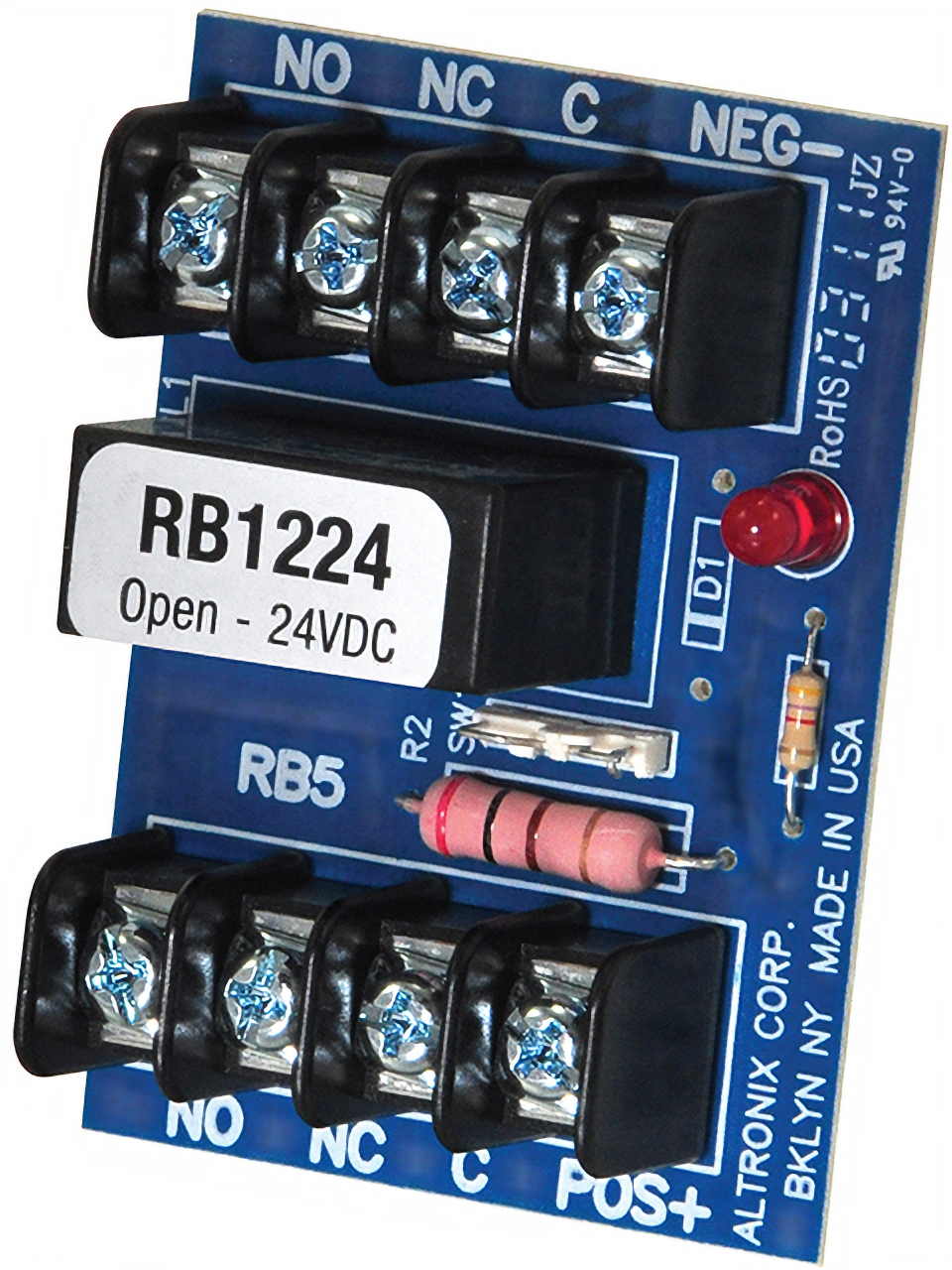

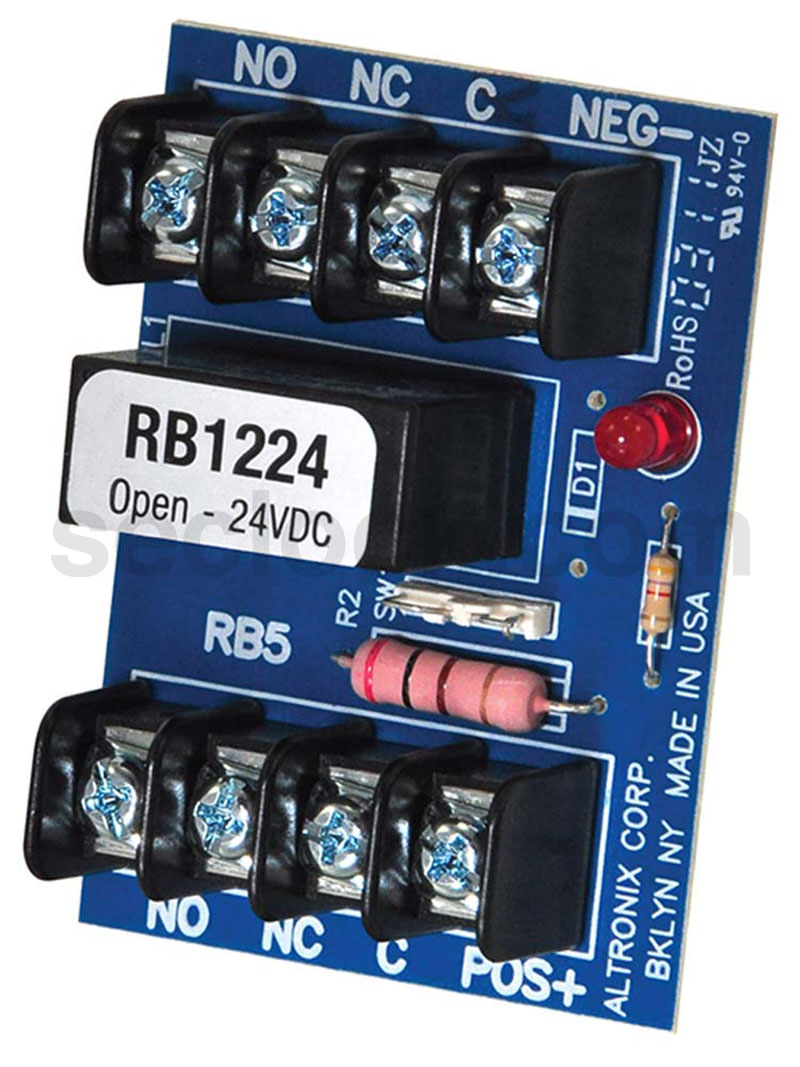

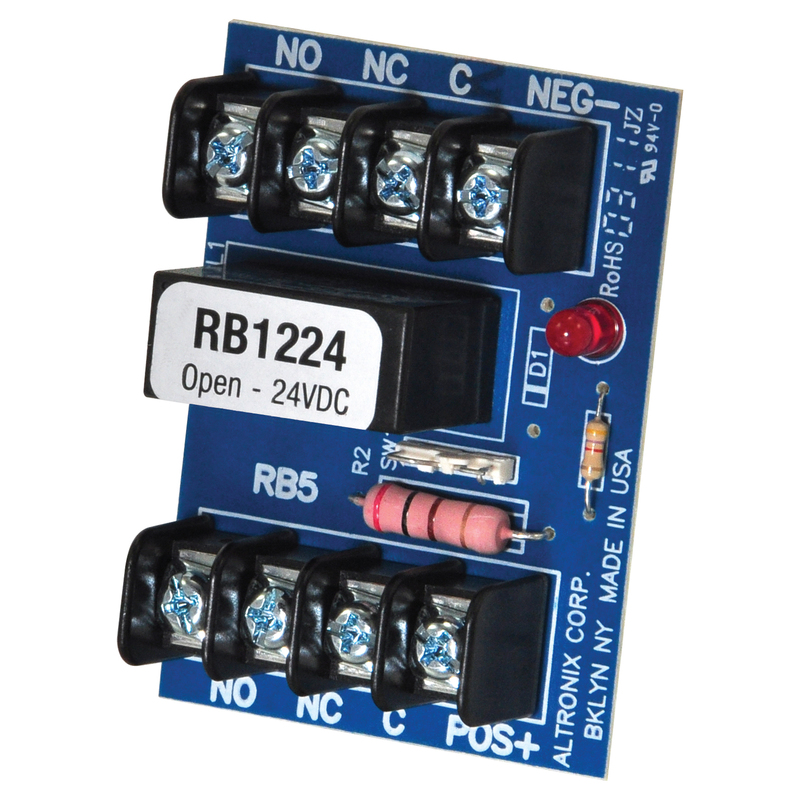

Altronix RB1224 Power Supply
Images may not represent actual product and finish

Altronix RB1224 Power Supply

Your Price: $17.01
Retail Price:$22.15
Your Savings:$5.14(23%)
Relay Module, 12/24VDC Operation at 75mA Draw, 5A/220VAC or 28VDC DPDT Contact Rating
Part Number : ALT_RB1224
Availability: 888 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Altronix RB1224 Power Supply

RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. The RB1224 is snap track mountable.
  • Input Voltage:
  • 12VDC to 24VDC operation.
  • Current draw: 75mA.
  • Contact Rating:
  • DPDT contacts rated at 5A./220VAC or 28VDC.
  • LED Indicators:
  • Relay status LED.
  • Remote LED status output.
  • Electrical:
  • Operating temperature: -25° C to 55° C ambient.

Features

  • Input Voltage:
  • Current draw: 75mA.
  • Electrical:
  • DPDT contacts rated at 5A./220VAC or 28VDC.
  • Relay status LED.
  • Operating temperature: -25° C to 55° C ambient.
  • LED Indicators:
  • Remote LED status output.
  • 12VDC to 24VDC operation.
  • Contact Rating:

Attributes

Alternate Codes: RB1224

Category: Access Control, Access Management, Hardwired

Output Amps: 5 AMPS

Output Volts: 28VDC

Purpose: General

Series: Altronix Relay Modules

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: LOCK SETS
