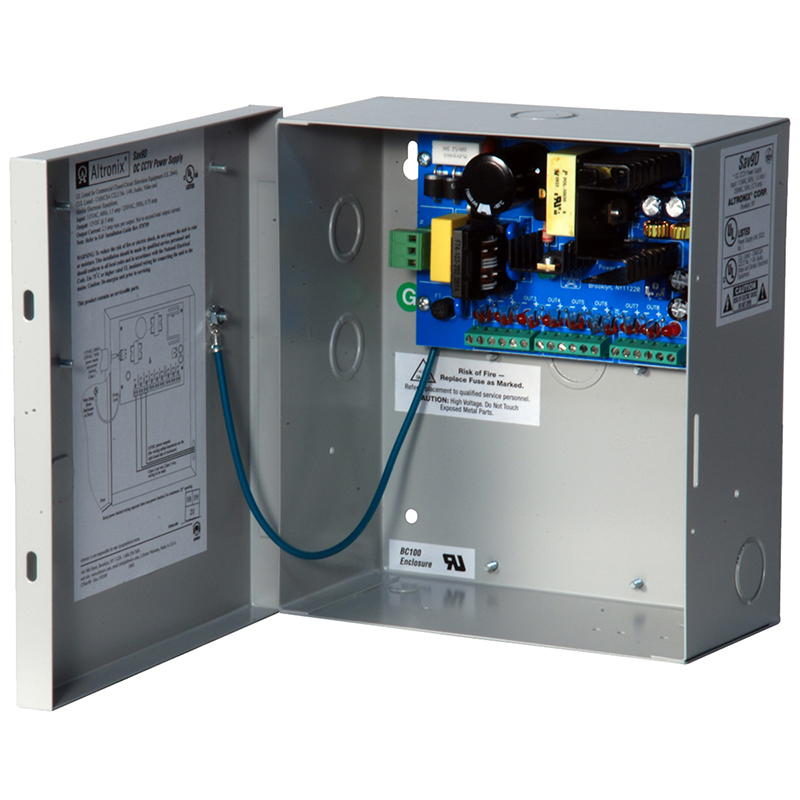

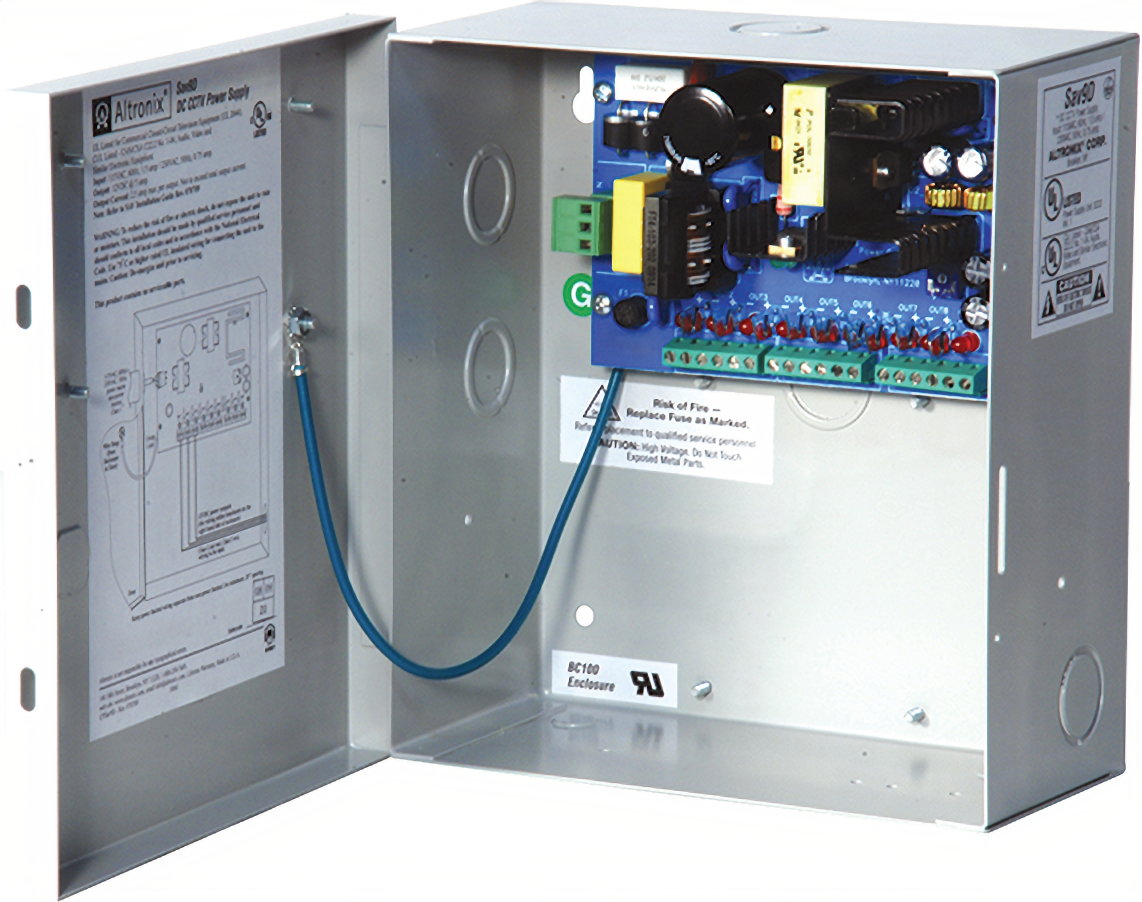

Altronix SAV9D Power Supply

Your Price: $156.84

Retail Price:$218.39

Your Savings:$61.55(28%)

DC CCTV Power Supply, 115VAC 60Hz at 1.5A or 230VAC 50Hz at 0.75A Input, 9 PTC Protected Class 2 Outputs 12VDC at 5A Max Total Current, Grey Enclosure

Part Number : ALT_SAV9D

Availability: 36 In Stock

Quantity

Description

Altronix SAV9D Power Supply

9 Output CCTV Power Supply - 12VDC 5A, PTC outputs, field installable grounded line cord, encl. 8.5inH x 7.5inW x 3.75inD, 115/230VAC input. UL Listed (UL2044), cUL Listed.

Input:
115VAC 60Hz, 1.5 amp /230VAC 50Hz, 0.75 amp.
Output:
12VDC @ 5 amp total output current (0.55 amp per device, 2.5 amp max.).
Nine (9) Class 2 Rated PTC protected power limited outputs.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Electrical:
Operating temperature: 0° C to 49° C ambient.
30.71 BTU/Hr.
System AC input VA requirement: 172.5VA.
Features:
Nine (9) power LEDs.
Field installable 3-wire line cord with integral strain relief.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Mechanical:
NEMA1 enclosure.
Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm)
Product weight (approx.): 4.6 lbs. (2.08 kg).
Shipping weight (approx.): 5.1 lbs. (2.31 kg).

Features

Shipping weight (approx.): 5.1 lbs. (2.31 kg).
Short circuit and thermal overload protection.
Field installable 3-wire line cord with integral strain relief.
Input:
NEMA1 enclosure.
Ease of installation saves time and eliminates costly labor.
Unit maintains camera synchronization.
Product weight (approx.): 4.6 lbs. (2.08 kg).
Filtered and electronically regulated outputs.
Nine (9) power LEDs.
Nine (9) Class 2 Rated PTC protected power limited outputs.
115VAC 60Hz, 1.5 amp /230VAC 50Hz, 0.75 amp.
12VDC @ 5 amp total output current (0.55 amp per device, 2.5 amp max.).
Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm)
Output:
Electrical:
Mechanical:
Operating temperature: 0° C to 49° C ambient.
System AC input VA requirement: 172.5VA.
Features:
30.71 BTU/Hr.

Attributes

Access Type: CCTV Power Supply

Alternate Codes: SAV9D

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Power Supplies, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 5 AMPS

Output Volts: 12VDC

Pack Qty: 1

Purpose: CCTV

Series: Altronix Power Supplies

Ship Weight: 4.65 lbs.

Subtype: Power Supply

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each

Voltage/ Amp Rating: 12V DC
