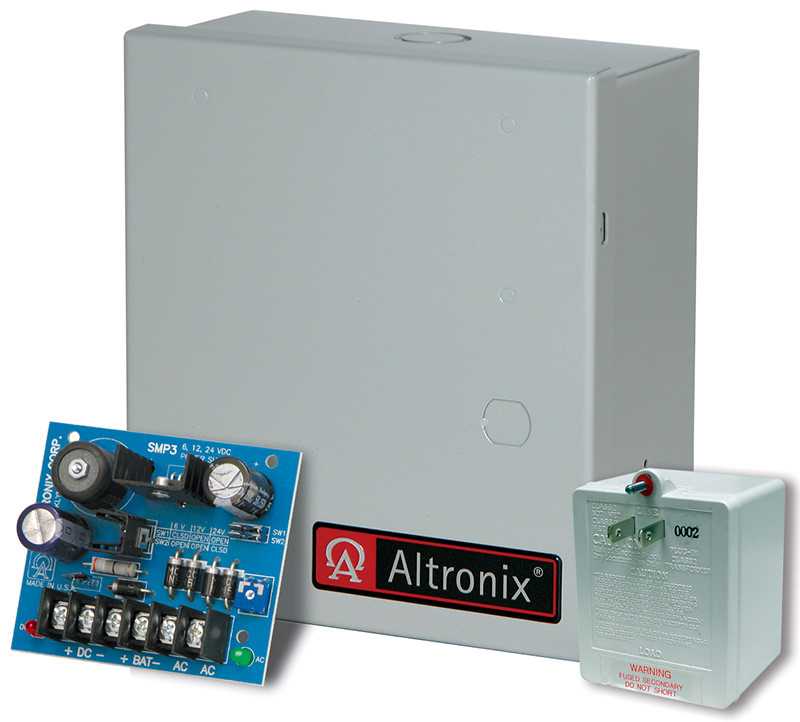

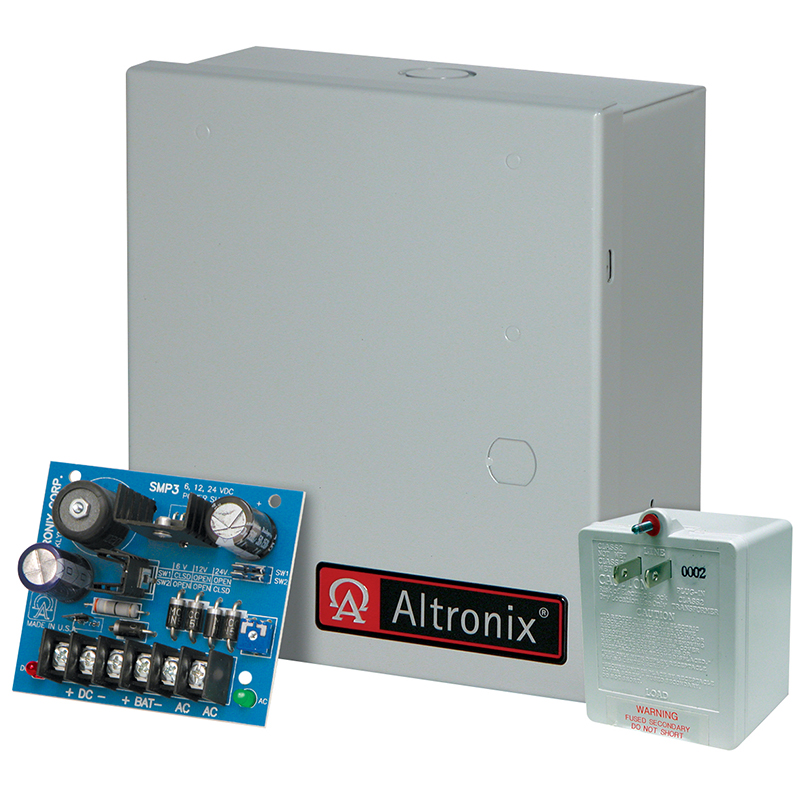

Altronix SMP3ET Power Supply

Your Price: $137.79

Retail Price:$191.87

Your Savings:$54.08(28%)

High Current Power Supply/Charger, 16VDC Input from TP1640 Plug-in Transformer, 6/12VDC at 2.5A Output

Part Number : ALT_SMP3ET

Availability: 185 In Stock

Quantity

Description

Altronix SMP3ET Power Supply

This power supply/charger converts a low voltage AC input into 6VDC or 12VDC @ 2.5A. continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Features

6VDC or 12VDC selectable output.
Battery Backup: (Batteries sold separately)
Short circuit and thermal overload protection.
6VDC/12VDC: 276VA.
Input:
BTU/Hr. (approx.): 6VDC: 8 BTU/Hr.; 12VDC: 15 BTU/Hr.
16VDC from TP1640 plug-in transformer.
AC input and DC output LED indicators.
System AC input VA requirement:
2.5A continuous supply current.
Filtered and electronically regulated output.
Operating: 0° C to 49° C (32° F to 120° F).
Automatic switch over to stand-by battery when AC fails.
Relative Humidity: 85% +/- 5%
Temperature:
Battery short circuit protection (circuit breaker).
Output:
Visual Indicators:
Storage: 20° C to 70° C ( 4° F to 158° F).
Built-in charger for sealed lead acid or gel type batteries.

Attributes

Manufacturer surcharge: $ 0.0

Alternate Codes: SMP3ET

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 2.5 AMPS

Output Volts: 12VDC

Pack Qty: 1

Purpose: General

Series: Altronix Power Supplies

Ship Weight: 5.85 lbs.

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Wire-In Transformer

Unit of Measure: Each
