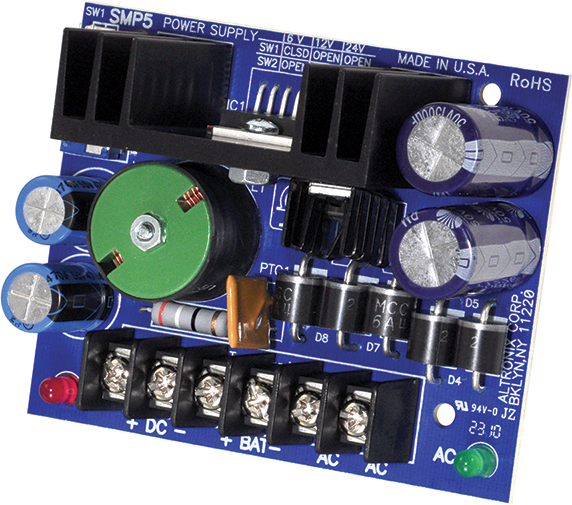

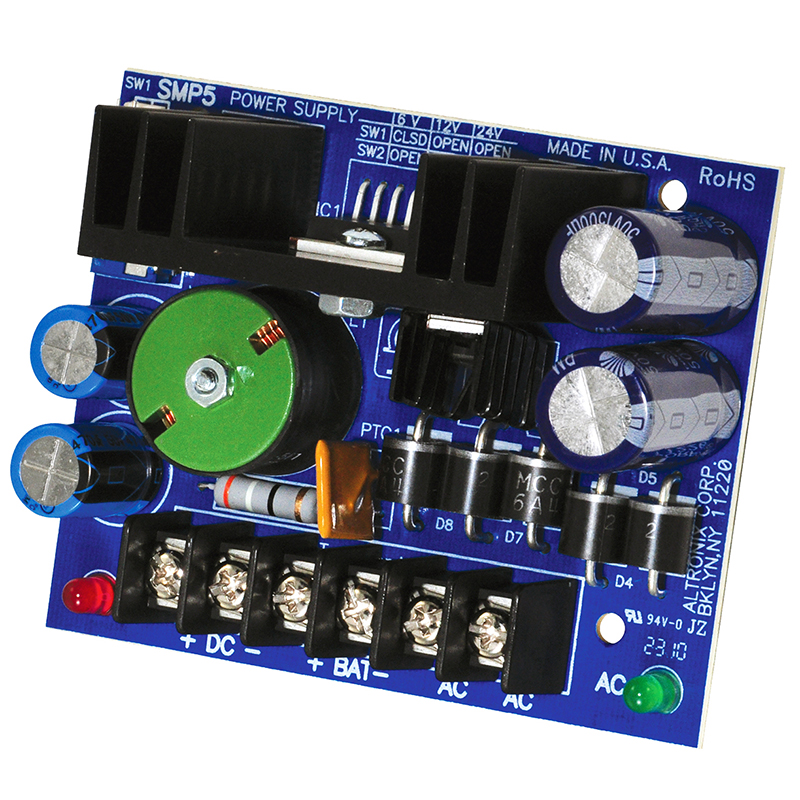

Altronix SMP5 Power Supply
Images may not represent actual product and finish

Altronix SMP5 Power Supply

Your Price: $72.06
Retail Price:$100.34
Your Savings:$28.28(28%)
Switching Power Supply Board, 6VDC Application use TP1640, 12VDC Application use T2428100, 24VDC Application use T2428175, 6/12/24VDC at 4A Output
Part Number : ALT_SMP5
Availability: 171 In Stock
Altronix SMP5 Power Supply

6VDC, 12VDC or 24VDC output @ 4 amp supply current. Filtered and electronically regulated output. AC input and DC output LED indicators.
  • Input:
  • 6VDC applications use TP1640.
  • 12VDC applications use T2428100.
  • 24VDC applications use T2428175.
  • Output:
  • 6VDC, 12VDC or 24VDC selectable output.
  • 4 amp supply current.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Battery Backup:
  • Built-in charger for sealed lead acid or gel type batteries.
  • Maximum charge current 0.3 amp.
  • Zero voltage drop when switching over to battery backup.
  • Visual Indicators:
  • AC input and DC output LED indicators.
  • Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • BTU/Hr.:
  • 6VDC: 12.28 BTU/Hr.
  • 12VDC: 24.57 BTU/Hr.
  • 24VDC: 49.13 BTU/Hr.
  • System AC input VA requirement:
  • 6VDC: 55.2VA.
  • 12VDC/24VDC: 115VA.
  • Features:
  • Extremely compact design.
  • Includes battery leads.
  • Snap Trac compatible (order Altronix model number ST3).
  • Mechanical:
  • Product weight (approx.): 0.35 lbs. (0.16 kg).
  • Shipping weight (approx.): 0.45 lbs. (0.20 kg).

Features

  • Shipping weight (approx.): 0.45 lbs. (0.20 kg).
  • Input:
  • 6VDC, 12VDC or 24VDC selectable output.
  • Includes battery leads.
  • 6VDC applications use TP1640.
  • Battery Backup:
  • Zero voltage drop when switching over to battery backup.
  • Product weight (approx.): 0.35 lbs. (0.16 kg).
  • Filtered and electronically regulated outputs.
  • 24VDC applications use T2428175.
  • 4 amp supply current.
  • Visual Indicators:
  • Electrical:
  • Mechanical:
  • 12VDC/24VDC: 115VA.
  • Features:
  • BTU/Hr.:
  • 6VDC: 12.28 BTU/Hr.
  • Short circuit and thermal overload protection.
  • AC input and DC output LED indicators.
  • System AC input VA requirement:
  • 12VDC: 24.57 BTU/Hr.
  • Maximum charge current 0.3 amp.
  • 24VDC: 49.13 BTU/Hr.
  • Extremely compact design.
  • 12VDC applications use T2428100.
  • 6VDC: 55.2VA.
  • Output:
  • Snap Trac compatible (order Altronix model number ST3).
  • Operating temperature: 0° C to 49° C ambient.
  • Built-in charger for sealed lead acid or gel type batteries.

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Power Supply

Alternate Codes: 125403, PS50, SMP5

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Installation: Commercial

Output Amps: 4 AMPS

Output Volts: 6/12/24 VDC

Pack Qty: 1

Purpose: General

Series: Altronix Power Supplies

Ship Weight: 0.5 lbs.

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Switching

Unit of Measure: Each

Voltage/ Amp Rating: 12 - 24V DC
