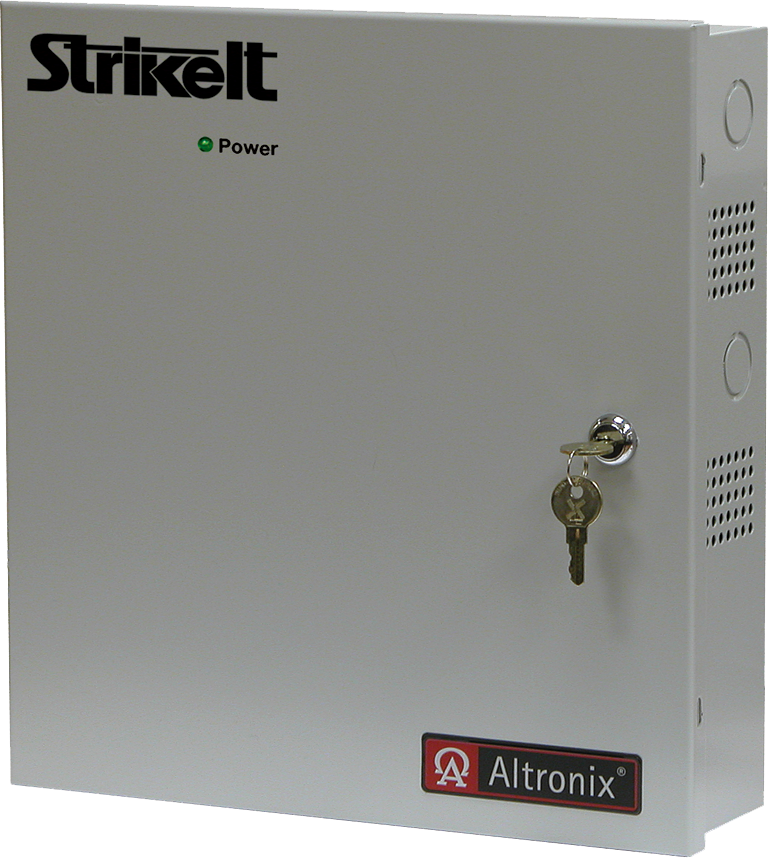

Altronix STRIKEIT1 Power Supply

• Input:
• Input 115VAC 60Hz, 6.3 amp.
• Two (2) NO trigger inputs.
• Input fuse rating: 6.3 amp.
• Outputs:
• Power options:
• Two (2) 20VDC to 26.4VDC individually controlled lock outputs for applications with battery back-up. 24VDC for applications without battery back-up (US applications only). Current rating 15 amp for 300ms, 0.75 amp continuous supply current.
• 5V holding voltage with 20VDC to 26.4VDC initial 100ms pulse. Maximum total 5V holding current of both outputs is 0.74 amp.
• One (1) 20VDC to 26.4VDC for applications with battery back-up, 24VDC for applications in US not requiring battery back-up. Auxiliary output rated @ 0.75 amp continuous supply current (Not affected by FACP trigger).
• One (1) 12VDC filtered regulated auxiliary output rated @ 0.75 amp in alarm, 0.5 amp stand-by current (Not affected by FACP trigger).
• Two (2) follower form "A" SPST relay outputs rated @ 0.6 amp/28VDC. Relays energize while input is closed.
• Two (2) delayed follower Normally Open relay outputs rated @ 0.6 amp/28VDC. Delay time is selectable 0.5 seconds or 1 second. Energized duration is 1 second.
• Trouble relay output indicating low DC output voltage.
• Battery Backup:
• Battery leads included.
• Battery fuse rating: 25A/32V.
• Maximum charge current 650mA.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• When 7AH batteries are used, battery capacity for emergency stand-by is 30 minutes.
• Visual Indicators:
• Green AC Power LED indicates 115VAC present.
• Red trigger input LEDs indicate panic device status/trouble (activated, short or open circuit).
• Green Fire Alarm Interface (FAI) LED indicates FACP disconnect is activated.
• Red Battery LED indicates low battery during AC failure and manual test.
• Green AC LED indicates loss of AC trouble (not active during manual test sequence).
• Fire Alarm Disconnect:
• Normally Closed FACP trigger input.
• Programmable Fire Alarm Disconnect options:
• Removes power to outputs and disables delayed follower relays.
• Connects power to lock outputs and enables delayed follower relays.
• Additional Features:
• Manual testing to allow to tests battery conditions.
• Adjustable panic release from 1 sec. to 30 secs.
• Note: Follower and Delay relay turns off when the potentiometer selected time elapses after release of the input trigger.
• Cam lock included.
• Electrical:
• Operating temperature: 0° C to 49° C ambient.
• BTU/Hr.: 196.5 BTU/Hr.
• System AC input VA requirement: 218.5VA.
• Mechanical:

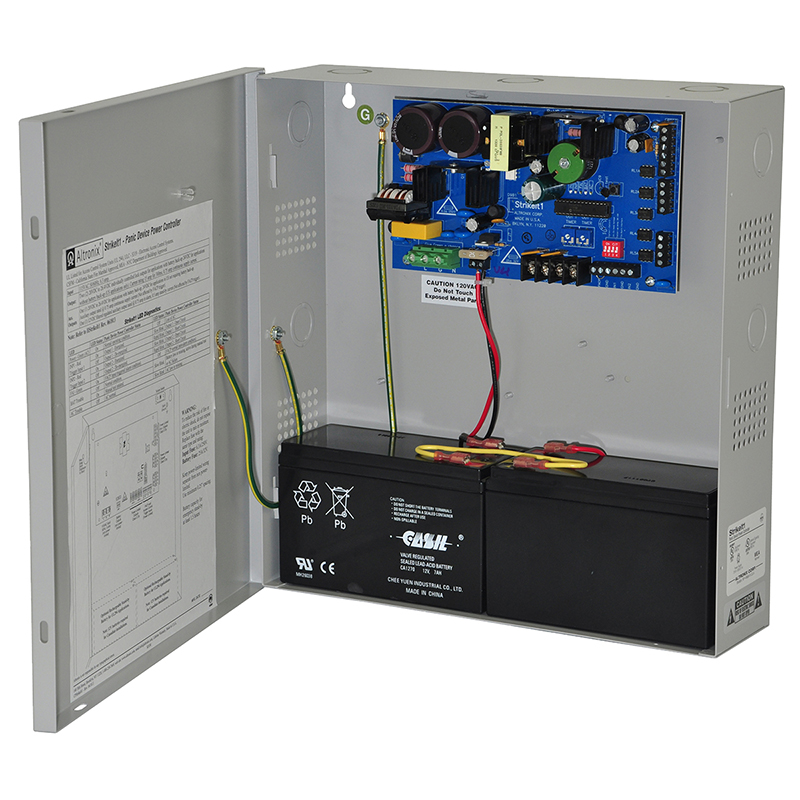

• Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
• Enclosure accommodates up to two (2) 12VDC/7AH batteries.
• Product weight (approx.): 6.25 lbs. (2.83 kg).
• Shipping weight (approx.): 7.15 lbs. (3.24 kg).
