Altronix T1M1LCK1D Altronix/Mercury 4-Door Access Power Integration Kit with AL400ULXB2

Altronix T1M1LCK1D 4-Door Access and Power Integration Kit offers a comprehensive solution for your access control needs. This robust kit combines essential Altronix components, including the AL400ULXB2 Power Supply/Charger, PDS8CB Dual Input Power Distribution Module, and ACM4CB Access Power Controller, all housed within the Trove 1 Enclosure for streamlined installation. Designed for flexibility, the AL400ULXB2 provides selectable outputs of either 12VDC or 24VDC with a continuous current of 4A at 12VDC, ensuring ample power for Mercury platform controllers and locking devices. The PDS8CB module supports dual voltage inputs and allows for easy servicing with individually selectable outputs. The VR6 Voltage Regulator ensures stable voltage delivery, while the ACM4CB Access Power Controller features four independently controlled outputs for fail-safe or fail-secure configurations. Environmental resilience is built into this kit, supporting operating temperatures from 0°C to 49°C and maintaining 85% relative humidity tolerance. With additional features like LED indicators for power status and battery supervision, the T1M1LCK1D provides reliability and performance for demanding applications. Simplify your access control systems with this integrated solution, designed for efficiency and ease of use.

4-Door Altronix/Mercury Access and Power Integration Kit, Includes AL400ULXB2 Power Supply/Charger, PDS8CB Dual Input Power Distribution Module, VR6 Voltage Regulator, ACM4CB Access Power Controller, RSB1 On/Off Switch, Trove 1 Enclosure, TM1 Backplane

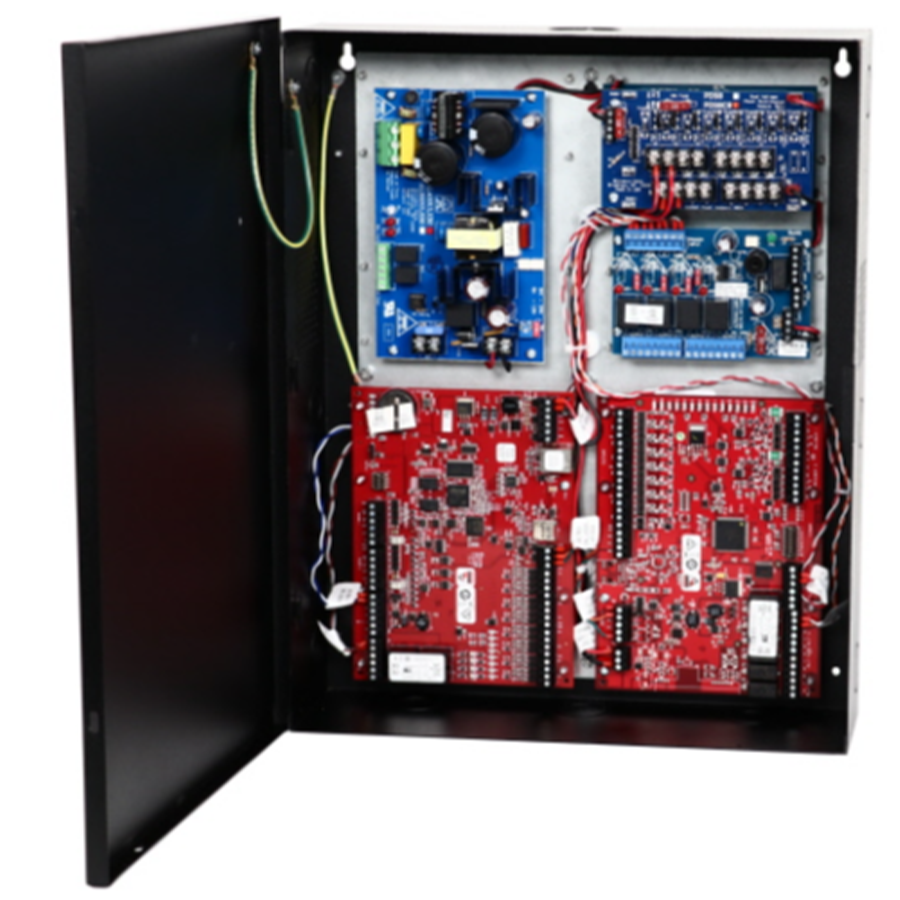

T1M1LCK1D is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK1D accommodates one (1) Intelligent Dual Reader Controller and one (1) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

Specifications:

• AL400ULXB2 Power Supply/Charger:
• Input Voltage: 115VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V.
• Outputs
• Voltage: 12VDC or 24VDC selectable.
• Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
• Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included):
• Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Fuse Rating: 15A/32V.
• Failover: Upon AC loss, instantaneous.
• Supervision:
• AC Failure: Form "C" contacts.
• Battery: Form "C" contacts.
• Indicators LED:
• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• PDS8CB Dual Input Power Distribution Module:
• Input Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2. Input PTC: 9A.
• Outputs:
• Voltage 12VDC and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Outputs Ratings: PTCs 2.5A.
• Indicators LED:
• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.
• VR6 Voltage Regulator:
• Input: Voltage: 24VDC from AL400ULXB2.
• Output: Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression.
• Indicators LED: Input: 24VDC is present. Output: Powered.
• ACM4CB Access Power Controller:
• Input: 24VDC from AL400ULXB2. Input Fuse: 10A / 32V.
• Outputs:
• Voltage: 24VDC.
• Four (4) independently controlled 2.5A outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Any combination of the above.
• Four (4) auxiliary power outputs (unswitched).
• Outputs Ratings: PTCs: 2.5A.
• Indicators (LED): Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered.
• Environmental:
• Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 90 BTU/Hr.

Features

• Supervision:
• Input Voltage: 115VAC, 60Hz, 3.5A max. Input Fuse: 5A / 250V.
• Outputs:
• Indicators LED: Input: 24VDC is present. Output: Powered.
• AL400ULXB2 Power Supply/Charger:
• Input: Voltage: 24VDC from AL400ULXB2.
• Battery: Discharged or not connected.
• Red: 24VDC.
• Input: 115VAC is present.
• Green: 12VDC
• PDS8CB Dual Input Power Distribution Module:
• Outputs Ratings: PTCs: 2.5A.
• Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Fuse Rating: 15A/32V.
• Indicators LED:
• Environmental:
• Voltage 12VDC and/or 24VDC.
• VR6 Voltage Regulator:
• b) Any combination of the above.
• Relative Humidity: Relative Humidity 85% +/- 5%.
• Other: Overvoltage protection. Filtered and regulated.
• Voltage: 12VDC or 24VDC selectable.
• AC Failure: Form "C" contacts.
• Indicators (LED): Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered.
• DC Output: Powered.
• Failover: Upon AC loss, instantaneous.
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• Voltage: 24VDC.
• Output: Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression.
• Battery: Form "C" contacts.
• Outputs Ratings: PTCs 2.5A.
• BTU/Hr (approx.): 90 BTU/Hr.
• Type: Sealed lead acid or gel type.
• Input Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2. Input PTC: 9A.
• Individual outputs may be set to OFF position for servicing.
• Input: 24VDC from AL400ULXB2. Input Fuse: 10A / 32V.
• Capacity: 7AH/12VDC (Up to 2 within enclosure); 40 AH/65 AH (requires separate enclosure).
• Four (4) independently controlled 2.5A outputs:
• DC Output: Eight (8) individual output LEDs.
• Outputs
• Battery Backup (not included):
• ACM4CB Access Power Controller:
• Four (4) auxiliary power outputs (unswitched).
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
