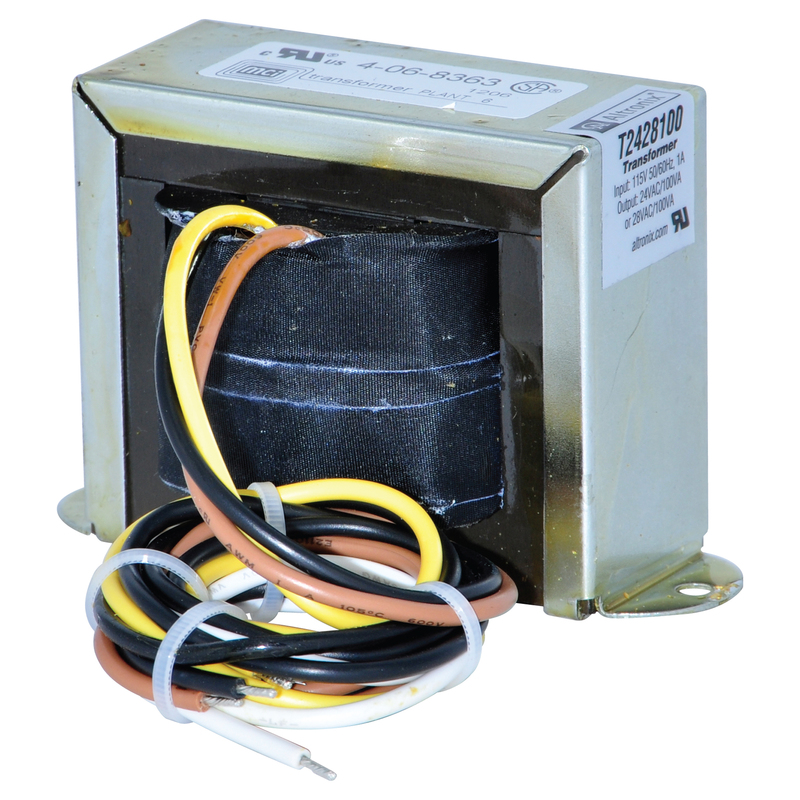

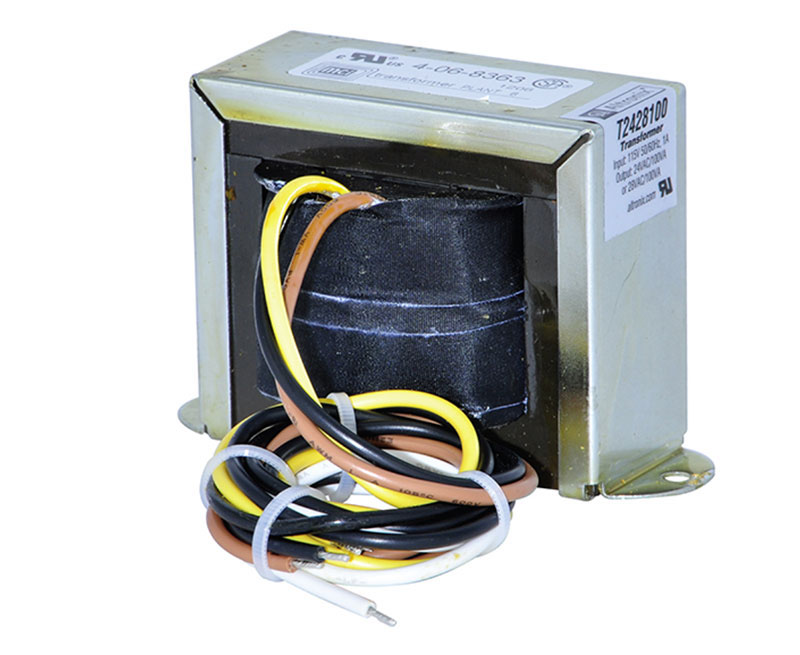

Altronix T2428100 Power Supply
Images may not represent actual product and finish

Altronix T2428100 Power Supply

Your Price: $67.69
Retail Price:$88.14
Your Savings:$20.45(23%)
AC Open Frame Transformer, 115VAC 50/60Hz at 1A Input, 24VAC/100VA (4A) or 28VAC/100VA (3.5A) Supply Current
Part Number : ALT_T2428100
Availability: 10 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Altronix T2428100 Power Supply

T2428100 open frame transformer provides power for electronic power supplies and equipment including security, access control and surveillance devices. This model replaces T2885
  • Input
  • 115VAC 50/60 Hz, 1A.
  • Output
  • 24VAC/100VA (4A.) or 28VAC/100VA (3.5A.) supply current.
  • Temperature
  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity: 85% +/- 5%.
  • BTU/Hr. (approx.): 52 BTU/Hr.
  • System AC input VA requirement: 115VA.
  • Dimensions (approximate):
  • 2.6"W x 4"L x 2.5"H (66 mm W x 102 mm L x 64 mm H).
  • Weights (approximate):
  • Product Weigtht: 2.95 Lbs. (1.34 kg).
  • Shipping Weigtht: 3.55 Lbs. (1.61 kg).

Features

  • Operating 0° C to 49° C (32° F to 120° F).
  • Relative Humidity: 85% +/- 5%.
  • Temperature
  • Weights (approximate):
  • BTU/Hr. (approx.): 52 BTU/Hr.
  • Dimensions (approximate):
  • Product Weight: 2.95 Lbs. (1.34 kg).
  • 2.6"W x 4"L x 2.5"H (66 mm W x 102 mm L x 64 mm H).
  • Shipping Weight: 3.55 Lbs. (1.61 kg).
  • Input
  • 115VAC 50/60 Hz, 1A.
  • System AC input VA requirement: 115VA.
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • 24VAC/100VA (4A.) or 28VAC/100VA (3.5A.) supply current.
  • Output

Attributes

Access Type: Transformers

Alternate Codes: T2428100

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Transformers, Wire & Power Supplies

Output Amps: 4/3.5 AMPS

Output Volts: 24/28VAC

Purpose: General

Series: Altronix Accessories and Components

Subtype: Power Supply

Transformer Output: Up to 5 Amps

Transformer Type: AC

Type: Wire-In Transformer
