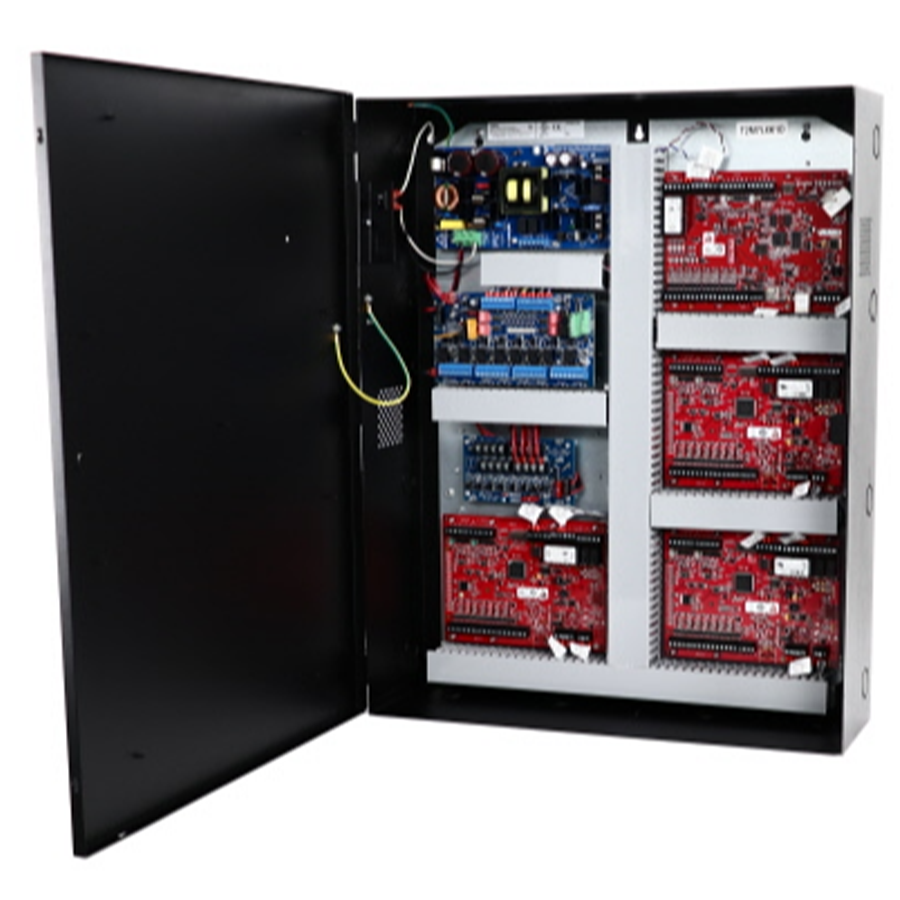

Altronix T2M7LXK1D Altronix 8-Door Access Power Integration Kit with Power Supply Controller

Altronix T2M7LXK1D is an advanced 8-door access and power integration kit designed to elevate security and convenience in various applications. This comprehensive solution includes the AL1024ULXB2 Power Supply/Charger, ACMS8CB Dual Input Access Power Controller, PDS8CB Dual Input Power Distribution Module, and VR6 Voltage Regulator, all housed within the Trove 2 Enclosure. The AL1024ULXB2 provides robust 24VDC output with a continuous current of 10A, featuring overvoltage protection and filtered regulation for reliable operation. With the capacity to support battery backup systems, this kit ensures seamless failover during AC loss. Its dual input controller allows for eight independently controlled PTC outputs, accommodating both fail-safe and fail-secure locking mechanisms. The PDS8CB module offers flexibility by allowing any of its eight outputs to follow multiple power inputs, making it ideal for complex setups. Operating within a wide temperature range of 0° C to 49° C, the T2M7LXK1D is built to perform in demanding environments. This kit simplifies installation with factory-installed wire management and ensures reliable power and control for critical access systems. Elevate your security infrastructure with the Altronix T2M7LXK1D, where power meets precision.

8-Door Altronix/Mercury Access and Power Integration Kit, Includes AL1024ULXB2 Power Supply/Charger, ACMS8CB Dual Input Access Power Controller, PDS8CB Dual Input Power Distribution Module, VR6 Voltage Regulator, RBS1 On/Off Switch, Trove 2 Enclosure, TM2

T2M7LXK1D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK1D accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

Specifications:

• AL1024ULXB2 Power Supply/Charger:
• Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V.
• Output: Voltage: 24VDC Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included):
• Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• Supervision:
• AC Failure: Form "C" contacts.
• Battery: Form "C" contacts.
• Indicators LED:
• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• VR6 Voltage Regulator:
• Input Voltage: 24VDC from AL1024ULXB2.
• Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression.
• Indicators LED Input: 24VDC is present. Output: Powered.
• ACMS8CB Dual Input Access Power Controller:
• Input Voltage: 24VDC from AL1024ULXB2. Input PTC: 9A.
• Outputs:
• Voltage: 24VDC.
• Eight (8) 24VDC independently controlled PTC outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form "C" Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Outputs Ratings: PTCs: 2.5A.
• Indicators (LED): Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered.
• PDS8CB Dual Input Power Distribution Module:
• Input: Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input PTC: 9A.
• Output: Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing.
• Outputs Ratings: PTCs: 2.5A.
• Indicators (LED): DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC.
• Environmental:
• Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 145 BTU/Hr.

Features

• Supervision:
• ACMS8CB Dual Input Access Power Controller:
• Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
• Outputs:
• Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V.
• Battery: Discharged or not connected.
• Input Voltage: 24VDC from AL1024ULXB2.
• Input: Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input PTC: 9A.
• Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F).
• AL1024ULXB2 Power Supply/Charger:
• BTU/Hr (approx.): 145 BTU/Hr.
• Input: 115VAC is present.
• Indicators LED Input: 24VDC is present. Output: Powered.
• a) Fail-Safe and/or Fail-Secure power outputs. Form "C" Relays rated 28VAC or VDC @ 2.5A.
• PDS8CB Dual Input Power Distribution Module:
• Outputs Ratings: PTCs: 2.5A.
• Indicators LED:
• Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression.
• Environmental:
• VR6 Voltage Regulator:
• Indicators (LED): DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC.
• Relative Humidity: Relative Humidity 85% +/- 5%.
• AC Failure: Form "C" contacts.
• Indicators (LED): Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered.
• DC Output: Powered.
• Failover: Upon AC loss, instantaneous.
• Voltage: 24VDC.
• Battery: Form "C" contacts.
• Input Voltage: 24VDC from AL1024ULXB2. Input PTC: 9A.
• Type: Sealed lead acid or gel type.
• Eight (8) 24VDC independently controlled PTC outputs:
• c) Any combination of the above.
• Output: Voltage: 24VDC Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included):
• b) Auxiliary power outputs (unswitched).
• Output: Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing.
