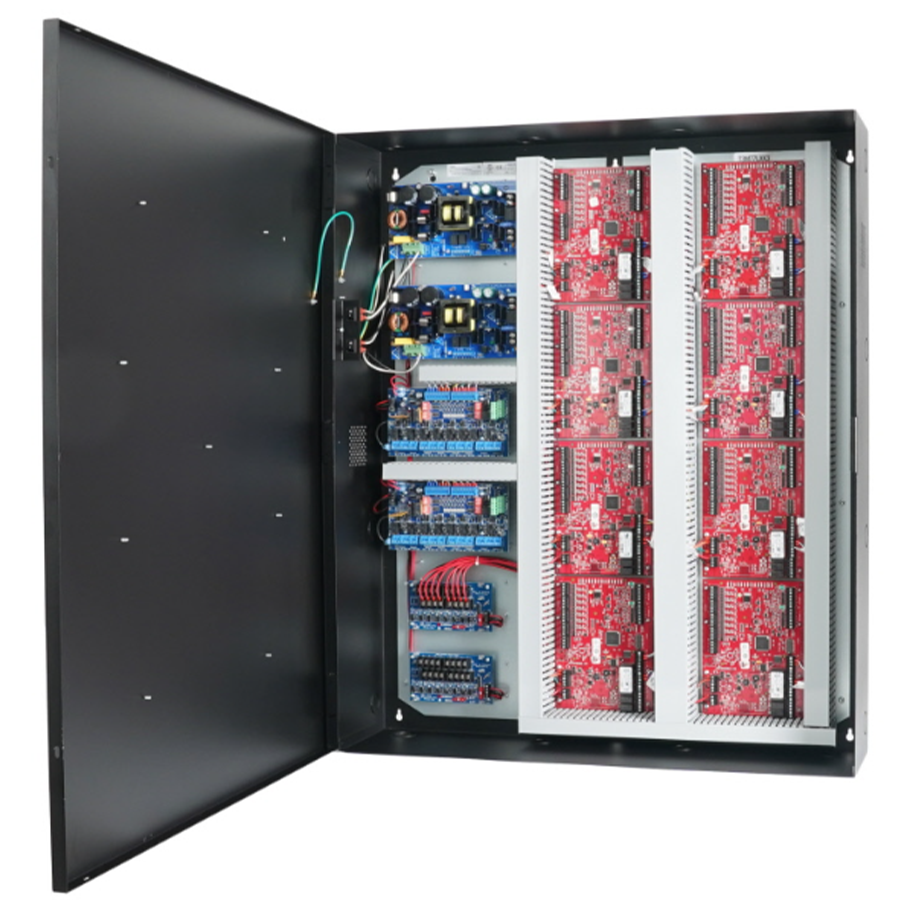

Altronix T3M77LXK3D Trove 3 Power Supply Kit with AL1024ULXB2, ACMS8CB, PDS8CB, VR6, Enclosure

Altronix T3M77LXK3D Trove 3 Power Supply Kit offers a comprehensive solution for access control and power integration, supporting up to 16 doors. This kit includes two AL1024ULXB2 Power Supply/Chargers, two ACMS8CB Dual Input Access Power Controllers, two PDS8CB Dual Input Distribution Modules, and two VR6 Voltage Regulators, all housed in a Trove 3 enclosure with a TM3 backplane. Designed with ease of installation in mind, the T3M77LXK3D features factory-installed wire management and pre-configured terminal blocks, ensuring compatibility with Mercury hardware. Its robust power capability delivers dual voltage outputs, making it suitable for a range of locking devices and controllers. The system efficiently accommodates up to eight Dual Reader Interface Modules, enhancing its versatility. The power supply chargers offer a regulated 24VDC output with overvoltage protection, while the VR6 Voltage Regulators provide a stable 12VDC output. Additionally, the kit includes supervision features for AC failure and battery status, ensuring continuous operation. With an operating temperature range from 0°C to 49°C and a relative humidity tolerance of 85%, the T3M77LXK3D is built to perform in various environments, making it an ideal choice for demanding applications in security and access control.

Trove 3 Power Supply Kit Includes 2 Each AL1024ULXB2 Power Supply/Charger, 2 Each ACMS8CB Dual Input Access Power Controller, 2 Each PDS8CB Dual Input Distribution Module, 2 Each VR6 Voltage Regulator, Trove 3 Encloser, TM3 Backplane

T3M77LXK3D is a 16-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3M77LXK3D accommodates up to eight (8) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

Specifications:

• Two (2) AL1024ULXB2 Power Supply/Chargers:
• Input Voltage: 115VAC, 60Hz, 4.2A max. Main Fuse: 5A / 250V.
• Output: Voltage: 24VDC Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated.
• Battery Backup (not included):
• Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• Supervision:
• AC Failure: Form "C" contacts.
• Battery: Form "C" contacts.
• Indicators LED:
• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• Two (2) VR6 Voltage Regulators:
• Input Voltage: 24VDC from AL1024ULXB2.
• Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression.
• Indicators LED Input: 24VDC is present. Output: Powered.
• Two (2) ACMS8CB Dual Input Access Power Controllers:
• Input Voltage: 24VDC from AL1024ULXB2. Input PTC: 9A.
• Outputs:
• Voltage: 24VDC.
• Eight (8) 24VDC independently controlled PTC outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form "C" Relays rated 28VAC or VDC @ 2.5A.
• b) Auxiliary power outputs (unswitched).
• c) Any combination of the above.
• Outputs Ratings: PTCs: 2.5A.
• Indicators (LED): Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered.
• Two (2) PDS8CB Dual Input Power Distribution Modules:
• Input: Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2. Input PTC: 9A.
• Output: Voltage: 12VDC and/or 24VDC. Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing.
• Outputs Ratings: PTCs: 2.5A.
• Indicators (LED): DC Output: Eight (8) individual output LEDs. Green: 12VDC Red: 24VDC.
• Environmental:
• Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 289 BTU/Hr.
