Arrow Lock APL02-ST-626-UNV Sierra Grade 1 Privacy Indicator Lever, Satin Chrome, 2-3/8in 2-3/4in Backset

Arrow Lock Company APL02-ST-626-UNV Privacy Indicator Sierra Lever Grade 1 combines functionality with modern design, making it an ideal choice for various commercial applications. This cylindrical lock features a unique status indicator with bright red and green symbols, allowing users to easily determine if the door is locked or unlocked at a glance. Designed for retrofit applications, this lock includes a privacy function that automatically unlocks when the inside lever is turned or the door is closed. Its patent-pending design supports a seamless upgrade to enhance privacy without the need for a separate deadbolt, ensuring one-motion egress and preventing lockouts in unoccupied rooms. Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3-hour doors, the APL02-ST-626-UNV meets rigorous strength and durability standards, perfect for high-use environments. The installation process is quick and straightforward, accommodating standard 2-1/8" bore doors with 2-3/8" or 2-3/4" backsets. Suitable for restrooms, quiet rooms, nursing mother’s rooms, dressing rooms, and conference rooms, this lock is crafted to fit doors ranging from 1-3/8" to 1-3/4" thick, with spacers available for thinner doors. Choose the satin chrome finish for a sleek, professional look that complements any interior.

Privacy Indicator Sierra Lever Grade 1, Includes 2-3/8in, 2-3/4in Backset and 1-3/8in Door Spacer, 626/US26D Satin Chrome

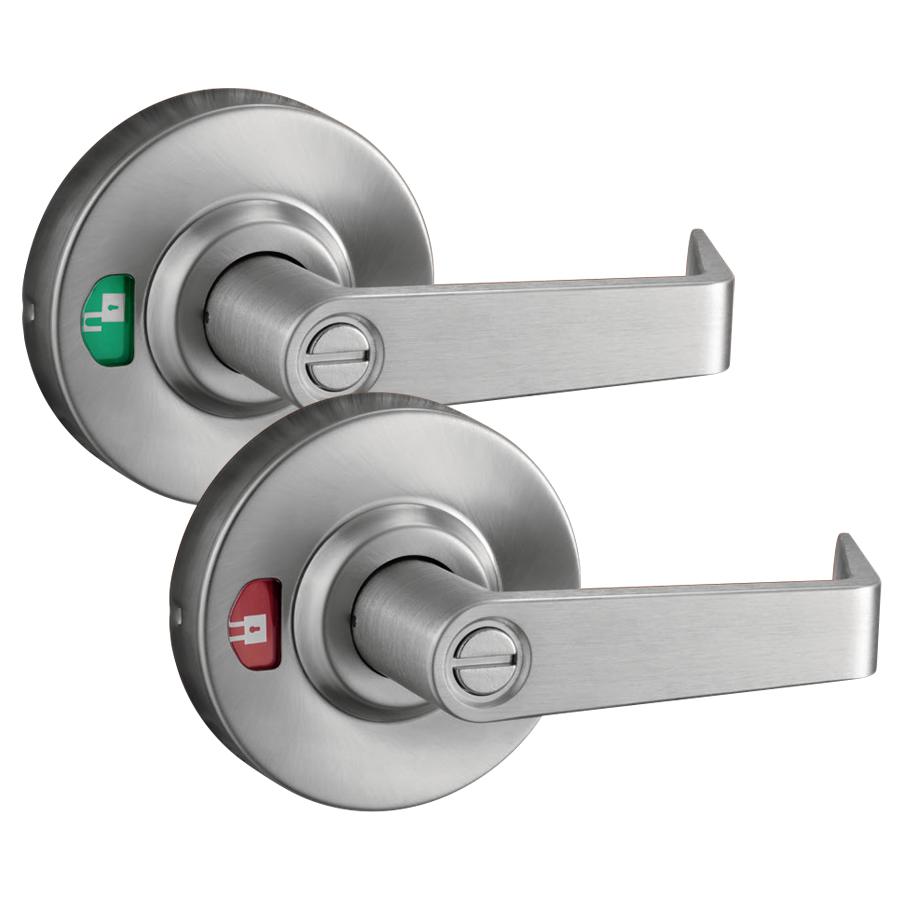

Arrow's APL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

Features:

• Bright red or green window display with padlock icon
• Ideal for retrofit applications
• Privacy function with automatic unlock when rotating inside lever or closing door
• Patent pending design
• Suitable for multiple applications
• Certified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3 hour doors
• 3-year mechanical warranty
• Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
• Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
• Allows for one motion egress and prevents lockouts of unoccupied rooms
• Incorporating indicator in the lock, eliminates the need for a separate deadbolt and allows for one motion egress
• Meets strength and durability standards for high use applications

Applications:

• Restrooms
• Quiet Rooms
• Nursing Mother’s Rooms
• Dressing Rooms
• Conference Rooms

Specifications:

• Door Preparation: Requires standard 2-1/8" (54mm) bore with through bolts.
• Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
• Door Thickness: Fits 1-3/8" to 1-3/4", factory set for 1-3/4". 1-3/8" doors require the use of spacers.
• Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, spring latch
• Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset
• Strike: 4-7/8" (ANSI (124mm)
• Handing: Non-handed

Finishes:

• 605/US3 - Bright Brass
• 613E/US10BE - Dark Oxidized Satin Bronze Equivalent
• 626/US26D - Satin Chromium Plated
• BSP - Black Suede Powder Coat
