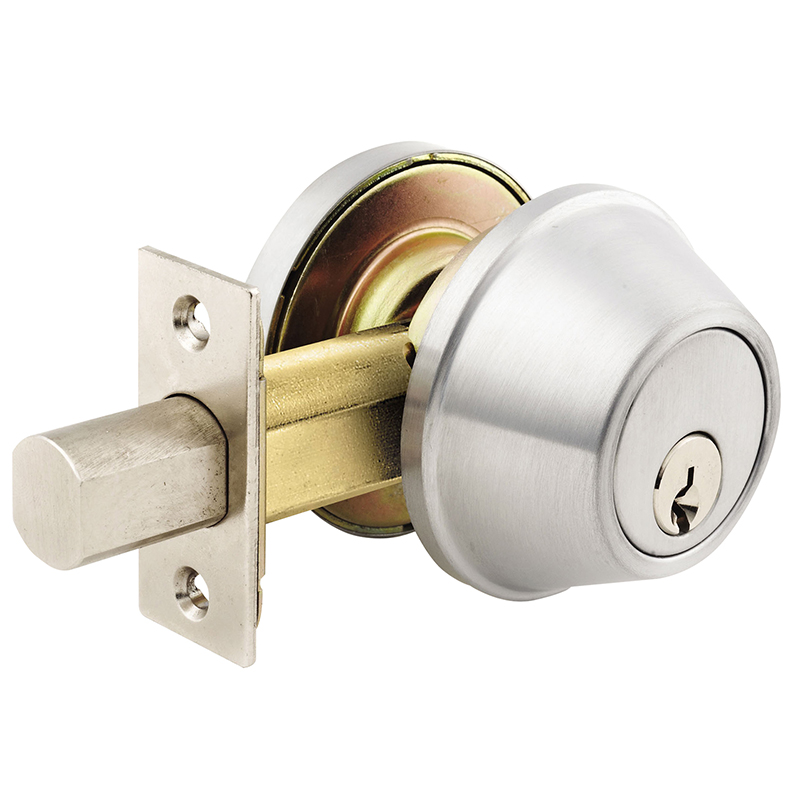

Arrow Lock D61 26D CS Grade 1 Deadbolt

Arrow D61 26D CS Grade 1 Deadbolt delivers exceptional security for industrial, institutional, and commercial applications. This single cylinder deadbolt features a robust construction with a solid steel body and a hardened, free-spinning steel pin, ensuring resilience against forced entry. The Grade 1 rating signifies its extra heavy-duty performance, making it a reliable choice for high-security needs. Designed for versatility, the deadbolt accommodates standard door thicknesses ranging from 1-3/8" to 1-3/4". With a bolt projection of 1 inch, it effectively secures your entry points. The two-piece housing includes a free-spinning outer ring to prevent wrenching, and concealed mounting screws enhance its security profile. The deadbolt is available in a sleek satin chrome finish, adding a touch of elegance while blending seamlessly with various door styles. Equipped with a Schlage C keyway and a 6-pin cylinder, this lock comes with two nickel silver keys and allows for compatibility with small format interchangeable cores. Handing is reversible, providing flexibility in installation. The Arrow D Series D61 is a trustworthy solution for those prioritizing safety and durability in their locking systems.

Grade 1 Deadbolt

Deadbolt, Single Cylinder, Schlage C Keyway, Satin Chrome

Arrow D Series deadlocks are engineered to perform under themost extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

Arrow D Series deadlocks are engineered to perform underthe most extreme conditions where security is critical.

The Arrow D series is a Grade 1 extra heavy duty deadlock that suprasses the demands of industrial, institutional and commercial applications.

• Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset–2-3/8" (60.32mm), 2-3/4" (69.85mm).
• Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
• Handing–All functions are reversible.
• Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best ™ or Falcon™ type cores (except the E41).
