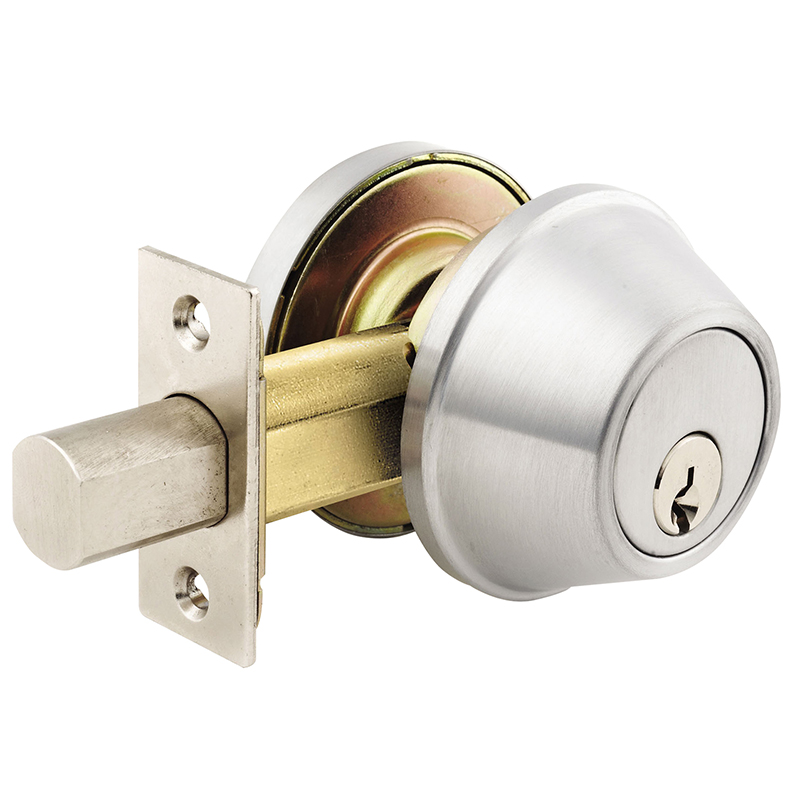

Arrow Lock D61 26D Grade 1 Deadbolt

Arrow D61 26D Grade 1 Deadbolt offers robust security with its single cylinder design and sleek satin chrome finish. Engineered to withstand extreme conditions, this Grade 1 extra heavy-duty deadlock is ideal for industrial, institutional, and commercial applications where safety is paramount. The deadbolt features a solid steel construction with a 1-inch throw, complemented by a hardened, free-spinning steel pin and insert to prevent tampering. Its two-piece housing design includes a free-spinning outer ring that protects against wrenching, while concealed mounting screws ensure a clean installation. Designed for doors ranging from 1-3/8 inches to 1-3/4 inches thick, the Arrow D61 is versatile, accommodating both 2-3/8 inch and 2-3/4 inch backsets. It comes standard with the #346 wood frame strike and offers an optional #345 metal frame strike for added strength. The reversible handing makes it adaptable to various door configurations. The solid brass cylinder features the Arrow "A" keyway with a 6-pin configuration, supplied with two nickel silver keys. Additionally, it accepts 6 or 7 pin small format interchangeable cores, enhancing your locking options. Secure your property confidently with the Arrow D61 Grade 1 Deadbolt.

Grade 1 Deadbolt

Deadbolt, Single Cylinder, Satin Chrome

Arrow D Series deadlocks are engineered to perform under themost extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

Arrow D Series deadlocks are engineered to perform underthe most extreme conditions where security is critical.

The Arrow D series is a Grade 1 extra heavy duty deadlock that suprasses the demands of industrial, institutional and commercial applications.

• Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset–2-3/8" (60.32mm), 2-3/4" (69.85mm).
• Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
• Handing–All functions are reversible.
• Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best ™ or Falcon™ type cores (except the E41).
