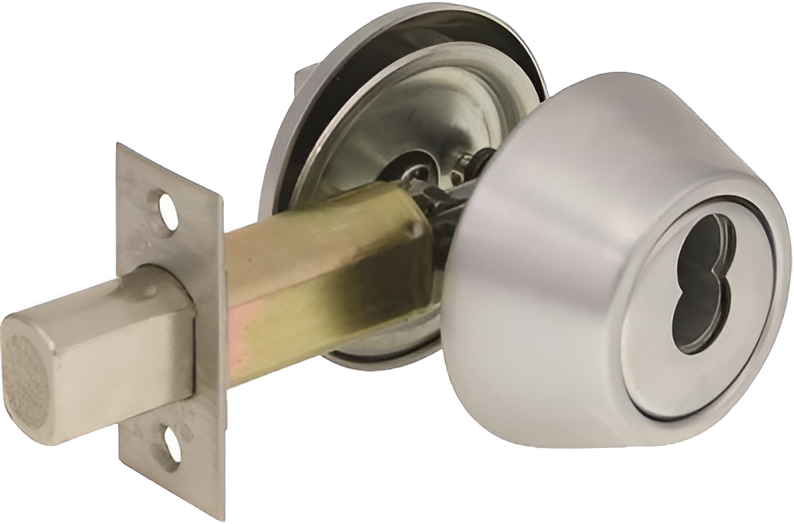

Arrow Lock D61-26D-IC-2 3/4 BS Single Cylinder Deadbolt, SFIC Prep, Less Core, Grade 1, Satin Chrome

Arrow Lock Company D61-26D-IC-2 3/4 BS Deadbolt is designed for those who prioritize security without compromising on quality. This single-cylinder deadbolt features a robust Grade 1 rating, making it ideal for industrial, institutional, and commercial applications. The two-piece housing design incorporates a free-spinning outer ring that effectively prevents wrenching, ensuring maximum durability in high-stress environments. With a solid steel deadbolt that offers a 1-inch (25.40mm) throw, this deadbolt is equipped with a hardened, free-spinning steel pin and insert for added protection. It accommodates standard door thicknesses ranging from 1-3/8 inches (34.925mm) to 1-3/4 inches (44.45mm) and offers both 2-3/8 inch (60.32mm) and 2-3/4 inch (69.85mm) backset options. The D61-26D-IC-2 comes supplied with two nickel silver keys compatible with the Arrow "A" keyway, and it allows for interchangeable cores to accommodate various locking systems. Additional features include concealed mounting screws on double cylinder functions and a standard strike for reinforced security. Certified to ANSI A156.5 Grade 1 standards and UL/CUL listed for 20-minute fire doors, this deadbolt is available in a sleek satin chrome finish (626/US26D), making it both functional and aesthetically pleasing for any commercial setting.

Deadbolt - Single Cylinder, SFIC Prep, Less Core, Grade 1, 626/US26D Satin Chrome

Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

Specifications:

• Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• Deadbolt Fronts:
• 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset
• 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset
• Drive-in Deadbolts are available
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard
• Strikes: Supplied standard with the #346 wood frame strike and BX91D strike reinforcement
• The #345 metal frame strike is optional
• Handing: All functions are reversible
• Cylinder:
• Standard–Solid brass, Arrow "A" keyway, 6 pin cylinder. Supplied with two nickel silver keys
• Available in Schlage CS keyway and other competitive keyways
• Cylinder Options:
• Accepts 6 or 7 pin, small format
• Interchangeable cores
• Supplied less cores
• Will accept Best™ or Falcon™ type cores (except the E41)

Certification:

• ANSI A156.5, Auxiliary Locks, Grade 1
• Underwriters Laboratories (UL and CUL) listed for use on 20 minute fire doors when used in conjunction with a rated primary latching device

Finishes:

• 605/US3/03 - Bright Brass
• 606/US4/04 - Satin Brass
• 609/US5/05A - Antique Brass
• 612/US10/10 - Satin Bronze
• 613/US10B/10B - Dark Oxide Bronze, Oil Rubbed
• 625/US26/26 - Bright Chromium Plated
• 626/US26D/26D - Satin Chromium Plated

Features

• Drive-in Deadbolts are available
• Cylinder Options:
• Will accept Best™ or Falcon™ type cores (except the E41)
• 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset
• Cylinder:
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard
• Deadbolt Fronts:
• Standard–Solid brass, Arrow "A" keyway, 6 pin cylinder. Supplied with two nickel silver keys
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Handing: All functions are reversible
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• The #345 metal frame strike is optional
• Strikes: Supplied standard with the #346 wood frame strike and BX91D strike reinforcement
• Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
• Interchangeable cores
• Accepts 6 or 7 pin, small format
• Supplied less cores
• 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset
• Available in Schlage CS keyway and other competitive keyways
