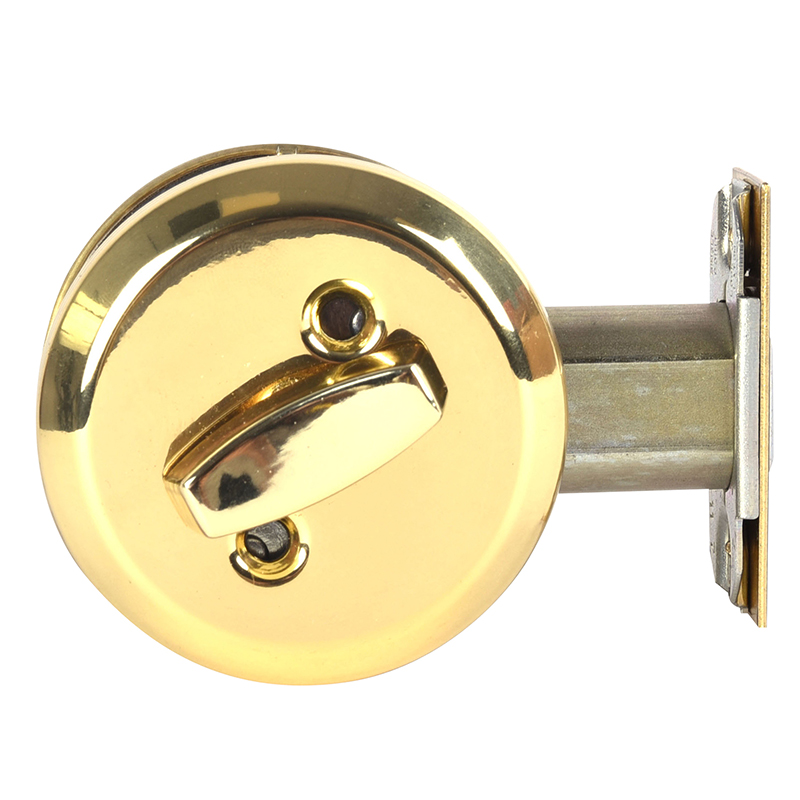

Arrow Lock D61 3 IC Grade 1 Deadbolt

Arrow D61 3 IC Grade 1 Deadbolt delivers exceptional security for high-demand environments, making it an ideal choice for industrial, institutional, and commercial applications. This single-cylinder deadbolt features a durable design, crafted from solid brass with a bright brass finish, ensuring both strength and aesthetic appeal. Engineered for extreme conditions, the Arrow D61 deadbolt boasts a 1-inch throw solid steel deadbolt, complemented by a hardened, free-spinning steel pin to thwart tampering attempts. The two-piece housing includes a free-spinning outer ring that prevents wrenching, while concealed mounting screws maintain a clean look. With options for 2-3/8-inch and 2-3/4-inch backsets, this deadbolt is adaptable to various door configurations, accommodating door thicknesses from 1-3/8 inches to 1-3/4 inches. It comes with a standard wood frame strike (#346) and the BX91D strike reinforcement for added durability. Available in SFIC prep without a core, it accepts both 6 and 7-pin interchangeable cores, including compatibility with Best™ and Falcon™ cores (except E41). Included are two nickel silver keys featuring the Arrow "A" keyway, enhancing convenience and security. Trust the Arrow D61 for robust protection in any setting.

Grade 1 Deadbolt

Deadbolt, Single Cylinder, SFIC Prep, Less Core, Bright Brass

Arrow D Series deadlocks are engineered to perform under themost extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

Arrow D Series deadlocks are engineered to perform underthe most extreme conditions where security is critical.

The Arrow D series is a Grade 1 extra heavy duty deadlock that suprasses the demands of industrial, institutional and commercial applications.

• Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
• Backset–2-3/8" (60.32mm), 2-3/4" (69.85mm).
• Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
• Handing–All functions are reversible.
• Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best ™ or Falcon™ type cores (except the E41).
