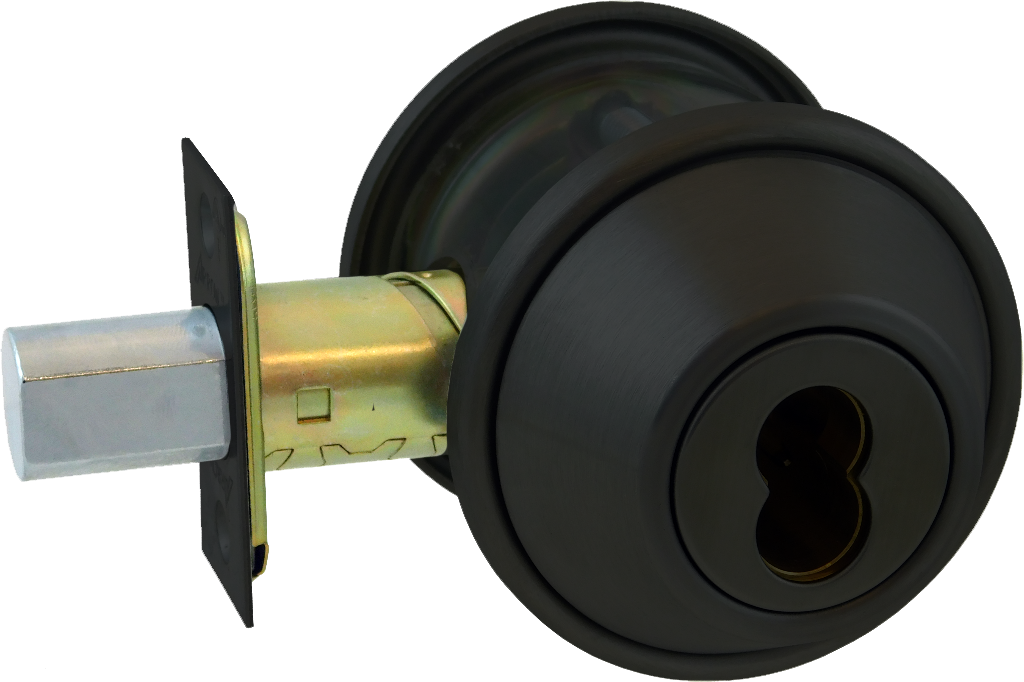

Arrow Lock DBX62-693-IC Double Cylinder Deadbolt, Adjustable Backset, SFIC Prep, Grade 2, Black Suede

Arrow Lock Company DBX62-693-IC Deadbolt combines security and versatility in a sleek design, making it an ideal choice for both commercial and residential applications. This Grade 2 deadbolt features a double cylinder mechanism, ensuring robust protection for your property. Its adjustable backset accommodates door widths ranging from 2-3/8" to 2-3/4", offering flexibility during installation. Crafted with a 1" throw steel deadbolt and a hardened, free-spinning steel pin insert, this unit provides enhanced resistance against forced entry. The solid brass 6-pin cylinder, which comes with two standard brass keys, allows for customization with Arrow "A" or Schlage "C" keyways. Additionally, the optional SFIC lock preparation provides further adaptability to your security needs. Designed for standard door thicknesses of 1-3/8" to 2", the DBX deadbolt also includes a durable steel strike plate for reinforced stability. Finished in an elegant black suede powder coat, this model is not only functional but also stylish. Certified to ANSI/BHMA A156.36 standards and UL/cUL listed for a 3-hour fire rating, the Arrow Lock Company DBX62-693-IC Deadbolt is a reliable choice for safeguarding your home or business. Enjoy peace of mind with this advanced locking solution.

Deadbolt - Double Cylinder, Adjustable Backset, SFIC Prep, Less Core, Grade 2, 693/SPBLK Black Suede Powder Coat

The DBX Series deadbolt is a professional replacement Grade 2 commercial deadbolt. The flexible design offers an adjustable backset in an attractive low profile package. The DBX is ideal for commercial common areas and residential applications.

Specifications:

• Door Thickness:
• Standard cylinder unit – 1-3/8" to 1-3/4" (35mm to 44mm).
• SFIC unit – 1-3/8" to 2" (35mm to 51mm).
• Backset: Adjustable 2-3/8" (60mm) to 2-3/4" (70mm).
• Latch Bolt: 1" (25mm) throw steel deadbolt with hardened, free spinning, steel pin insert.
• Bolt Front: 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (29mm) mortise.
• Steel Strike: 1-1/16" (27mm) x 2-3/4" (70mm) x 0.05" (0.13" (3mm) thick with wood frame reinforcer).
• Cylinder and Keys: Solid brass 6 pin cylinder. Two brass keys furnished standard. Arrow "A" or Schlage "C" keyway available. Optional SFIC lock prep available (less core).
• Packaging: 12 per case.
• Warranty: 1 Year.

Certification:

• Certified ANSI/BHMA A156.36 Auxiliary Locks, Grade 2.
• UL/cUL: All locks listed for 3-hour A label single door, 4' x 8'

Finishes:

• 605/US3 - Bright Brass
• 613E/US10BE - Dark Oxidized Satin Bronze, Electroplated
• 630/US32D - Satin Stainless Steel

Features

• Backset: Adjustable 2-3/8" (60mm) to 2-3/4" (70mm).
• Steel Strike: 1-1/16" (27mm) x 2-3/4" (70mm) x 0.05" (0.13" (3mm) thick with wood frame reinforcer).
• Latch Bolt: 1" (25mm) throw steel deadbolt with hardened, free spinning, steel pin insert.
• Warranty: 1 Year.
• Standard cylinder unit – 1-3/8" to 1-3/4" (35mm to 44mm).
• Cylinder and Keys: Solid brass 6 pin cylinder. Two brass keys furnished standard. Arrow "A" or Schlage "C" keyway available. Optional SFIC lock prep available (less core).
• Packaging: 12 per case.
• Bolt Front: 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (29mm) mortise.
• Door Thickness:
• SFIC unit – 1-3/8" to 2" (35mm to 51mm).
