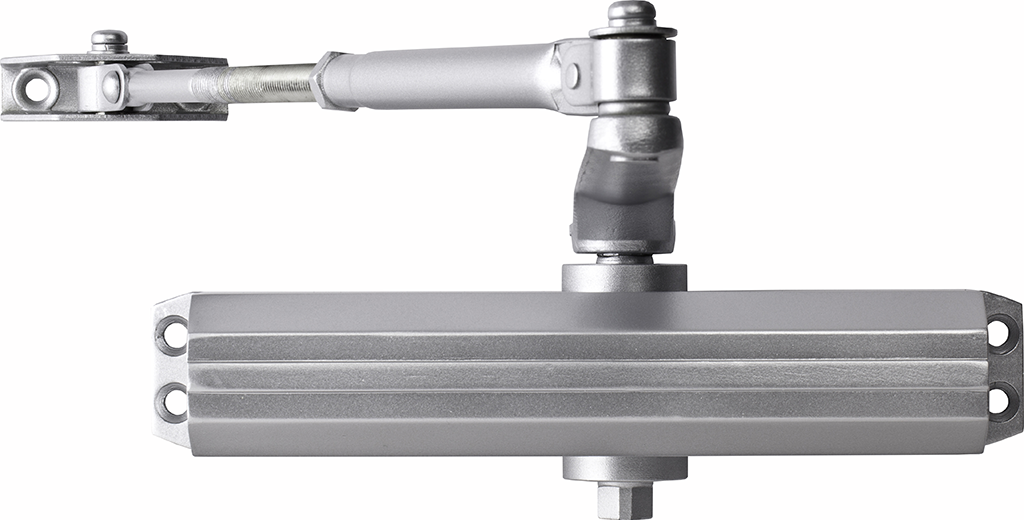

Arrow Lock DCN314-AL Surface Door Closer, Tri-Pack, Adjustable Spring 1-4, Grade 1, Aluminum

Arrow Lock Company DCN314-AL Surface Door Closer is an ideal solution for those seeking a balance of convenience and security without breaking the bank. Designed for retail and office environments, this economical door closer offers a reliable performance that you can trust. The DCN314-AL features an adjustable spring mechanism with settings from 1 to 4, allowing you to customize the closing speed to suit your specific needs. Its cast aluminum body is built to last, and the non-handed design simplifies installation across various mounting applications, including regular, top jamb, and parallel arm configurations. Equipped with two non-critical adjusting valves for sweep and latch control, this door closer ensures smooth operation. The backcheck intensity valve adds an extra layer of protection, making it suitable for high-traffic areas. Additionally, the product is UL and ULC listed and meets ANSI/BHMA A156.4, grade 1 certification, confirming its durability and safety standards. Finish options include painted aluminum (689/AL), dark bronze (690/DBZ), and black (693/BLK), allowing you to match your décor. Backed by a 10-year limited warranty, the Arrow Lock Company DCN314-AL is a smart investment for anyone looking to enhance door security while maintaining aesthetic appeal.

Surface Door Closer, Less Cover, Regular/Parallel Arm (Tri-Pack), Adjustable Spring 1 - 4, Grade 1, 689/AL Painted Aluminum

The DCN300 series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Features:

• Full plastic cover available (sold separately)
• Two non-critical adjusting valves (sweep and latch) control closing speed
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors
• Non-handed for regular, top jamb and parallel arm mount applications
• Backcheck intensity valve
• 10-year limited warranty

Specifications:

• Body Material: Cast aluminum
• Door Thickness (Standard): 1 3/4"
• Handing: Non-handed
• Minimum Door Thickness: 1 3/4"
• UL Listed: Yes
• ULC Listed: Yes
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Top jamb
• Provides the best alternative to the regular arm application
• Must be sufficient frame face and/or ceiling clearance for this application
• Provides the best door control for doors in exterior walls that swing out of a building
• DCN314, DCN325, DCN304, DCN305:
• Mounting Type: Regular arm
• Most power-efficient application for a door closer
• Sufficient frame, door and/or ceiling clearance must be considered
• DCN325, DCN304, DCN305:
• Mounting Type: Parallel arm
• Provides the most appealing design appearance for a surface-mounted door closer having a double lever arm
• In the closed position, there is very little or no hardware projecting beyond the frame face in most situations

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark bronze
• 693/BLK - Black
