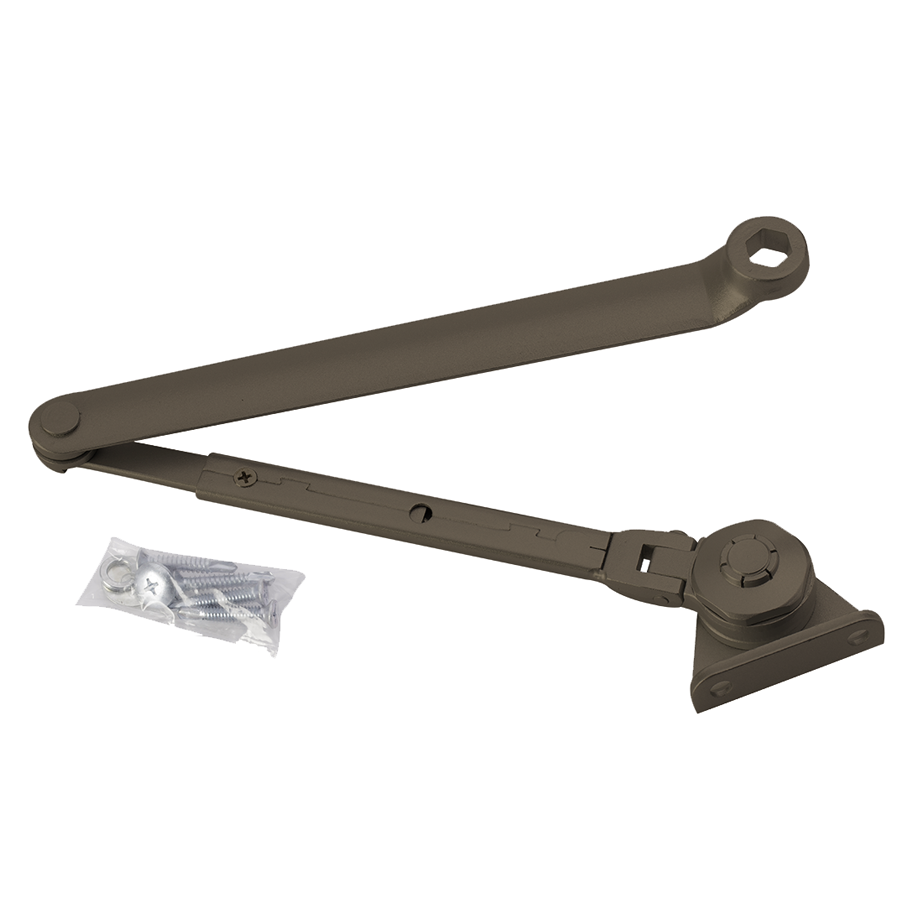

Arrow Lock DCN500A1-DKBZ Standard Hold Open Arm for DCN500, 690/DKBZ Painted Dark Bronze

Arrow Lock Company DCN500A1-DKBZ Standard Hold Open Arm for DCN500 offers a robust solution for high-traffic environments, combining durability with user-friendly functionality. Specifically designed for the DCN500 Series Heavy Duty Surface Applied Door Closers, this hold open arm is ideal for institutions seeking value and versatility in their hardware. Constructed from heavy-duty cast iron, the arm features a hardened steel rack and pinion, ensuring longevity and reliable performance. The design includes high tensile steel springs and staked valves, providing precise control over the closing speed with two non-critical adjusting valves. Users can easily adjust the backcheck intensity, making it suitable for various door widths from 24 to 60 inches, depending on the mounting style. The DCN500A1-DKBZ is non-handed, accommodating regular, top jamb, and parallel arm mount applications, and comes complete with fully threaded self-reaming screws and machine nuts for easy installation. Finished in a stylish painted dark bronze, this arm not only meets the requirements of ANSI A156.4 and ADA standards but also boasts UL/cUL listings for added safety assurance. With a ten-year limited warranty, the Arrow Lock Company DCN500A1-DKBZ provides both peace of mind and dependable performance for any commercial setting.

Standard Hold Open Arm for DCN500, 690/DKBZ Painted Dark Bronze

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
