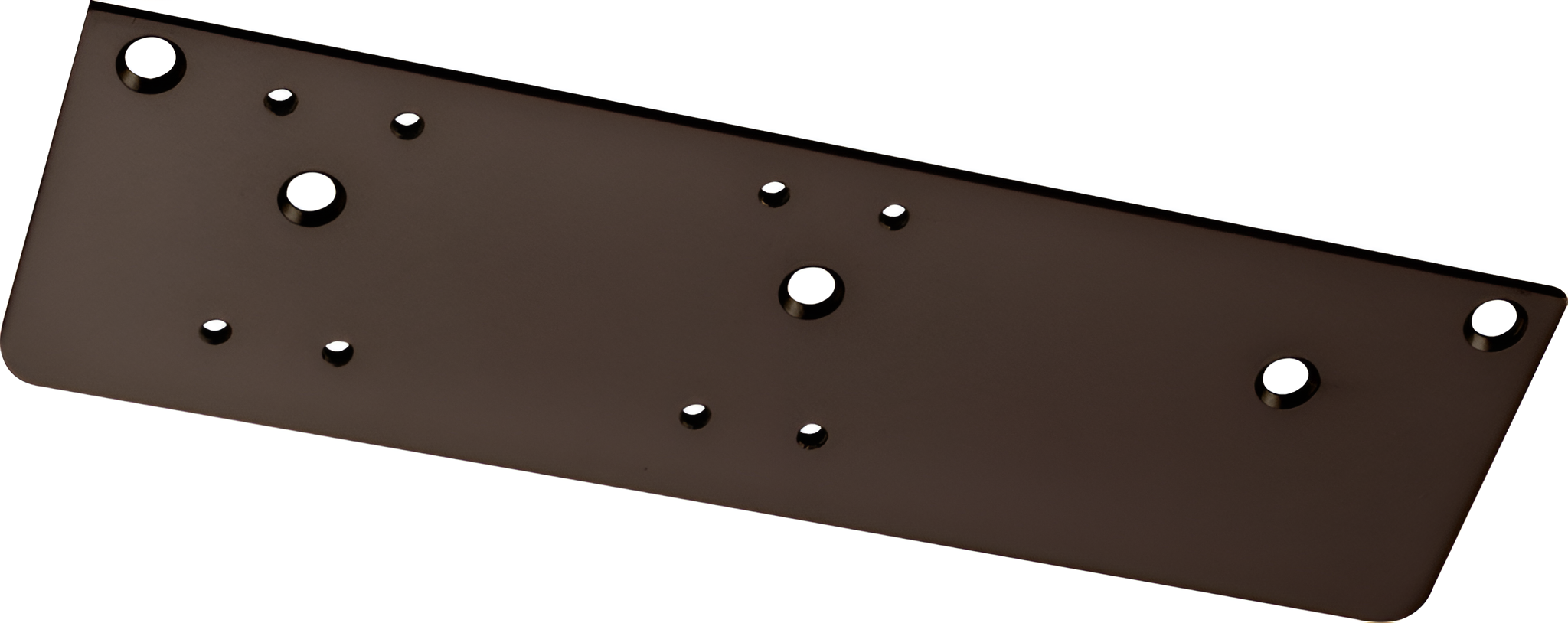

Arrow Lock DCN500DP-DKBZ Standard Drop Plate for DCN500, 690/DKBZ Painted Dark Bronze

Arrow Lock Company DCN500DP-DKBZ Standard Drop Plate is a vital component designed specifically for the DCN500 series door closers, ensuring seamless installation and enhanced performance. Crafted from durable materials and finished in a painted Dark Bronze, this drop plate is not only aesthetically pleasing but also robust enough to withstand the demands of high-traffic environments. Ideal for institutions and commercial applications, the DCN500 series is known for its heavy-duty cast iron body and hardened steel rack and pinion, providing reliability and longevity. The drop plate supports various mounting configurations, making it versatile for regular, top jamb, and parallel arm applications. It is compatible with interior door widths ranging from 24" to 60", accommodating diverse setups. The DCN500 series features adjustable valves that control the closing speed, ensuring safety and convenience. Additionally, it comes with a 10-year limited warranty, highlighting Arrow Lock's commitment to quality. UL/cUL listed and compliant with ANSI and ADA requirements, this drop plate is an essential addition for professionals seeking dependable and efficient door closure solutions. Upgrade your installation with the Arrow Lock Company DCN500DP-DKBZ Standard Drop Plate and experience the perfect blend of functionality and style.

Standard Drop Plate for DCN500, 690/DKBZ Painted Dark Bronze

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
