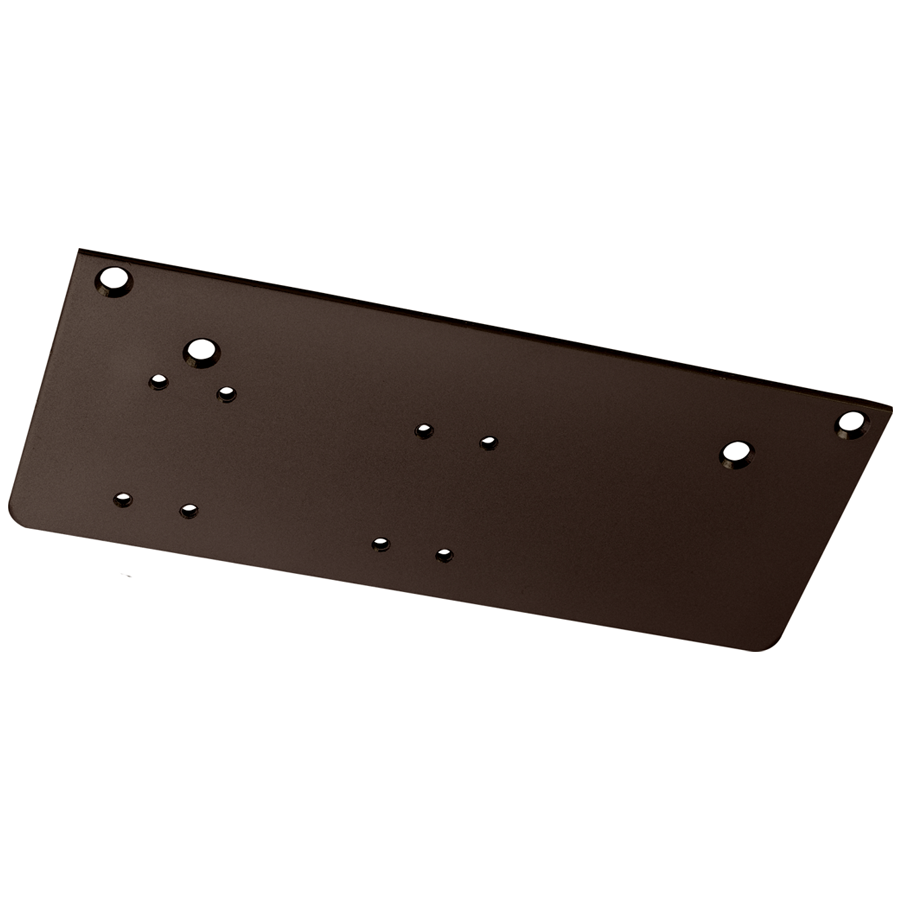

Arrow Lock DCN500DP1-DKBZ Parallel Drop Plate for DCN500, 690/DKBZ Painted Dark Bronze

Arrow Lock Company DCN500DP1-DKBZ Parallel Drop Plate is an essential accessory designed for the DCN500 Series Heavy Duty Surface Applied Door Closers. This parallel drop plate is specifically crafted to enhance the installation and performance of door closers in high-traffic environments, making it ideal for institutions and various commercial applications. Constructed from durable materials, the DCN500DP1-DKBZ ensures longevity and reliability, allowing for smooth and efficient door operation. It features a painted dark bronze finish, providing an aesthetically pleasing look that complements a range of settings. The parallel design allows for versatile mounting options, ensuring compatibility with a variety of door widths, including those from 24 inches to 60 inches. This drop plate is designed for easy installation and includes all necessary hardware, so you can get your door closer operational quickly. With a focus on quality, Arrow Lock Company backs this product with a 10-year limited warranty, giving you peace of mind in your investment. For a secure, durable, and efficient door closing solution, the Arrow Lock Company DCN500DP1-DKBZ Parallel Drop Plate is the ideal choice for building professionals and knowledgeable homeowners who prioritize both functionality and style.

Parallel Drop Plate for DCN500, 690/DKBZ Painted Dark Bronze

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
