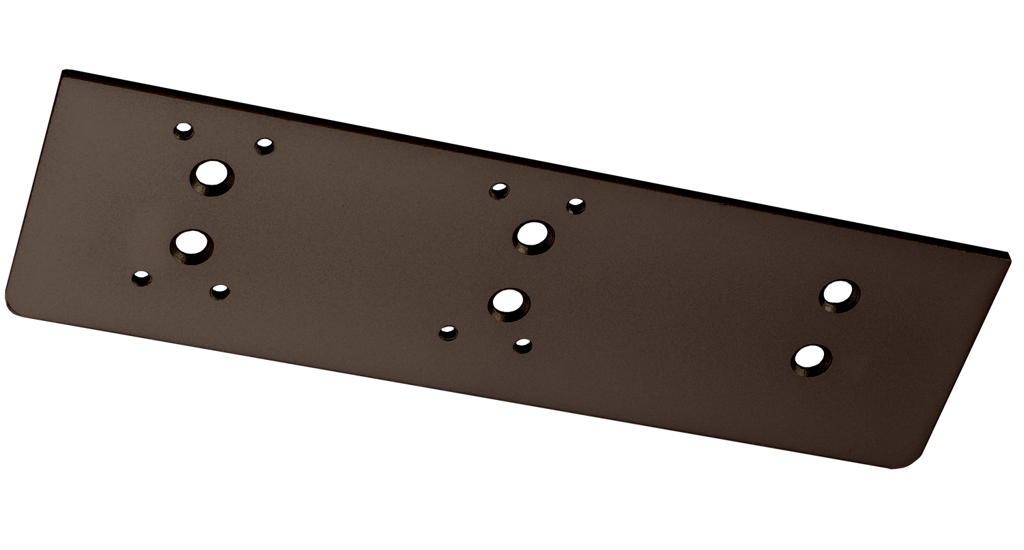

Arrow Lock DCN500DP2-DKBZ Drop Plate Top Jamb Mount for DCN500, 690/DKBZ Painted Dark Bronze

Arrow Lock Company DCN500DP2-DKBZ Drop Plate Top Jamb Mount is designed to enhance the functionality of the DCN500 Series Heavy Duty Surface Applied Door Closers. Crafted for high-traffic environments, such as institutions, this drop plate provides a reliable and versatile mounting solution that promises durability and ease of use. The robust construction includes a heavy-duty cast iron body complemented by hardened steel components, ensuring long-lasting performance even in demanding conditions. With non-critical adjusting valves for both sweep and latch, users can easily control closing speeds to suit their specific needs. The backcheck intensity valve further adds to the product's operational flexibility. Designed for various mounting applications-regular, top jamb, and parallel arm-the DCN500DP2-DKBZ is non-handed and adaptable, making it suitable for a wide range of door widths. Installation is straightforward with the inclusion of fully threaded self-reaming/tapping screws, machine nuts, and through-bolts for 1-3/4" thick doors. Available in a painted dark bronze finish, the DCN500DP2-DKBZ meets rigorous standards, including UL/cUL listing and ADA compliance, ensuring safety and accessibility. Backed by a 10-year limited warranty, this drop plate is a dependable choice for building professionals and savvy homeowners alike.

Drop Plate Top Jamb Mount for DCN500, 690/DKBZ Painted Dark Bronze

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
