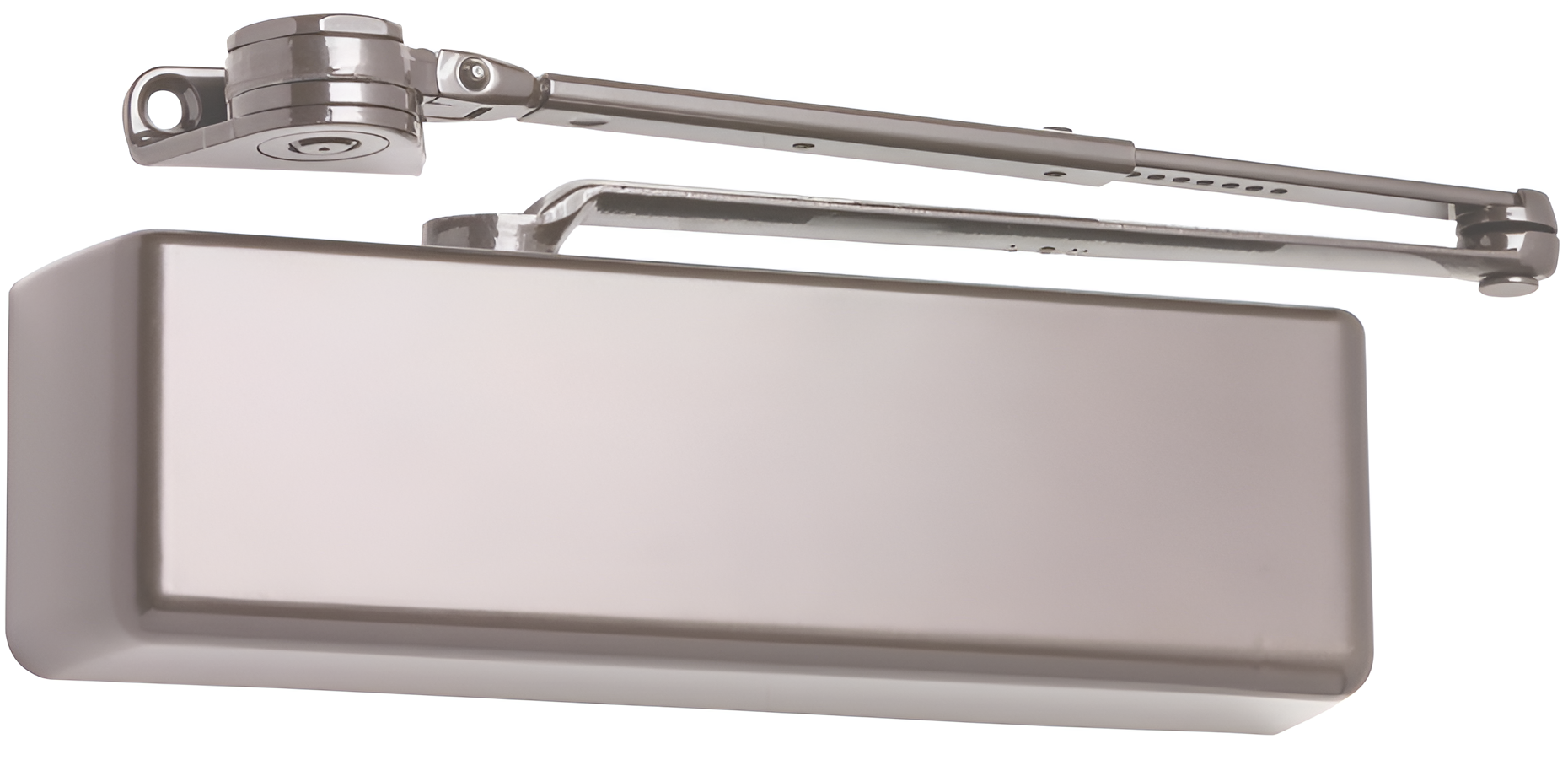

Arrow Lock DCN516-1-AL Heavy Duty Surface Door Closer, Hold Open Arm, Adjustable Spring Size 1-6

Arrow Lock Company DCN516-1-AL Heavy Duty Surface Door Closer is engineered for high-traffic environments, making it an excellent choice for institutions and commercial buildings. This robust door closer features a heavy-duty cast iron body and hardened steel rack and pinion, ensuring durability and reliability under constant use. With an adjustable spring size ranging from 1 to 6, it accommodates a variety of door sizes, making it versatile for multiple applications. The DCN516-1-AL includes a hold open arm, allowing doors to remain open at desired angles, enhancing accessibility and convenience. Its non-handed design permits regular, top jamb, and parallel arm mounting, providing flexibility during installation. The full plastic cover not only adds aesthetic appeal but also protects internal components from dust and damage. This door closer includes two non-critical adjusting valves to control closing speed and a backcheck intensity valve for added safety. It meets rigorous standards, being UL/cUL listed and compliant with ANSI A156.4 and ADA requirements, ensuring it’s suitable for various building codes. Offered in a painted aluminum finish (689/AL), the DCN516-1-AL is packaged with necessary installation hardware and comes with a 10-year limited warranty, making it a smart investment for secure and efficient door management.

Heavy Duty Surface Door Closer, Hold Open ArmParallel Bracket, Full Plastic Cover, Adjustable Spring Size 1-6, Grade 1, 689/AL Painted Aluminum

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
