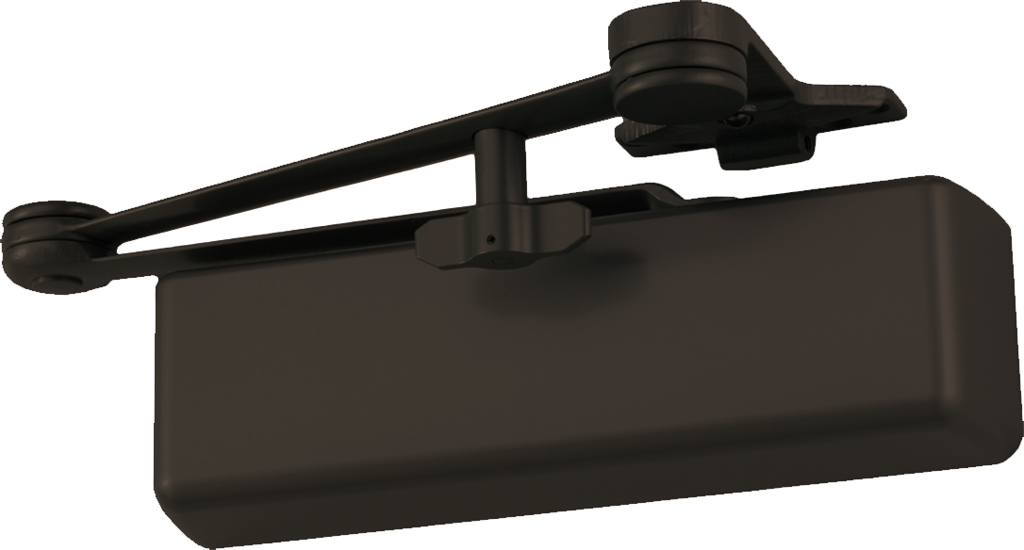

Arrow Lock DCN516-3-DKBZ Heavy Duty Surface Door Closer with Hold Open Arm, Adjustable Spring, Dark Bronze

Arrow Lock Company DCN516-3-DKBZ Heavy Duty Surface Door Closer offers a robust solution for high traffic areas, ensuring reliable performance in institutional and commercial settings. This door closer is engineered with a heavy-duty cast iron body and features hardened steel rack and pinion mechanisms, ensuring longevity and resilience against wear and tear. Designed for versatility, the DCN516-3-DKBZ is equipped with a hold open arm and a thumb turn, allowing users to maintain door positioning between 90° and 110°. The adjustable spring size, ranging from 1 to 6, accommodates various door widths, making it suitable for doors from 24 to 60 inches wide. With its non-handed design, installation is straightforward across regular, top jamb, and parallel arm mounts. This door closer has been rigorously tested and is UL/cUL listed, complying with ANSI A156.4 standards and ADA requirements, ensuring accessibility for all. The unit features staked valves and two non-critical adjusting valves for customizable closing speed, along with a backcheck intensity valve for enhanced control. Finished in a stylish painted dark bronze, the DCN516-3-DKBZ not only delivers functionality but also complements any architectural design. Backed by a 10-year limited warranty, it provides peace of mind for both building professionals and homeowners alike.

Heavy Duty Surface Door Closer, Hold Open Arm Thumb Turn, Full Plastic Cover, Adjustable Spring Size 1-6, Grade 1, 690/DKBZ Painted Dark Bronze

The DCN500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications.

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves.
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
• DCN5xx-1 Series door closers are supplied with a hold open arm.
• DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°
• DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Certification:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997)
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1
• Meets ADA requirements (Americans with Disabilities Act)

Specifications:

• Interior Door Width:
• Regular Arm & Tob Jamb
• 1: 24" (610mm) to 30" (762mm)
• 2: 30" (762mm) to 34" (865mm)
• 3: 34" (865mm) to 38" (965mm)
• 4: 38" (965mm) to 48" (1219mm)
• 5: 48" (1219mm) to 54" (1372mm)
• 6: 54" (1372mm) to 60" (1524mm)
• Parallel Arm
• 2: 24" (610mm) to 30" (762mm)
• 3: 30" (762mm) to 34" (865mm)
• 4: 34" (865mm) to 38" (965mm)
• 5: 38" (965mm) to 48" (1219mm)
• 6: 48" (1219mm) to 54" (1372mm)
• Exterior & Vestibule Door Width:
• Regular Arm & Tob Jamb
• 3: 24" (610mm) to 30" (762mm)
• 4: 30" (762mm) to 36" (914mm)
• 5: 36" (914mm) to 42" (1067mm)
• 6: 42" (1067mm) to 48" (1219mm)
• Parallel Arm
• 4: 24" (610mm) to 30" (762mm)
• 5: 30" (762mm) to 36" (914mm)
• 6: 36" (914mm) to 42" (1067mm)

Finishes:

• 689/AL - Aluminum
• 690/DBZ - Dark Bronze
• 693/BLK - Black
