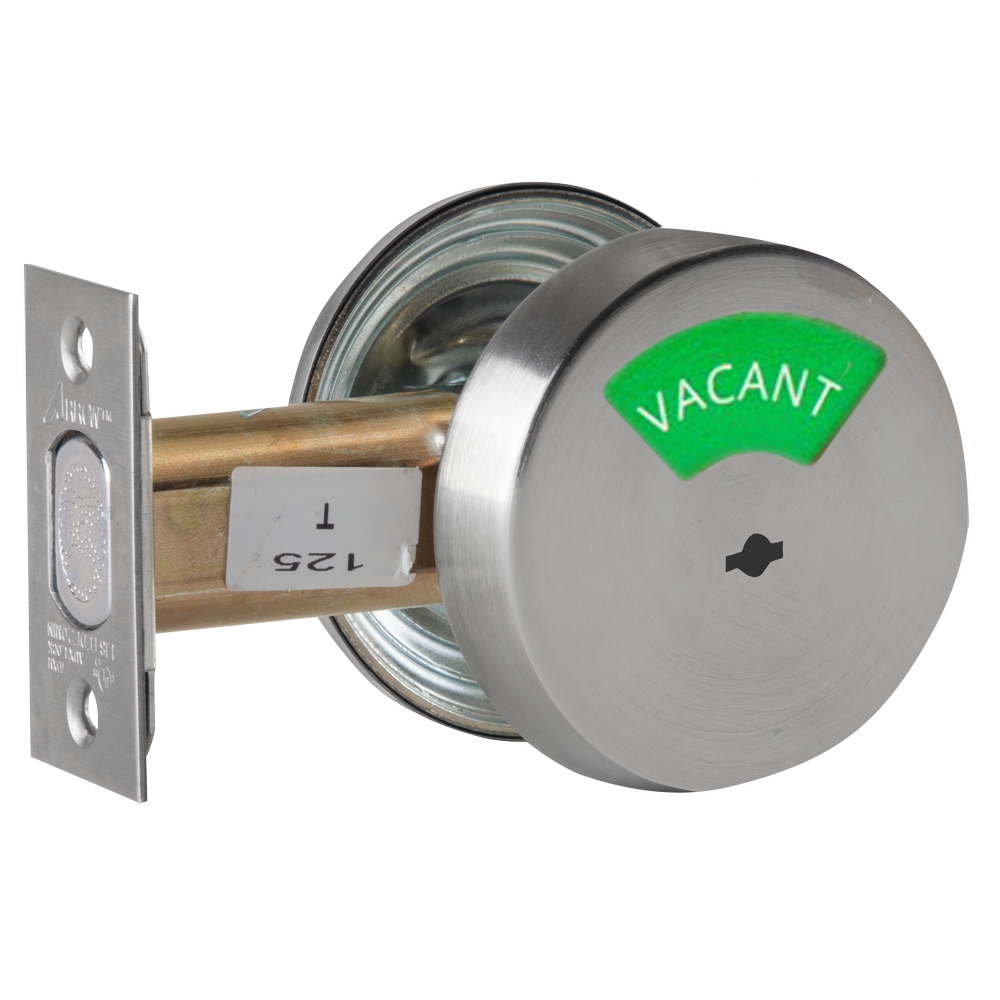

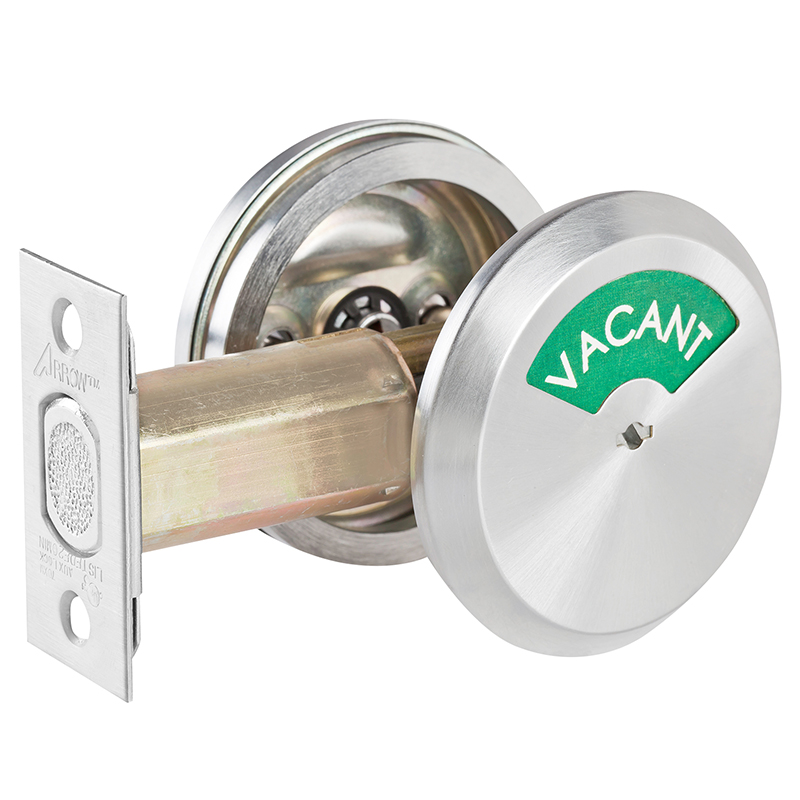

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Attributes
Alternate Codes: E50-26D, E5026D
Backset: 2-3/8"-2-3/4"
Bolt Protection: 1 In.
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Occupancy Indicator
Certifications: A156.5, ANSI, UL/cUL Listed 3 Hour
Cylinder Type: Non-keyed
Cylinders Present: Non-keyed
Deadbolt Functions: Thumb Turn x Indicator Plate
Door Application: Commercial Deadbolts
Door Bore Prep: Deadbolt Lockset 2.125in Prep
Door Thickness: 1-3/8" - 1-3/4"
Finish: 626/US26D
Finish Code: 26D
Finish Description: Satin Chrome
Function: 50-Indicator Deadbolt
Grade: Grade 2
Hand: Field Reversible
Handing: Field Reversible
Key Quantity: 2
Keying: Keyed Different
Keyway: Arrow AR
Latch Backset Dim: 2-3/8 In.
Latch Number: 141
Latch Type: Deadbolt
Latchbolt Type: Deadlatch
Limited Warranty: 1 Year
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer: Arrow Lock Company
Manufacturer Function: E50

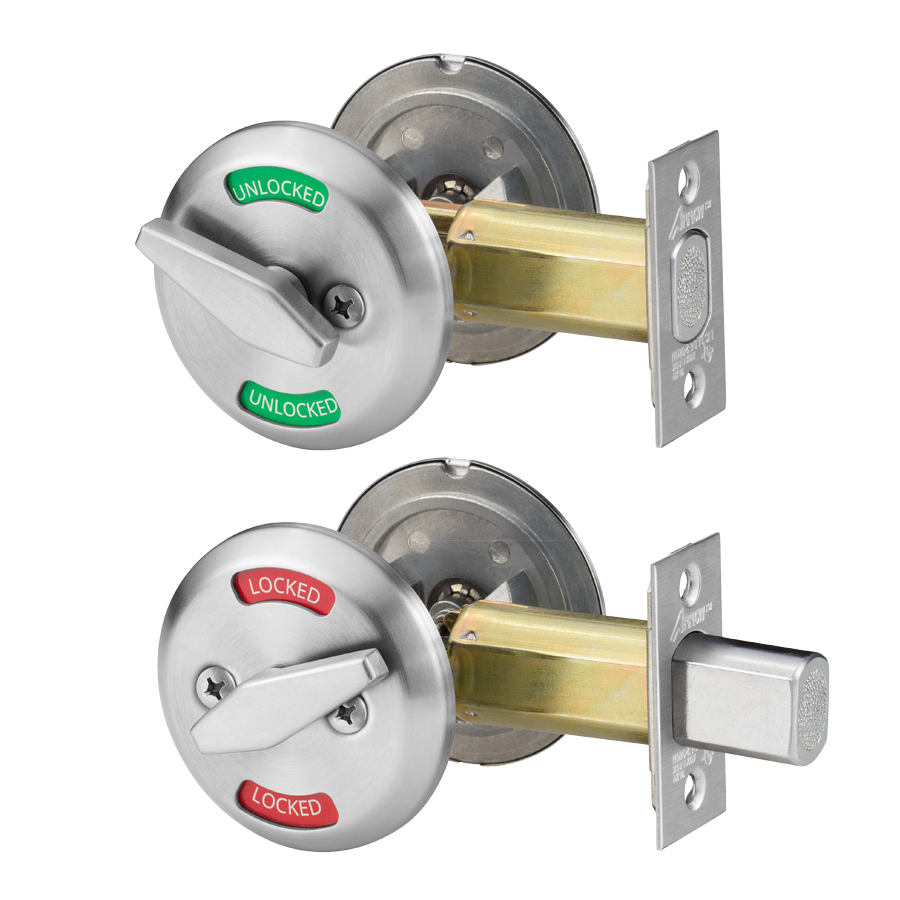

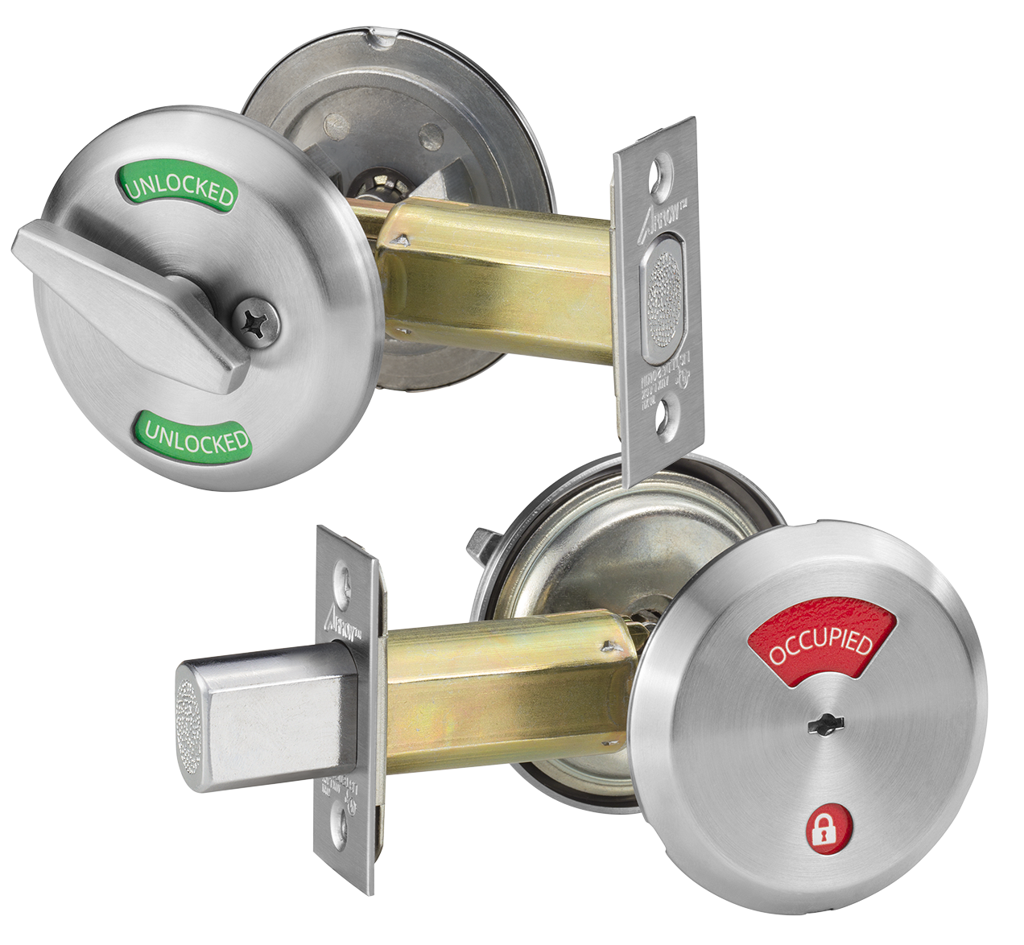

Manufacturer Function Description: Occupancy Indicator, VACANT/OCCUPIED Indicator For Outside Of Door, UNLOCKED/LOCKED Indicator For Inside Of Door, Text Red/Green
Material: Steel
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Screws: Combination
Series: E
Strike Dimensions: 2-3/4" x 1-1/8"
Strike Height: 2-3/4 In.
Strike Number: 346
Strike Style: Square Corner
Strike Type: Flat
Strike Width: 1-1/8 In.
Structure Function: 50
Structure Outside Finish: 3
Structure Series: E
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
