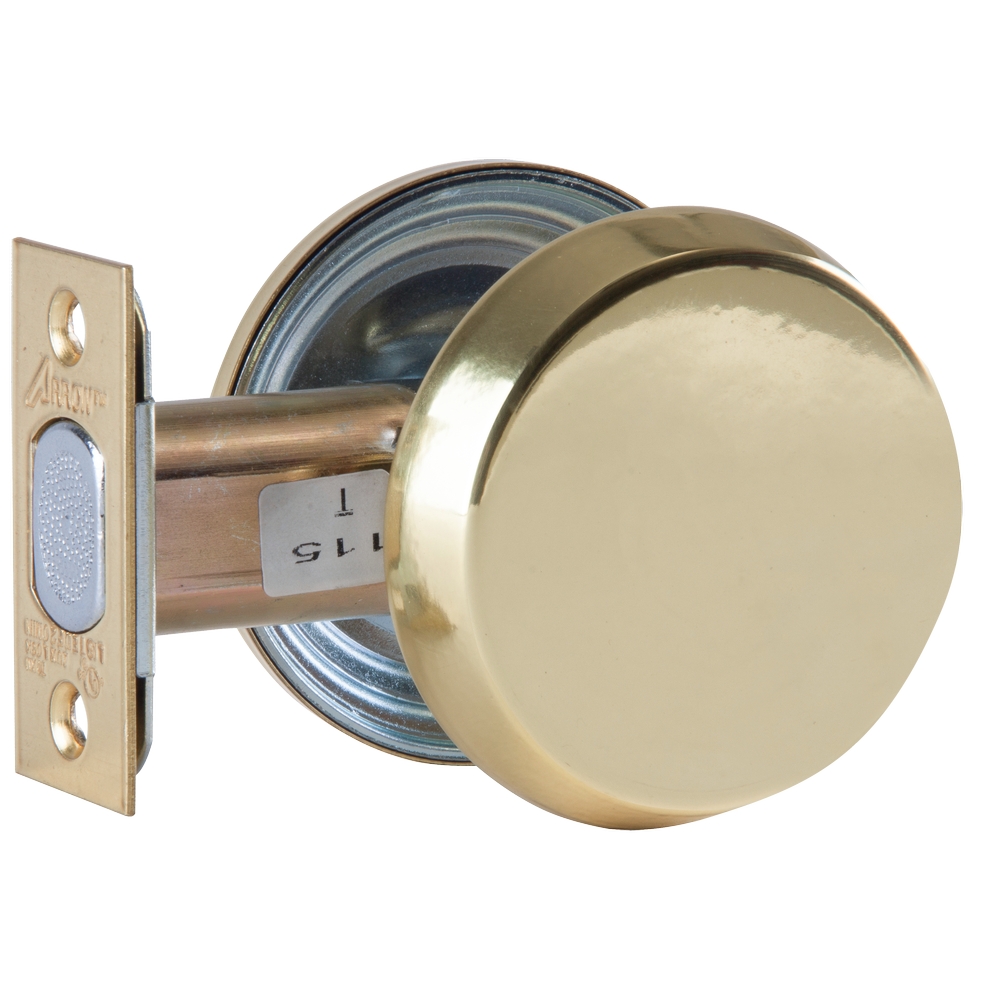

Arrow Lock E60 3 Grade 2 Deadbolt

Arrow E60 3 Grade 2 Deadbolt offers exceptional security with its robust construction and thoughtful design. This Grade 2 exit deadlock features a non-keyed mechanism and a striking bright brass finish, ensuring both durability and aesthetic appeal. The two-piece housing includes a free-spinning outer ring to prevent unauthorized wrenching, while concealed mounting screws enhance its security profile. The solid steel deadbolt boasts a 1-inch throw and a hardened steel pin insert, making it resistant to tampering. Designed for doors ranging from 1-3/8 inches to 1-3/4 inches thick, the E60 is adaptable to various installations. It comes with a standard #395 strike pack suitable for both metal and wood applications, while its field-reversible handing allows for easy customization. With a backset of 2-3/8 inches or 2-3/4 inches, this deadbolt meets ANSI A156.5 standards for auxiliary locks and is UL listed for use with A label or lesser doors when paired with a rated primary latching device. The product accepts 6 or 7 pin interchangeable cores, adding versatility to your locking system. For peace of mind, the Arrow E60 is backed by a one-year limited warranty, making it a reliable choice for both commercial and residential applications.

Grade 2 Deadbolt

Grade 2 Exit Deadlock, Non-keyed, Bright Brass Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.

Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:

• 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
• 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes: Supplied standard with #395 strike pack (metal and wood).

Handing: All functions are reversible.

Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.

Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish: US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
