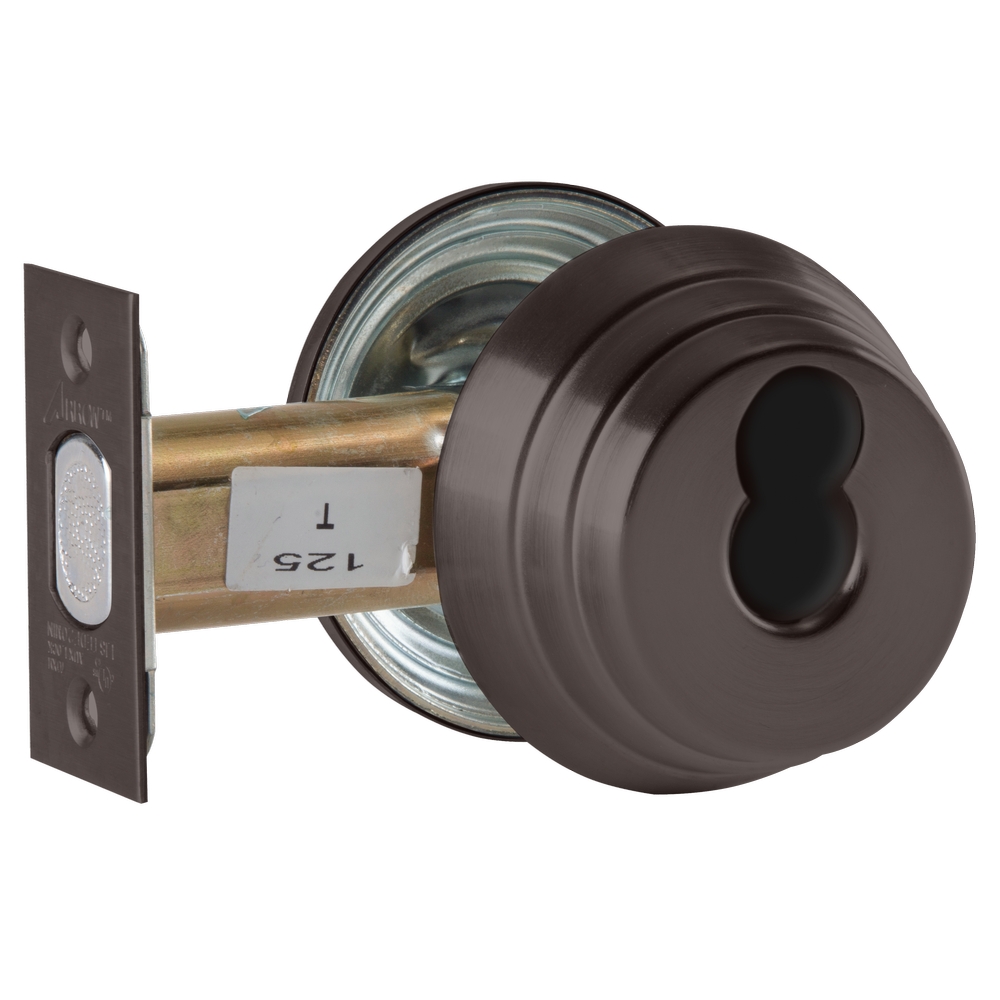

Arrow Lock E61 10B IC Grade 2 Deadbolt

Arrow E61 10B IC Grade 2 Deadbolt combines exceptional security features with a sleek design, making it an ideal choice for both commercial and residential applications. This Grade 2 single cylinder deadlock is equipped with an SFIC prep less core and presents a dark oxidized satin bronze oil-rubbed finish, ensuring both durability and aesthetic appeal. The E Series deadlocks are renowned for their value, quality, and reliability. Key security features include a tamper-resistant rotating wrench-proof collar, a solid steel deadbolt with a hardened steel pin insert, and concealed mounting screws, which collectively enhance security in demanding environments. The two-piece housing, complemented by a free-spinning outer ring, effectively prevents wrenching. Designed to accommodate doors ranging from 1-3/8" to 1-3/4" thick, this deadbolt supports two standard backsets: 2-3/8" and 2-3/4". It comes with a #395 strike pack suitable for both metal and wood doors, ensuring compatibility across various applications. The installation is straightforward, with reversible handing for ease of use. With a bolt projection of 1" and supplied with two keys, the Arrow E61 is a reliable solution for enhanced security, backed by a limited 1-year warranty. Elevate your door security with this trusted deadbolt from Arrow.

Grade 2 Deadbolt

Grade 2 Single Cylinder Deadlock, SFIC Prep Less Core, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.

Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:

• 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
• 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes: Supplied standard with #395 strike pack (metal and wood).

Handing: All functions are reversible.

Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.

Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish: US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
