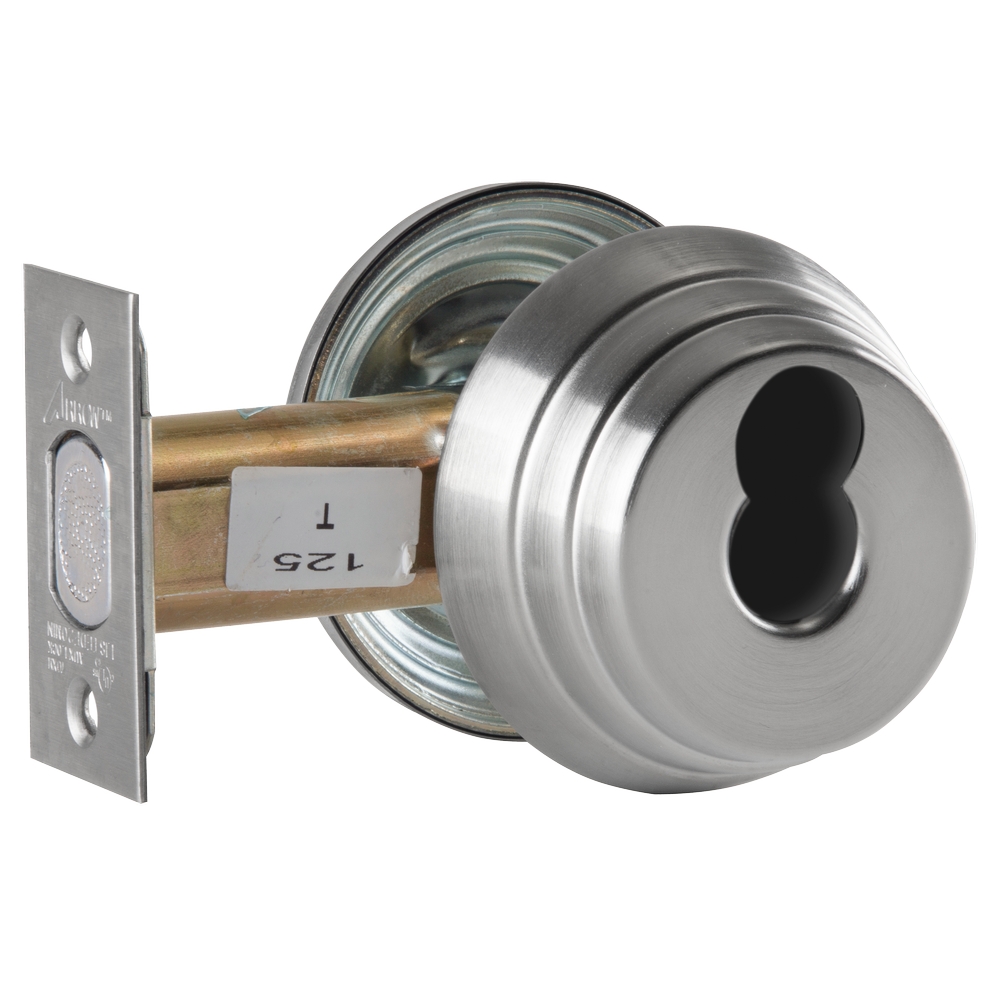

Arrow Lock E61 26D IC Grade 2 Deadbolt

Arrow E61 26D IC Grade 2 Deadbolt offers a robust solution for securing both commercial and residential spaces. This Grade 2 single cylinder deadlock features a sleek satin chrome finish, ensuring both style and durability. Designed with a field-reversible mechanism, it accommodates various door configurations, making installation straightforward. The E Series deadlocks are known for their exceptional value and quality. The tamper-resistant, rotating wrench-proof collar enhances security, while the solid steel deadbolt throw, measuring 1 inch, is equipped with a hardened steel pin insert for added strength. Concealed screws provide an extra layer of protection against tampering. This deadbolt fits doors ranging from 1-3/8 inches to 1-3/4 inches thick and supports standard backsets of 2-3/8 inches or 2-3/4 inches. It comes with a #395 strike pack, suitable for both metal and wood applications. The cylinder is SFIC prep less core, drilled for six pins, and includes two keys, with the option to accept interchangeable cores from manufacturers like Best™ and Falcon™. Compliant with ANSI A156.5 standards and UL listed, the Arrow E61 26D deadbolt combines security, durability, and ease of use, making it a top choice among building professionals.

Grade 2 Deadbolt

Grade 2 Single Cylinder Deadlock, SFIC Prep Less Core, Satin Chrome Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.

Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:

• 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
• 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes: Supplied standard with #395 strike pack (metal and wood).

Handing: All functions are reversible.

Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.

Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish: US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
