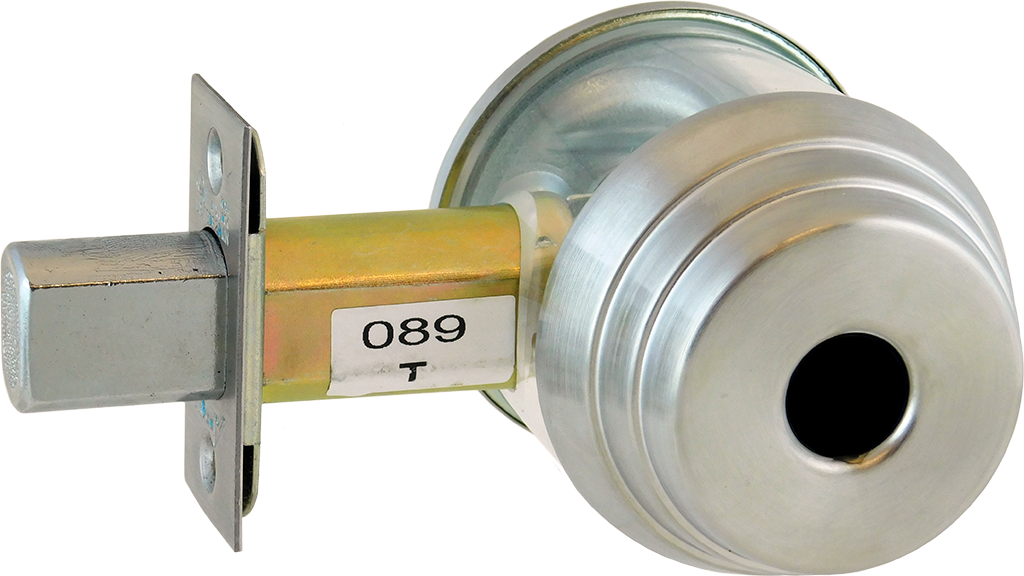

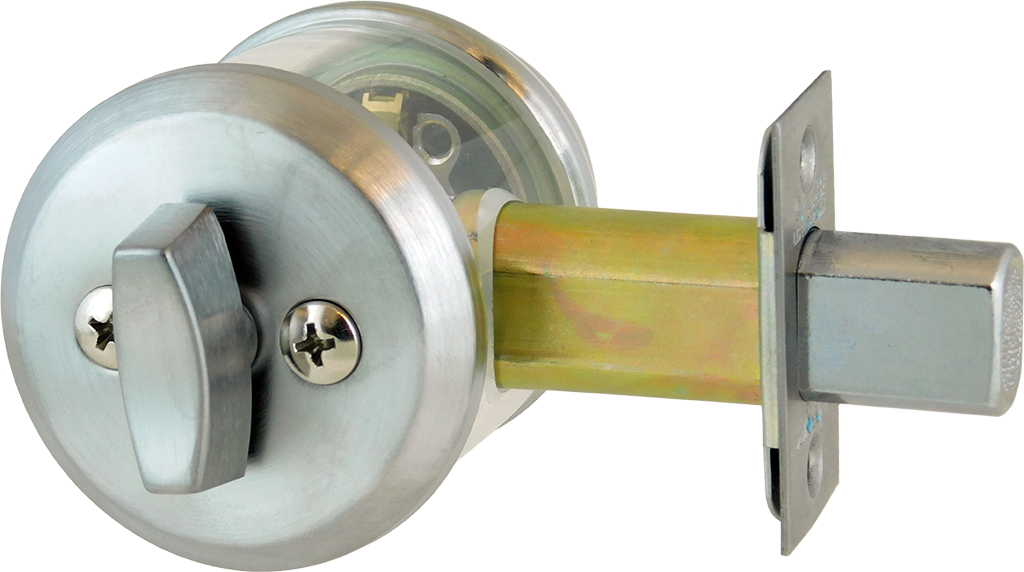

Arrow Lock E61-26D-LC-2 3/4 BS Single Cylinder Deadbolt, Less Cylinder, 2-3/4in Backset, Grade 2, Satin Chrome

Arrow Lock Company E61-26D-LC-2 3/4 BS Deadbolt Single Cylinder is a robust security solution designed for both residential and commercial applications. This Grade 2 deadbolt features a durable two-piece housing with a free-spinning outer ring that effectively prevents wrenching attempts, enhancing your door's security. The solid steel deadbolt has a 1-inch throw and includes a hardened, free-spinning steel pin insert, ensuring maximum resistance against tampering. Designed for doors measuring 1-3/8 inches to 1-3/4 inches thick, this deadbolt is versatile, accommodating backsets of 2-3/8 inches and 2-3/4 inches. It is supplied with concealed mounting screws and two 1/4-inch steel thru-bolts for added security. The E61 model is reversible, allowing for easy installation on either hand of the door. Certified to ANSI A156.5 standards and UL/cUL listed for use on 3-hour fire doors, this deadbolt meets rigorous safety requirements. It is equipped with a solid brass Arrow "A" keyway cylinder, drilled for six pins and pinned to five, and is available in a sleek satin chrome finish for a modern look. With its combination of strength, aesthetic appeal, and reliable performance, the Arrow Lock Company E61-26D-LC-2 is an ideal choice for those seeking superior security solutions.

Deadbolt Single Cylinder, Less Cylinder, 2-3/4in Backset, Grade 2, 626/US26D Satin Chrome

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws and security Features: that have made the E Series the most specified deadlock in its class.

Specifications:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Concealed mounting screws standard on double cylinder functions.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Backset: 2-3/8", 2-3/4"
• Deadbolt Fronts:
• 2-1/4" x 1" standard for 2-3/8" backset
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• Drive-in Deadbolts are available.
• Doors: 1-3/8" to 1-3/4" thick standard.
• Strikes: Supplied standard with the #346 wood frame strike.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Supplied less cores
• Will accept Best or Falcon type cores.

Certification:

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL an CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

Functions:

• E60: Exit
• E41: Single Cylinder
• E61: Single Cylinder
• DB61: Single Cylinder
• E42: Double Cylinder
• E62: Double Cylinder
• DB62: Double Cylinder
• E63: Single Cylinder
• E64: Classroom
• E71-IC: Single Cylinder with Concealed Mounting Screws (IC Only)
• E74-IC: Classroom with Concealed Mounting Screws (IC Only)

Finishes:

• 605/03 - Bright Brass
• 606/04 - Satin Brass
• 609/05A - Antique Brass
• 612/10 - Satin Bronze
• 613/10B - Dark Oxide Bronze, Oil Rubbed
• 619/15 - Nickel Plated
• 625/26 - Bright Chrome
• 626/26D - Satin Chrome

Features

• Concealed mounting screws standard on double cylinder functions.
• The #345 metal frame strike is optional.
• Handing: All functions are reversible.
• Will accept Best or Falcon type cores.
• 2-1/4" x 1-1/8" standard for 2-3/4" backset
• E41 and E42 low profile Deadbolts are supplied with 5-pin cylinders. (supplied with two brass keys.
• Deadbolt Fronts:
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5.
• Strikes: Supplied standard with the #346 wood frame strike.
• Cylinder Options: Accepts 6 or 7 pin, small format interchangeable cores.
• Drive-in Deadbolts are available.
• Thru-bolting: Supplied with two 1/4" steel thru-bolts.
• Backset: 2-3/8", 2-3/4"
• Available in Schlage CS keyway and other competitive keyways.
• 2-1/4" x 1" standard for 2-3/8" backset
• Doors: 1-3/8" to 1-3/4" thick standard.
• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching.
• Supplied less cores
