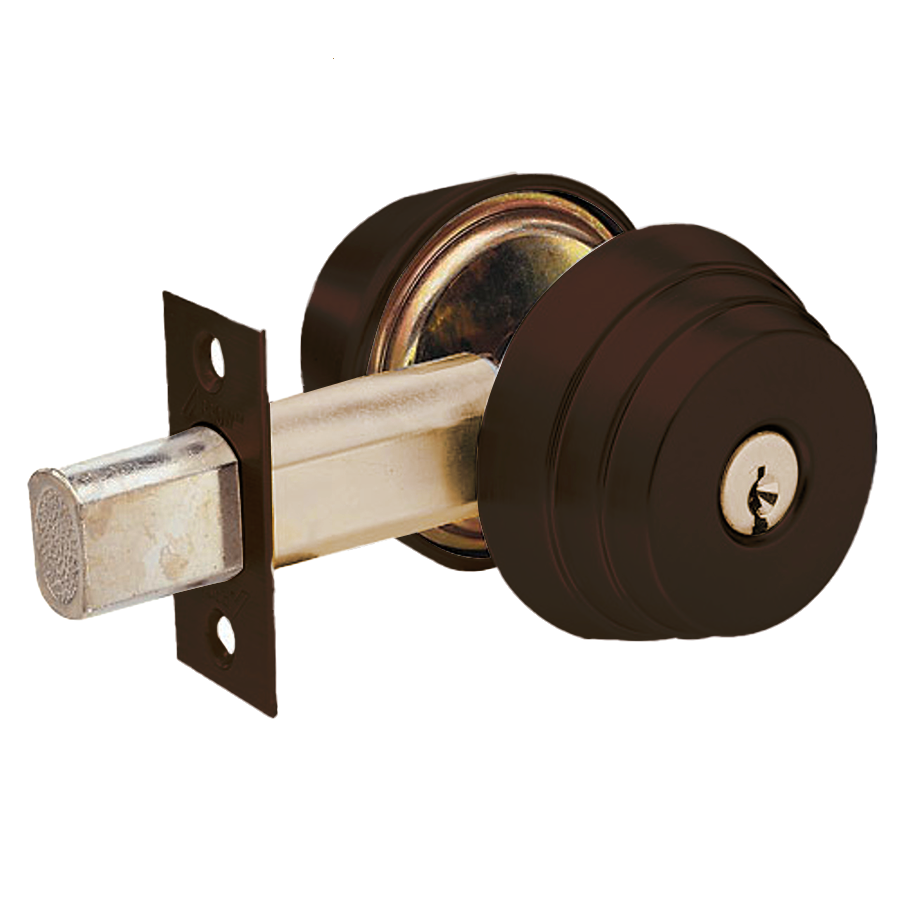

Arrow Lock E61-613E-CS-2 3/4 BS Schlage Deadbolt Single Cylinder, C Keyway, 2-3/4in, Grade 2, Oil Rubbed Bronze

Arrow Lock Company E61-613E-CS-2 3/4 BS Deadbolt Single Cylinder offers an exceptional combination of security and durability, making it a top choice for commercial applications. This Grade 2 deadbolt features a Schlage C keyway, ensuring compatibility with a wide range of key systems. Its robust construction includes a solid steel deadbolt with a hardened, free-spinning pin insert, which provides an added layer of resistance against tampering. Designed for ease of installation, the E61 deadbolt accommodates a backset of 2-3/4 inches and is suitable for doors ranging from 1-3/8 to 1-3/4 inches thick. The two-piece housing design incorporates concealed screws and a tamper-resistant rotating collar, further enhancing its security features. Additionally, the deadbolt boasts a generous 1-inch throw, ensuring robust locking performance. This model comes with a 1-year mechanical warranty, underscoring Arrow Lock Company's commitment to quality. It is also reversible for flexible handing, making it easy to fit into various door configurations. With its oil-rubbed bronze finish, the E61-613E-CS-2 combines functionality with aesthetic appeal, making it an excellent choice for both professionals and discerning homeowners looking to enhance their security solutions.

Deadbolt Single Cylinder, Schlage C Keyway, 2-3/4in Backset, Grade 2, 613/US10B Oil Rubbed Bronze

Arrow E series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws and security features that have made the E series the most specified deadlock in its class.

Features:

• Engineered for strength and durability in commercial applications
• Strength and security
• Tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws
• 1-year mechanical warranty

Specifications:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
• Thru-bolting: Supplied with two 1/4" (6.35mm) steel thru-bolts.
• Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm)
• Deadbolt Fronts: 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
• Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
• Strikes: Supplied standard with the #346 wood frame strike. The #345 metal frame strike is optional.
• Handing: All Functions are reversible.
• Cylinder, Standard: Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5. E41 and E42 low profile deadbolts are supplied with 5-pin cylinders. Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.
• Cylinder Options: Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best or Falcon type cores.
• Certifications: ANSI/BHMA A156.36, grade 2

Non-Cylinder Functions:

• E50: Thumbturn x Blank - Occupancy indicator
• E60: Thumbturn x Indicator
• ANSI No. E01112
• By thumbturn inside, emergency override key outside.

Single Cylinder Functions:

• E41: Cylinder x Thumbturn - By thumbturn inside; cylinder outside
• E61: Single Cylinder
• ANSI No. E0152
• By key outside and thumbturn inside
• E63: Cylinder x Blank
• ANSI No. E0162
• By key one side only; opposite side blank
• E64: Classroom
• ANSI No. E0172
• By key outside and by thumbturn inside
• E71-IC: Single Cylinder
• ANSI No. E0152
• By key outside and thumbturn inside
• E74-IC: Classroom
• ANSI No. E0172
• By key outside and by thumbturn inside

Double Cylinder Functions:

• E42: Double Cylinder - By key either side
• E62: Double Cylinder
• ANSI No. E0142
• By key either side

Finishes:

• 605/03 - Bright brass
• 606/04 - Satin brass
• 609/05A - Antique brass
• 612/10 - Satin bronze
• 613/10B - Dark oxide bronze, oil rubbed
• 619/15 - Nickel plated
• 625/26 - Bright chrome
• 626/26D - Satin chrome
