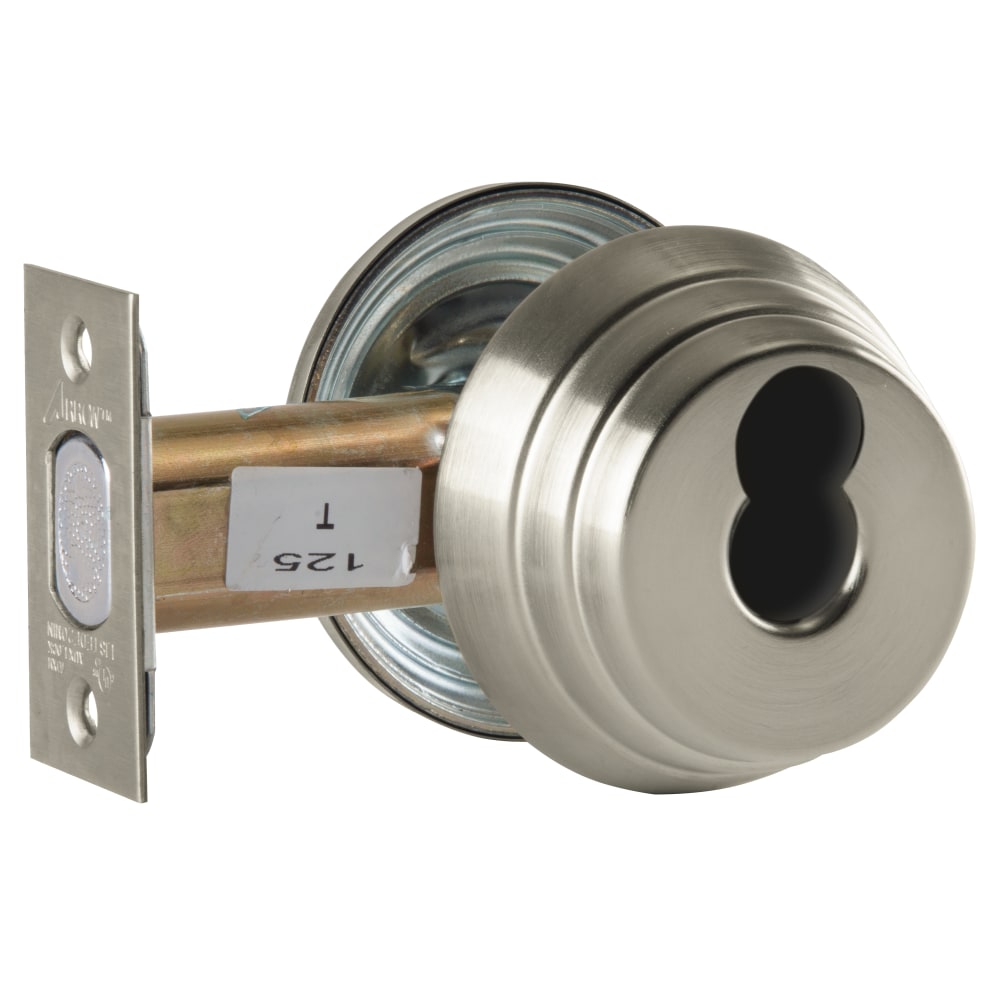

Arrow Lock E62 15 IC Grade 2 Deadbolt

Arrow E62 15 IC Grade 2 Deadbolt delivers robust security with its Grade 2 double cylinder design, making it an ideal choice for both commercial and residential applications. This deadbolt features a satin nickel plated clear coated finish that not only enhances durability but also complements various door styles. The E Series deadlocks are known for their exceptional value, quality, and long-lasting performance. Key security features include a tamper-resistant rotating wrench-proof collar, a solid steel deadbolt throw of 1 inch, and a hardened steel pin insert that fortify against forced entry. The concealed mounting screws ensure a clean installation that deters tampering. Designed for versatility, the E62 accommodates doors with a thickness ranging from 1-3/8 inches to 1-3/4 inches, and it includes reversible handing for easy installation. Supplied standard with the #395 strike pack, this deadbolt is compatible with both metal and wood doors. Additionally, it accepts solid brass cylinders and is prepped for interchangeable cores, offering flexibility for key management. With an ANSI A156.5 rating and Underwriters Laboratories (UL and CUL) listing, the Arrow E62 provides peace of mind while meeting industry standards for security and reliability. Enjoy a limited one-year warranty on this exceptional locking solution.

Grade 2 Deadbolt

Grade 2 Double Cylinder Deadlock, SFIC Prep Less Core, Satin Nickel Plated Clear Coated Finish, Field Reversible

Arrow E Series deadlocks are unsurpassed for value, quality and durability.

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.

Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:

• 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
• 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes: Supplied standard with #395 strike pack (metal and wood).

Handing: All functions are reversible.

Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.

Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Finish: US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.

• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
